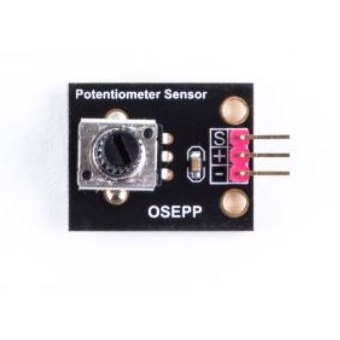

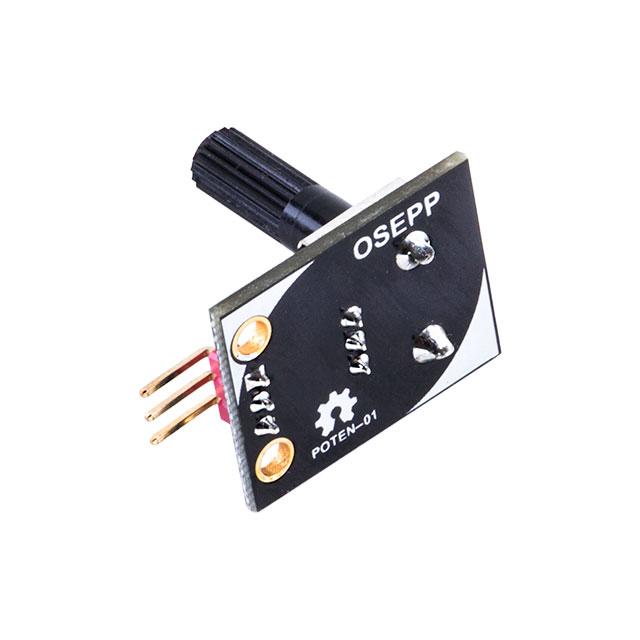

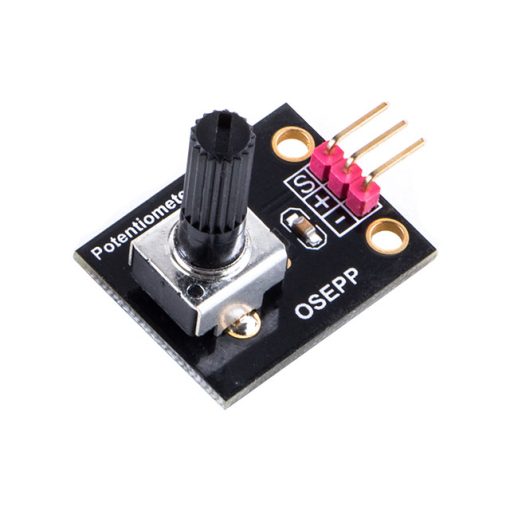

OSEPP POTEN-01 Potentiometer Module

OSEPP POTEN-01 Potentiometer Module

The OSEPP POTEN-01 Potentiometer Module is a precision rotary potentiometer breakout designed to provide adjustable analog input for a wide range of electronic and embedded projects. This module serves as a human-machine interface component that enables users to vary resistance and generate corresponding voltage changes that can be read by analog inputs on microcontrollers and development boards. With full compatibility for common platforms like Arduino, the module integrates seamlessly into prototyping environments and educational kits.

Features:

• Rotary potentiometer with a full 360-degree rotation angle (non-continuous).
• Provides analog voltage variation for microcontroller inputs.
• Compatible with 3.3 V and 5 V systems, including Arduino platforms.
• Easy integration into breadboards and project circuits.
• Simple human interface component for tuning and control.

Specifications:

Pin Configuration:

• S: Analog Signal Output.
• +: Power Supply (3.3V – 5V).
• -: Ground.

Applications:

• LED brightness and motor speed control.
• Audio volume adjustment in multimedia projects.
• Sensor threshold calibration and tuning.
• Educational experiments in analog electronics.
• User interface panels for interactive prototypes.

Package Include:

1x OSEPP POTEN-01 Potentiometer Module.

Documents:

• Schematic
• OSEPP Potentiometer Module Source Code & Tutorial Graphic
