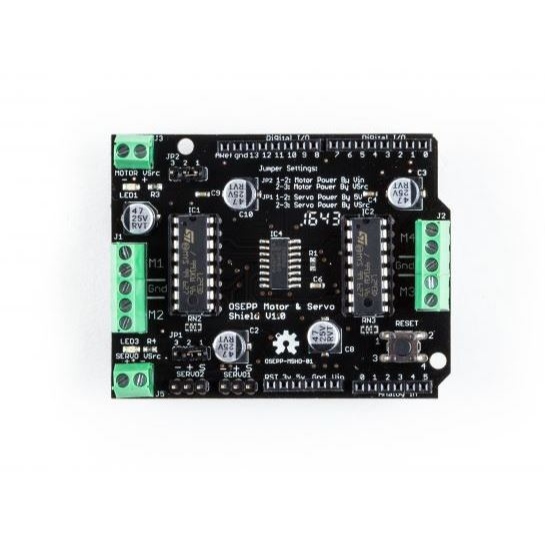

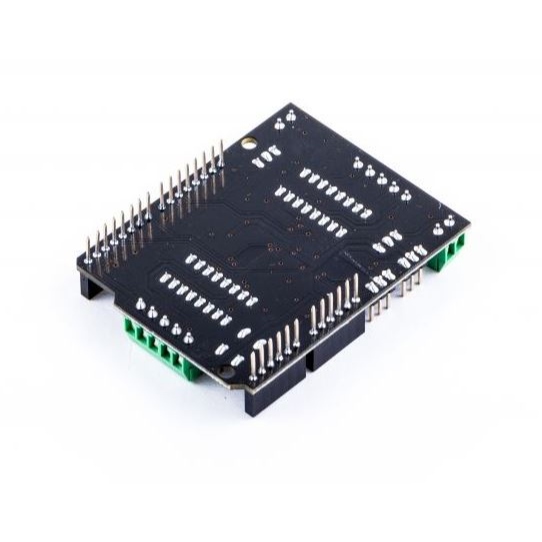

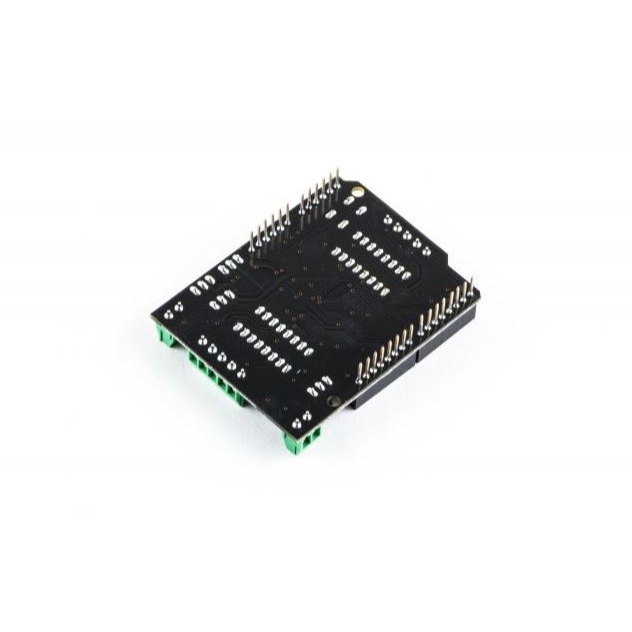

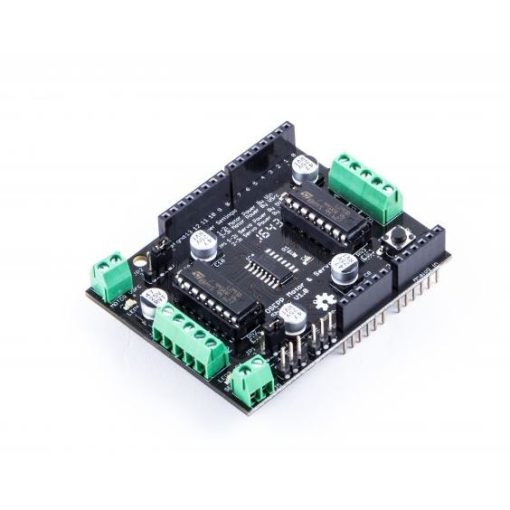

OSEPP SCSHD-01 Motor & Servo Shield
The OSEPP SCSHD-01 Motor & Servo Shield is designed to add motor and servo control capabilities to your Arduino projects. This shield is compatible with most Arduino boards and provides an easy way to control up to two DC motors and up to two servos. It simplifies motor control by allowing direct interfacing with the motors and servos, offering users a seamless and efficient solution for robotics, automation, and various motion-controlled applications. The shield features an integrated H-bridge circuit for motor control, ensuring precise and stable performance. Its design makes it a versatile choice for hobbyists, makers, and engineers.
Features:
- Mate with Arduino and Arduino compatible boards
- Provides connectors to support 2 servos.
- Servo power supply can be configured to source from the servo power terminal block or from the Arduino’s 5V pin.
- Support up to 4 bi-directional DC motors with individual 8-bit speed selection, and up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
- Motor power supply can be configured to source from the motor power terminal block or from the Arduino’s VIN pin. Support motors operating between 4.5V to 25V DC.
- Includes two L293D Quad H-Bridges chipset that can provide 0.6A per bridge (1.2A peak) with thermal shutdown protection, internal kickback protection diodes.
- Provides DIP sockets to support other pin compatible motor bridge chipset.
- Integrated pull down resistor to keep motor disable during start up.
- Individual LED indicator for motor power supply state and servo power supply state.
- Brings out the Arduino’s reset button to the top of the shield.
Specifications:
| Parameter | Value |
|---|---|
| Motor Voltage Range | 4.5-25VDC |
| Current per Bridge | 0.6A (1.2A peak) |
| Servo Support | 2 |
| DC Motor Support | 4 (bi-directional) |
| Stepper Motor Support | 2 (unipolar/bipolar) |
| Stepping Modes | Single coil, double coil, interleaved |
| Speed Selection | 8bit |
| Protection Features | Thermal shutdown, kickback diodes |
| Dimensions | 71x55mm |
Applications:
- Robotic platforms for wheeled or legged locomotion.
- Automated systems like CNC machines or 3D printers.
- Educational projects teaching motor control and PWM.
- Home automation devices with actuated components.
- Prototyping for RC vehicles or drones.
- Sensor-integrated feedback loops in smart gadgets.
- DIY electronics requiring precise motion control.
Package Include:
1x OSEPP SCSHD-01 Motor & Servo Shield.
