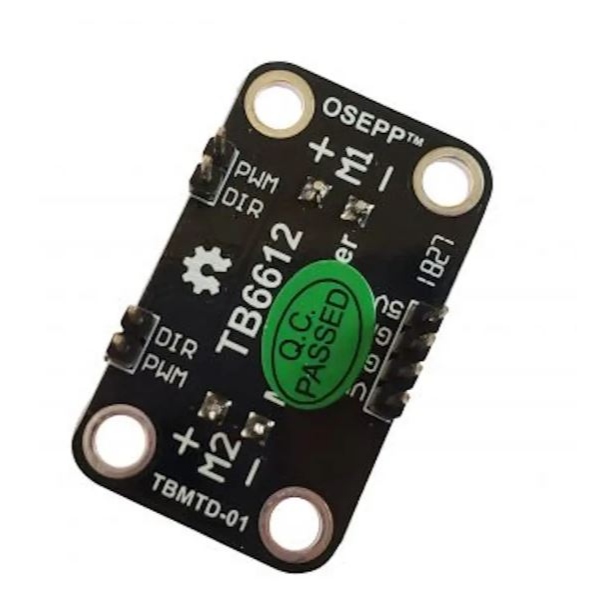

OSEPP TBMTD-01 TB6612 Motor Driver
The OSEPP TBMTD-01 TB6612 Motor Driver is a versatile and efficient motor driver module designed for controlling DC motors and stepper motors in various applications. It features the TB6612 integrated circuit, which provides robust and reliable control of motors with high efficiency. This motor driver module supports both forward and reverse rotation and allows for precise control of motor speed and direction. It is widely used in robotics, automation systems, and other electronics projects where precise motor control is required. The TB6612 Motor Driver operates at a voltage range suitable for small to medium-sized motors, making it ideal for educational kits, prototypes, and DIY electronics projects. The module is compact and easy to integrate into systems, providing a straightforward solution for motor control.
Features:
- TB6612PNG motor driver IC
- Operating Voltage: 6V – 12V
- Constant current: 1.2A / 3.2A (peak)
- Direct plug-in to OSEPP Uno Max (no cables required)
- Over-current protection
- Control mode: 2 I/O (direction and PWM speed regulation)
Specifications:
| Parameter | Value |
|---|---|
| Operating Voltage (Motor) | 6VDC-12VDC |
| Logic Voltage | 5VDC |
| Continuous Current per Channel | 1.2A |
| Peak Current per Channel | 3.2A |
| Control Inputs | PWM, Direction (per motor) |
| Standby Current | Low (standby mode) |
| PWM Frequency Support | Up to suitable for motor control |
Applications:
- Educational robotics kits and STEM projects.
- Prototyping small robotic actuators and chassis.
- Hobbyist DIY automation systems.
- Compact motor control for line-following or obstacle-avoiding robots.
- Battery-powered portable devices requiring simple motor drive.
Package Include:

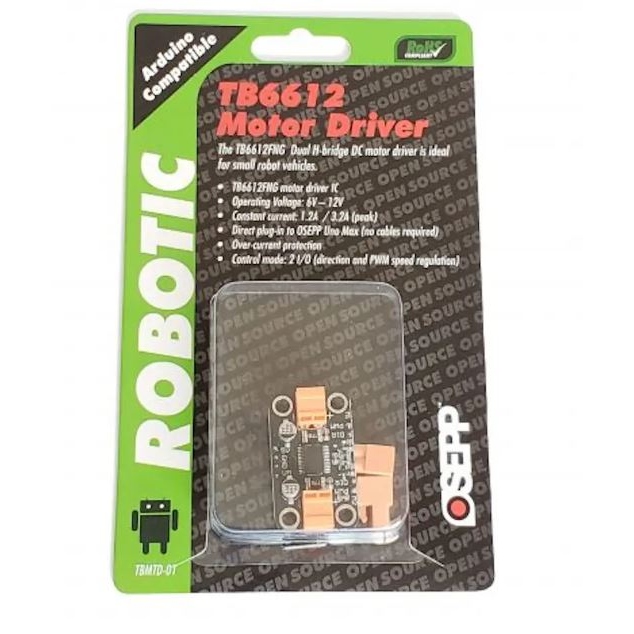

- 1x OSEPP TBMTD-01 TB6612 Motor Driver
- 2x terminal connections
