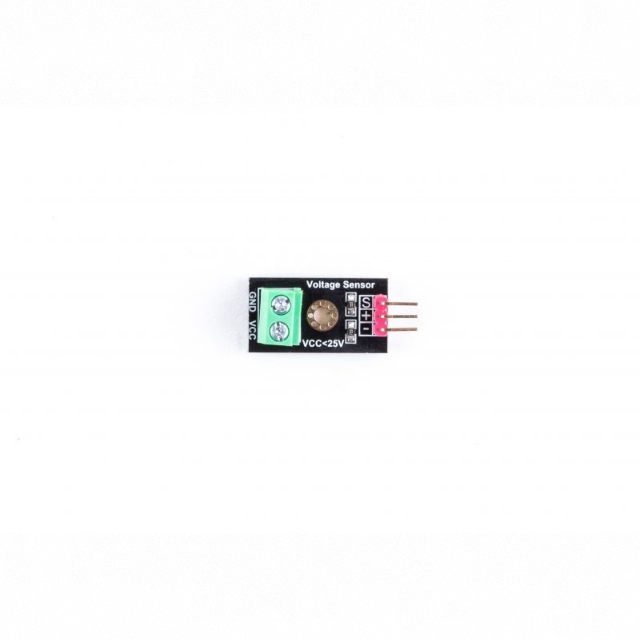

OSEPP VOLT-01 Voltage Sensor Module 0.0245V to 25V
The OSEPP VOLT‑01 Voltage Sensor Module is a compact analog voltage measurement module designed for use with Arduino and other microcontroller platforms. This module allows precise voltage monitoring within a broad range from 0.0245 V up to 25 V, enabling developers to integrate supply voltage sensing directly into embedded electronics projects.
Features:
- Measures DC voltages from 0.0245V to 25V with a 5:1 divider ratio for safe analog output.
- Compatible with Arduino and other microcontrollers via standard analog input.
- Operates on 3.3VDC to 5VDC supply for flexible integration.
- Analog input
Specifications:
| Parameter | Value |
|---|---|
| Supply Voltage | 3.3-5VDC |
| Input Voltage Range | 0.0245-25VDC |
| Output Type | Analog(0-5V) |
| Voltage Divider Ratio | 5:1 |
| Resolution (with 10-bit ADC) | 0.0244V |
| Interface | 3-pin |
| Dimensions | 27×14.5mm |

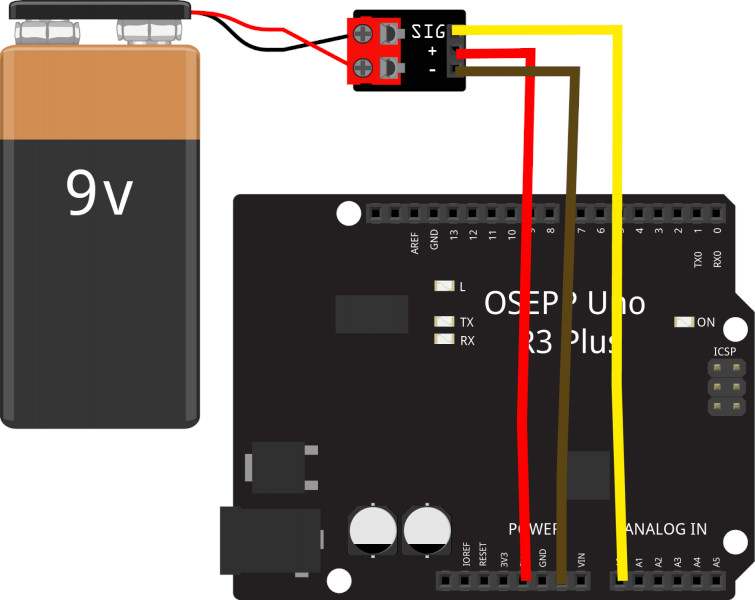

Pin Configuration:
- +: VCC (3.3-5VDC).
- –: GND.
- S: Signal (analog output).
Applications:
- Battery voltage monitoring in portable devices and drones.
- Power supply diagnostics in embedded systems.
- Solar panel output tracking for renewable energy projects.
- Educational demonstrations of voltage measurement and ADC principles.
- Overvoltage protection circuits in automation setups.
Package Include:

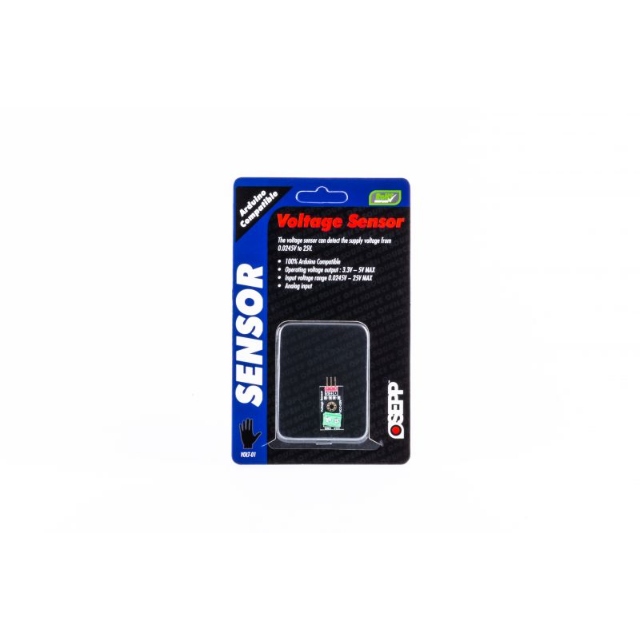

1x OSEPP VOLT-01 Voltage Sensor Module.
