The OV7670 Camera Module is a compact CMOS VGA image sensor module capable of capturing 640×480 pixel resolution images. Designed to be compatible with Arduino and other microcontroller platforms, this camera module provides raw and processed color image outputs suitable for embedded vision projects. It operates at a single 3.3V supply with a built-in regulator, and features a high-quality F1.8/6mm lens, ensuring good imaging quality. The sensor supports multiple output color formats, including Raw RGB, RGB565/555, YUV 4:2:2, and YCbCr, making it flexible for diverse image processing needs.

Features:

• High sensitivity suitable for illumination applications
• Low voltage suitable for embedded applications
• Standard SCCB interface compatible with I2C interface
• RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output format
• Supports VGA, CIF, and from a variety of sizes CIF to 40×30
• VarioPixel sub-sampling mode
• ISP has a compensation function to eliminate noise and dead pixels
• Support for image scaling
• Compensation for loss of optical lens
• 50/60Hz automatic detection
• Saturation automatically adjust (UV adjustment)
• Automatically adjust edge enhancement
• Automatically adjust the noise reduction
• Automatically affect the control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light stripes, automatic black level calibration image quality control including color saturation, hue, gamma, sharpness.

Specifications:

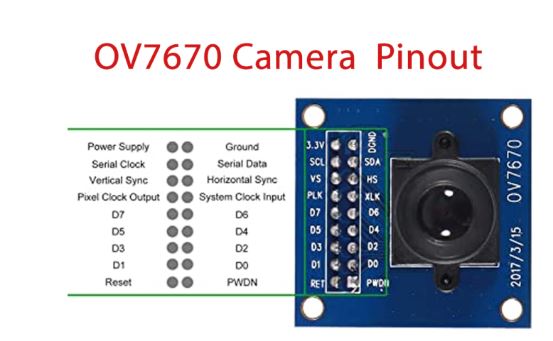

Pin Configuration:

Applications:

• Embedded vision systems and robotics.
• Surveillance and low‑cost camera integrations.
• Educational electronics projects (Arduino, STM32, FPGA).
• Computer vision prototypes and machine learning sensor input.
• Mobile devices, toys, wearable cameras and IoT visual modules

Package Include:

1x OV7670 Camera Module

Documents:

• OV7670 Datasheet
• Instructables for OV7670 camera module tutorial with arduino
