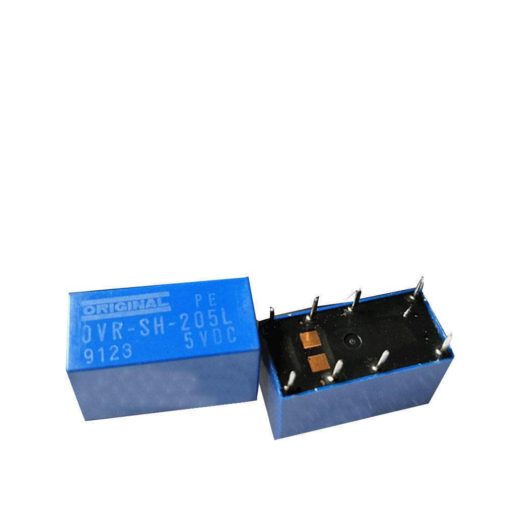

OVR-SH-205L Signal Relay 5VDC 1A 125VAC 2 Poles Non Latching 8 Pin

Features:

• The OVR-SH-205L is a compact and reliable signal relay designed for use in low-power switching applications.
• It features a non-latching mechanism with a 5V DC coil voltage and is built to handle signal-level loads.
• The relay is equipped with 2 poles, making it ideal for a wide range of applications such as telecommunications, automation systems, and other electronic circuits requiring precise control.
• Operates at 5V DC for efficient low-power triggering.
• Double Pole Double Throw (DPDT) configuration, allowing versatile switching options.
• Can handle up to 1A at 125VAC or 2A at 30VDC, making it suitable for signal and low-power load switching.
• Returns to its default state when the actuating voltage is removed, ensuring consistent operation.
• Small form factor to save space on PCBs and enable high-density mounting.
• Standard 8-pin layout for easy integration into sockets or soldering onto PCBs.
• High isolation between coil and contacts, ensuring safe and reliable operation.
• Long operational life with excellent mechanical and electrical endurance.
• Suitable for telecommunications, signal routing, instrumentation, and control circuits.

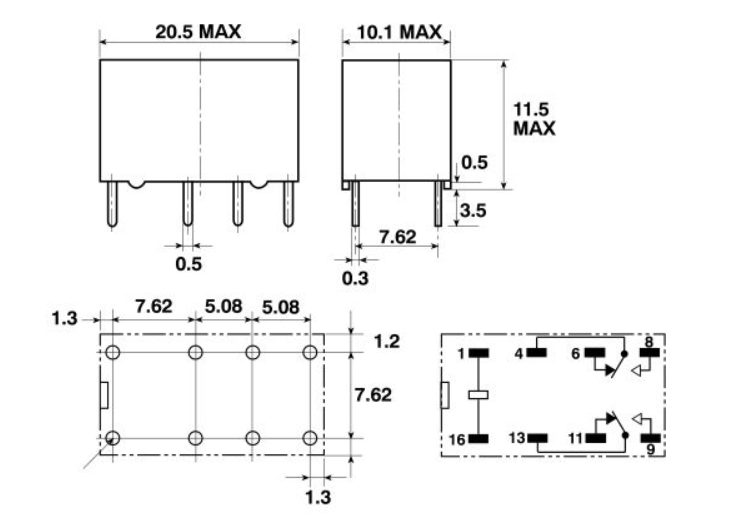

Pin Assignments:

Specifications:

Applications:

• Home Automation and Consumer Electronics.
• Industrial Control Systems.
• Telecommunications.
• Test and Measurement Equipment.
• Automotive Applications.
• Security Systems.
