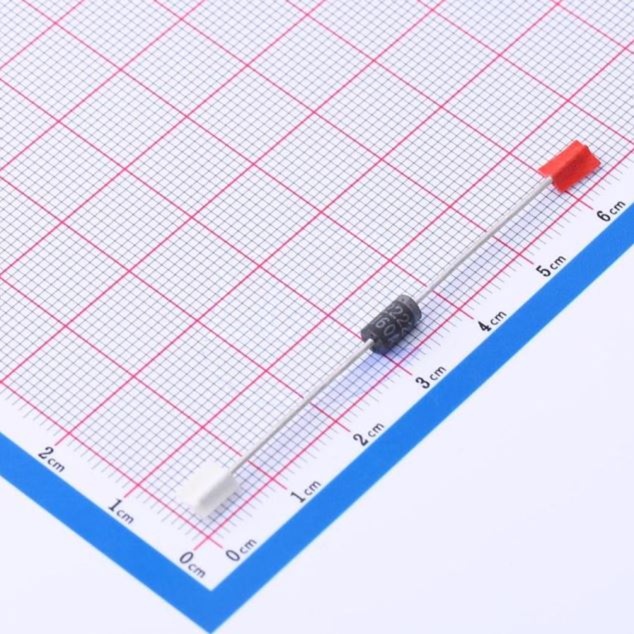

P6KE160 TVS Diode Unidirectional 219V 2.8A DO-15
This unidirectional Transient Voltage Suppression (TVS) diode provides robust overvoltage protection for sensitive electronic systems. Engineered to safeguard circuits against electrostatic discharge (ESD), inductive load switching, and lightning-induced transients, it clamps voltages up to 219V while handling peak pulse currents of 2.8A. The DO-15 package ensures reliable thermal performance and mechanical stability in demanding environments.
Features:
- Unidirectional clamping for DC circuit protection.
- 600W peak pulse power dissipation capability.
- Ultra-fast response time (<1.0ps) for transient suppression.
- Low leakage current (<5μA) during normal operation.
- DO-15 package with axial leads for secure PCB mounting.
Specifications:
| Parameter | Value |
|---|---|
| Reverse Standoff Voltage | 136V |
| Breakdown Voltage Min | 152V |
| Breakdown Voltage Max | 168V |
| Clamping Voltage Max | 219V |
| Peak Pulse Current | 2.8A |
| Peak Pulse Power | 600W |
| Package Type | DO-204AC(DO-15) |
| Operating Temperature | -55°Cto+175°C |
| Leakage Current | 1µA |
| Response Time | 1ps |
Applications:
- Protection of sensitive electronics in power supplies and converters.
- Surge suppression in telecommunications and networking equipment.
- ESD and transient protection in automotive control modules.
- Overvoltage safeguarding in industrial automation systems.
Package Include:
1x P6KE160 TVS Diode Unidirectional 219V 2.8A DO-15.
