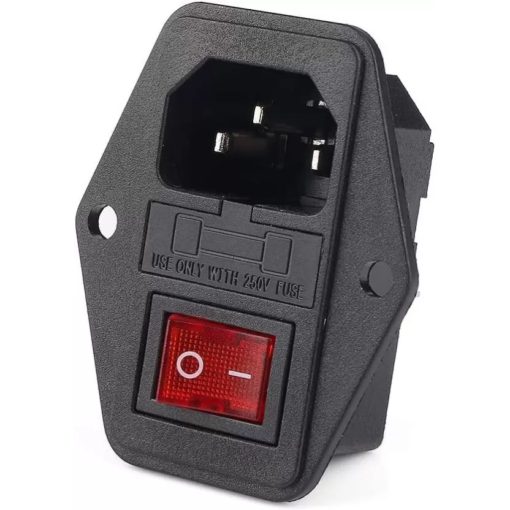

Panel Mount AC Power Male Socket With Fuse Holder And ON/OFF Red Light Switch 250VAC 10A 3Pin (Version 2)

Panel Mount AC Power Male Socket With Fuse Holder And ON/OFF Red Light Switch 250VAC 10A 3Pin (Version 2)

The Panel Mount AC Power Male Socket With Fuse Holder And ON/OFF Red Light Switch 250VAC 10A 3Pin (Version 2) is a sophisticated power entry module engineered for modular flexibility in professional electronic assemblies. Operating at a maximum rating of 250VAC and 10A, this 3-pin IEC320 C14 inlet ensures a secure, grounded connection for a wide range of industrial equipment. This specific version features a modular chassis design where the illuminated red rocker switch is independently removable, facilitating easier maintenance and customized wiring configurations. It incorporates a dedicated fuse holder for 5x20mm glass fuses, providing critical overcurrent protection for sensitive internal circuitry. The housing is constructed from high-grade flame-retardant materials, ensuring thermal stability and long-term durability in demanding environments. Lateral-facing terminals on the switch component streamline the connection process within crowded enclosures. This integrated solution combines power input, safety fusing, and manual control into a single, space-efficient footprint.

Features

• Modular Chassis Design. This structure allows the rocker switch to be independently removed or replaced, providing greater flexibility for maintenance and customization.
• High Load Capacity of 250VAC and 10A. The robust electrical rating ensures the module can safely power industrial machinery and high-performance computing equipment.
• Integrated 5x20mm Fuse Holder. A built-in compartment offers immediate overcurrent protection, which shields internal circuitry from electrical faults without requiring external components.
• Illuminated Red Rocker Switch. The inclusion of a red light provides a clear, high-visibility indicator of the power status, significantly improving user safety and operational awareness.
• Standard 3-Pin IEC320 C14 Inlet. Global compatibility is guaranteed through this standardized interface, allowing the use of universal power cords across different regions.
• Lateral Switch Terminals. The specific terminal orientation in Version 2 facilitates easier access for individual wiring of the switch and fuse components.

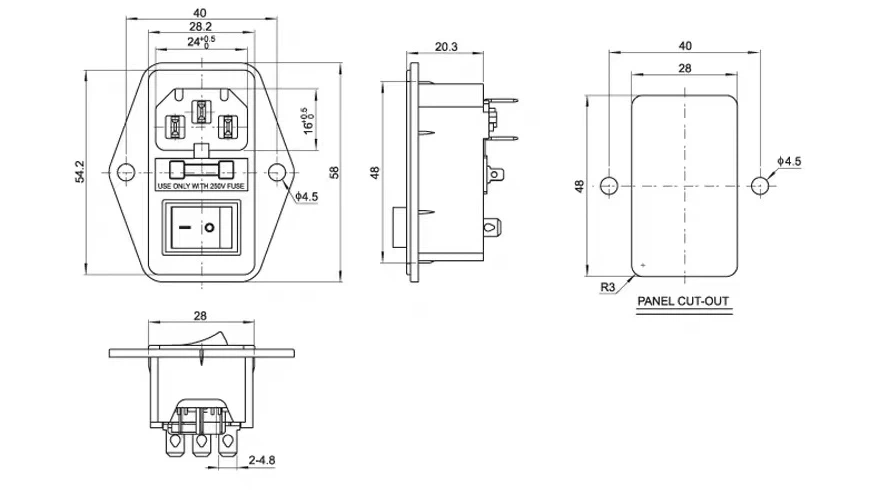

Dimensions

Specifications

Applications

• Custom Industrial Control Enclosures.
• Professional 3D Printing Stations.
• Modular CNC Controller Boxes.
• Server and Networking Chassis.
• Laboratory Power Supplies.
• High-End Audio Amplifiers.
• Medical Diagnostic Instruments.
• Automated Testing Equipment.

Package Contents

• 1 x   AC Power Socket Male Panel Mount.
• 1 x   VON/OFF Red Light Switch 250VAC 10A 3Pin.
• 1 x   5×20mm Size Fuse Holder.

Note

• This product ships without fuse.
