PC817SC 35V 5kV 50mA 0.1V@20mA,1mA 1 6V 1.2V SOP-4 Transistor, Photovoltaic Output Optoisolators SMD
The PC817SC is a high-reliability surface-mount optocoupler designed to provide electrical isolation between input and output circuits while maintaining efficient signal transfer. It integrates an infrared emitting diode optically coupled to a phototransistor, enabling safe communication between low-voltage control circuits and high-voltage power systems.
Features:
- High isolation voltage up to 5kVrms for superior electrical protection.
- Maximum collector-emitter voltage of 35V for reliable switching.
- Collector current capability up to 50mA.
- Low forward voltage of approximately 1.2V for efficient operation.
- Low saturation voltage of 0.1V@20mA,1mA.
- Phototransistor output with stable current transfer characteristics.
Specifications:
| Parameter | Value |
|---|---|
| Number of Channels | 1 |
| Isolation Voltage | 5000Vrms |
| Collector-Emitter Voltage | 35V |
| Emitter-Collector Voltage | 6V |
| Collector Current | 50mA |
| Forward Current | 50mA |
| Peak Forward Current | 1000mA |
| Forward Voltage | 1.2V |
| Reverse Voltage | 6V |
| Collector-Emitter Saturation Voltage | 0.1V |
| Power Dissipation (Input) | 70mW |
| Power Dissipation (Output) | 150mW |
| Total Power Dissipation | 200mW |
| Operating Temperature | -30°C to 100°C |
| Package Type | SOP-4 |
Pin Configuration:
| Pin Number | Pin Name | Function/Description |
|---|---|---|
| 1 | Anode | Input LED anode. |
| 2 | Cathode | Input LED cathode. |
| 3 | Emitter | Output phototransistor emitter. |
| 4 | Collector | Output phototransistor collector. |

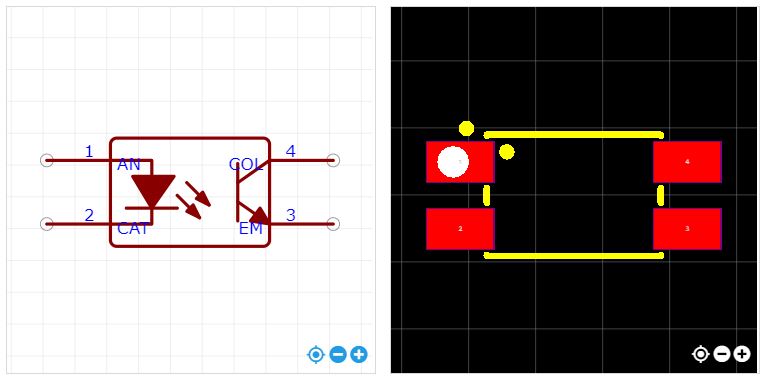

Foot print:
Applications:
- Signal isolation in programmable controllers.
- Interface between microcontrollers and high-voltage circuits.
- Switching power supplies for feedback control.
- Industrial automation and control systems.
- Consumer electronics for noise suppression.
- Telecommunication equipment for galvanic isolation.
- Battery management systems in portable devices.
Package Include:
1x PC817SC SOP-4 Transistor, Photovoltaic Output Optoisolators SMD
