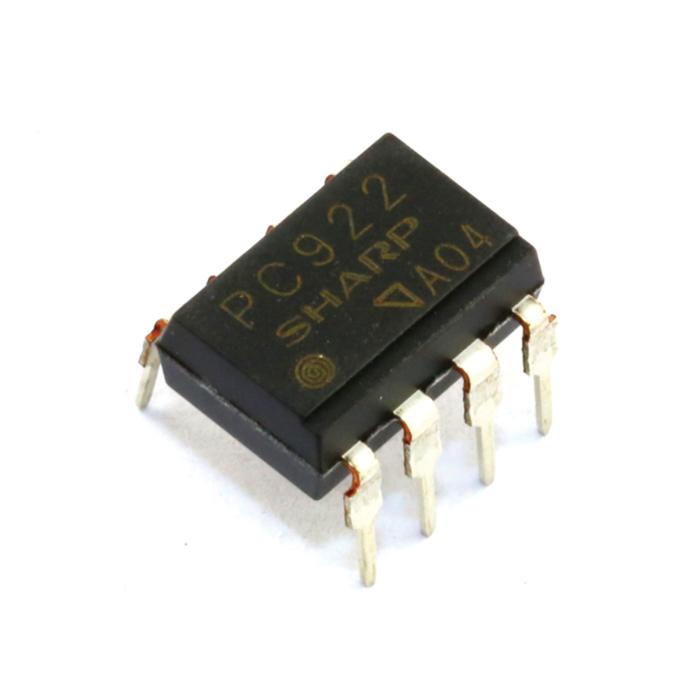

PC922 Optocoupler Dip-8 IC
The PC922 is a high‑power OPIC (Optical IC) photocoupler produced by Sharp Corporation. It integrates an infrared LED input and dual outputs (O1, O2) including a built‑in base amplifier, making it suitable for high‑current drive such as inverter applications. The device features extremely high isolation of 5 000 Vrms between the input LED and the outputs, which ensures robust protection in electrically noisy or high‑voltage industrial environments.
Features:
- Built‑in base amplifier for inverter drive.
- High power output: O1 up to 0.5 A (DC) and O2 up to 2.0 A (pulse) capability.
- High isolation voltage between input and output: 5 000 Vrms.
- High noise reduction type.
- Fast response: tPLH, tPHL up to 5 µs maximum.
- High sensitivity: input threshold current (IfLH) maximum ~3 mA.
Specifications:
| Parameter | Value |
|---|---|
| Forward Current (IF) | 25mA |
| Reverse Voltage (VR) | 6V |
| Supply Voltage (VCC) | 18V |
| O1 Output Current (IO1) | 0.5A |
| O1 Peak Output Current (IO1P) | 1.0A |
| O2 Output Current (IO2) | 0.6A |
| O2 Peak Output Current (IO2P) | 2.0A |
| O1 Output Voltage (VO1) | 18V |
| Output Power Dissipation (PO) | 500mW |
| Total Power Dissipation (Ptot) | 550mW |
| Isolation Voltage (Viso) | 5000Vrms |
| Operating Temperature Range | -20°Cto+80°C |
| Storage Temperature Range | -55°Cto+125°C |
| Forward Voltage (VF1) | 1.1Vto1.4V |
| Low→High Threshold Input Current (IFLH) | 0.3mAto3.0mA |
| Propagation Delay Time (tPLH/tPHL) | 5µs |
| Rise Time (tr) | 1µs |
| Fall Time (tf) | 1µs |
Pin Configuration:
Applications:
- Inverter‑controlled air conditioners.
- Small‑capacitance general‑purpose inverters.
- Motor drive modules and high‑power switching interfaces.
- Industrial control PCBs requiring isolation between logic and power stages.
- Smart appliance control boards with high isolation and drive requirements.
Package Include:
1x PC922 Optocoupler Dip-8 IC
