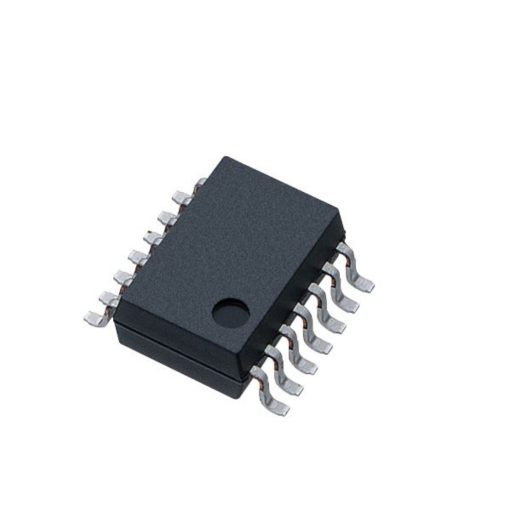

PC928 Optocoupler SMD IC
The PC928 Optocoupler SMD IC is a high‑performance, single‑channel optical isolator manufactured in a compact surface‑mount (14‑pin half‑pitch) package. It integrates an infrared emitting diode (IRED) on the input side, optically coupled to a dedicated OPIC (optical integrated circuit) on the output side, and includes a built‑in short‑circuit protection circuit — making it especially suitable for inverter driving of IGBT or MOSFET modules.
Features:
- 14-pin half lead pin pitch package with 1.27mm lead spacing.
- Double transfer mold package ideal for flow soldering.
- Built-in IGBT shortcircuit protector circuit.
- Built-in direct drive circuit for IGBT with peak output current up to 0.4A.
- High isolation voltage of 4.0kVrms.
Specifications:
| Parameter | Specification |
|---|---|
| Manufacturer | SHARP |
| Package | SOIC-14 (Half-pitch, 1.27mm lead pitch) |
| Load Voltage | 35V |
| Power Dissipation | 550mW |
| Output Current | 100mA (Continuous) / 400mA (Peak) |
| Low Level Delay Time | 2µs (max) |
| High Level Delay Time | 2µs (max) |
| Voltage – Forward (Vf) | 1.2V (typ) |
| Voltage – Supply | 15V ~ 30V (Recommended) / 35V (Absolute Max) |
| Operating Temperature | -25℃ ~ +80℃ |
| CMTI (kV/µs) | 1.5 kV/µs (min) |
| Number of Channels | 2 |
| Input threshold current | 7mA (max) |
| Isolation Voltage (Vrms) | 4kV |
| Input Type | DC |
| Reverse Voltage | 6V |
| Rise/Fall Time | 0.5µs (max) |
| Key Feature | Built-in IGBT Short-Circuit Protection |
Applications:
- Inverter systems for IGBT control.
- Power conversion equipment requiring gate drive and protection.
- Motor drives with overcurrent safeguarding.
- Industrial power supplies.
- Renewable energy systems like solar inverters.
Package Include:
1x PC928 Optocoupler SMD IC
