PCB Prototype Board – Vero Board FR-2 Splitted Breadboard 9*14.5 Cm

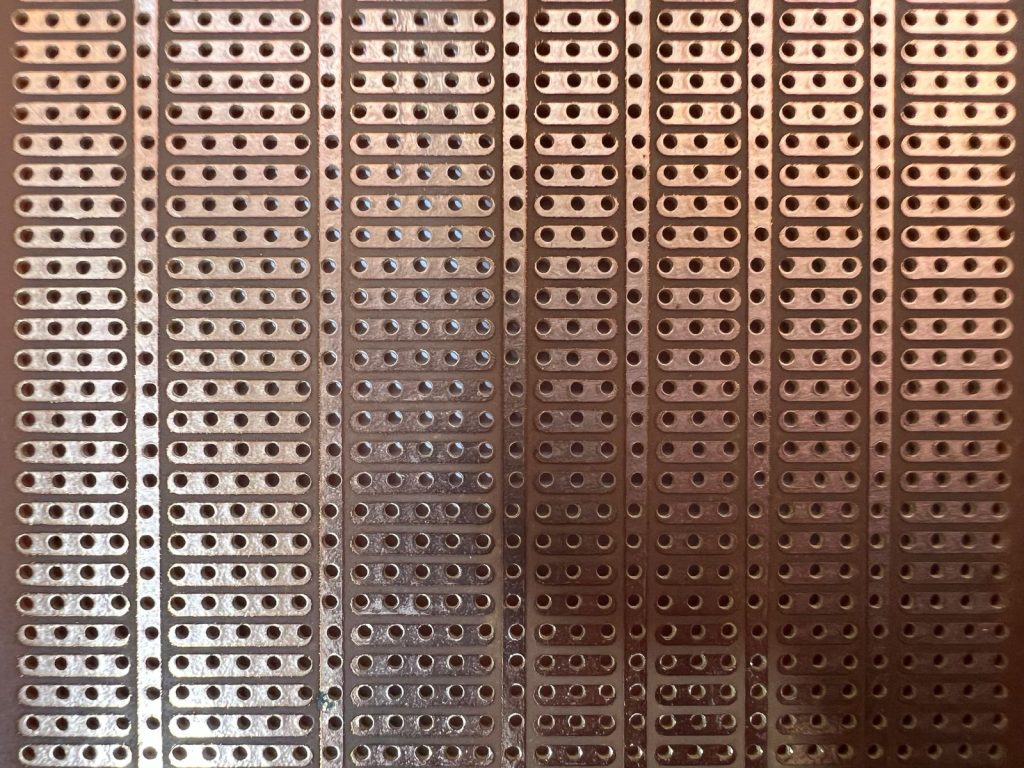

This FR-2 split-hole vero board uses a segmented copper pad layout that divides holes into small isolated groups, helping simplify circuit routing and minimize accidental short circuits. It offers more control than continuous strip boards while remaining easier to work with than fully dotted boards.
With a practical 9×14.5 cm size, the board supports standard 2.54 mm pitch through-hole components and can be cut or adapted for custom designs. It is well suited for prototyping, educational use, and DIY electronics projects requiring neat and reliable soldered connections.
Features:
- Split-hole copper pad layout.
- Improved signal isolation.
- Easier routing with fewer track cuts.
- Supports through-hole components.
- Easy to solder and modify.
- Cost-effective prototyping solution.
Specifications:
| Parameter | Value |
|---|---|
| Board Type | Vero / Prototype Board |
| Material | FR-2 (Phenolic) |
| Copper Layout | Splitted hole pads |
| Board Size | 9 × 14.5 cm |
| Hole Pitch | 2.54 mm (0.1 inch) |
| Mounting Type | Through-hole |
Applications:
- Electronic circuit prototyping.
- Arduino and development projects.
- Educational electronics labs.
- DIY and hobby electronics.
- Small custom PCB builds.
Packages:
- 1x PCB Prototype Board – Vero Board FR-2 Splitted Hole 9*14.5 Cm.
