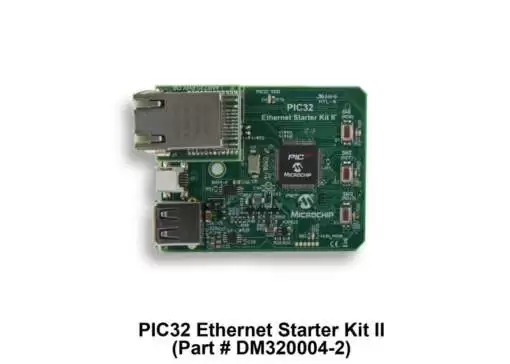

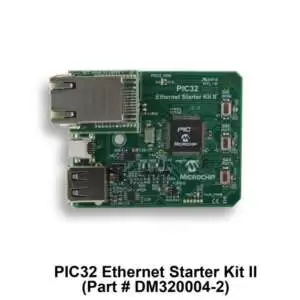

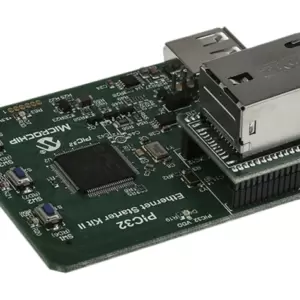

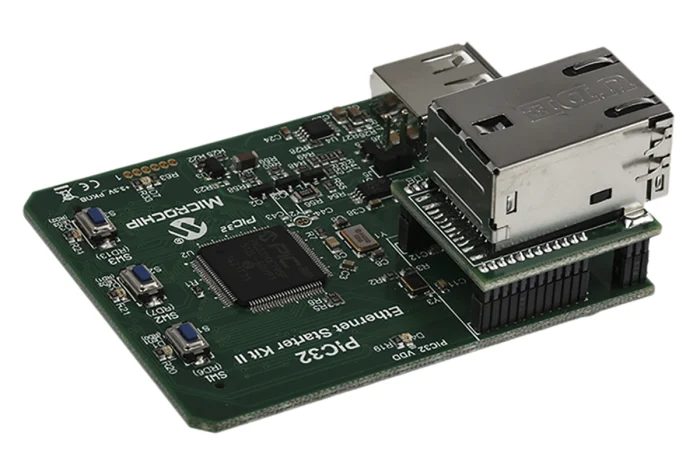

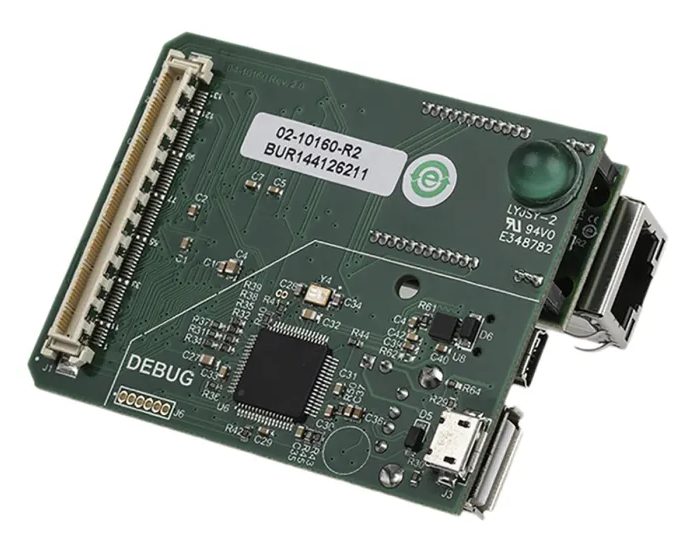

PIC32 Ethernet Starter Kit II

3,500.00 EGP

Buy Now
Availability: In Stock
SKU:5367907849732

Overview

The PIC32 Ethernet Starter Kit II provides the easiest and lowest-cost method to experience 10/100 Ethernet development with PIC32 microcontrollers. Combined with Microchip’s free TCP/IP software, this kit gets your project running quickly. The PIC32 microcontroller has an available CAN 2 0b peripheral and USB host/device/OTG. This starter kit features a socket that can accommodate various 10/100 Ethernet transceiver (RJ-45) PHY Daughter Boards for prototyping and development.

Write Code
  • Free MPLAB IDE v8.43 or newer
  • Free MPLAB C Compiler for PIC32 with no code size limit
  • Example project files for Ethernet and USB applications
Program Memory
  • Integrated programmer – all you need is the included USB Cable
  • Program and verify a full 512k image in less than 9 seconds
Debug
  • Integrated debugger – all you need is the included USB cable
  • Full C source-based debugging in MPLAB IDE
Execute Code
  • PIC32 running at 80 MHz with 512K Flash, 128K RAM, 8 ch. DMA + 8 ch. DMA dedicated to Ethernet, CAN and USB
  • USB powered board

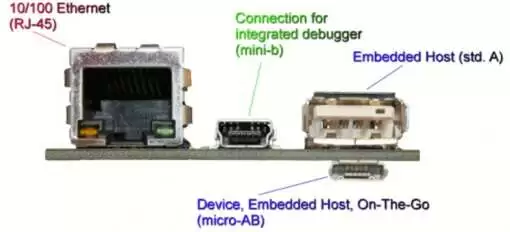

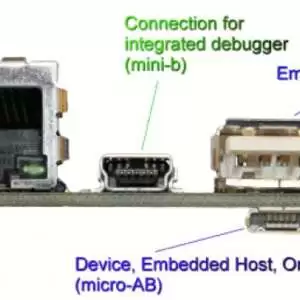

  • USB and Ethernet connectors, user switches, and LEDs
Customize
  • Expansion connector enables addition of Microchip’s PIC32 expansion boards or create your own
  • Majority of MCU signals are present on the connector [Hirose: FX10A-120P/12-SV1(71)]

Ethernet PHY Daughter Boards compatible with PIC32 Ethernet Starter Kit II are listed below
LAN8720A PHY Daughter Board (AC320004-3)
LAN9303 PHY Switch Daughter Board (AC320004-4)

FOR DEMONSTRATION SOFTWARE, PLEASE VISIT MPLAB HARMONY SOFTWARE FRAMEWORK
All Application Notes

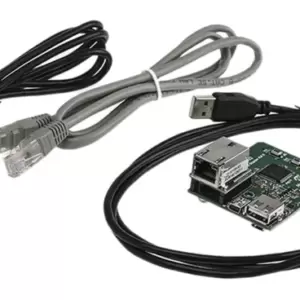

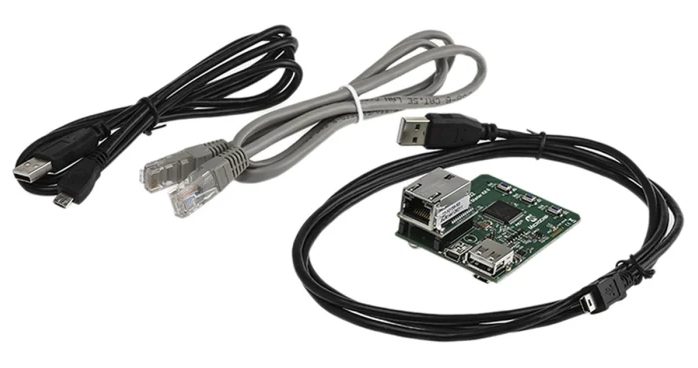

Package Contents
  • PIC32 Ethernet Starter Board
  • Standard A to mini B cable for debugger
  • Standard A to micro B cable for USB application development
  • Ethernet cable
