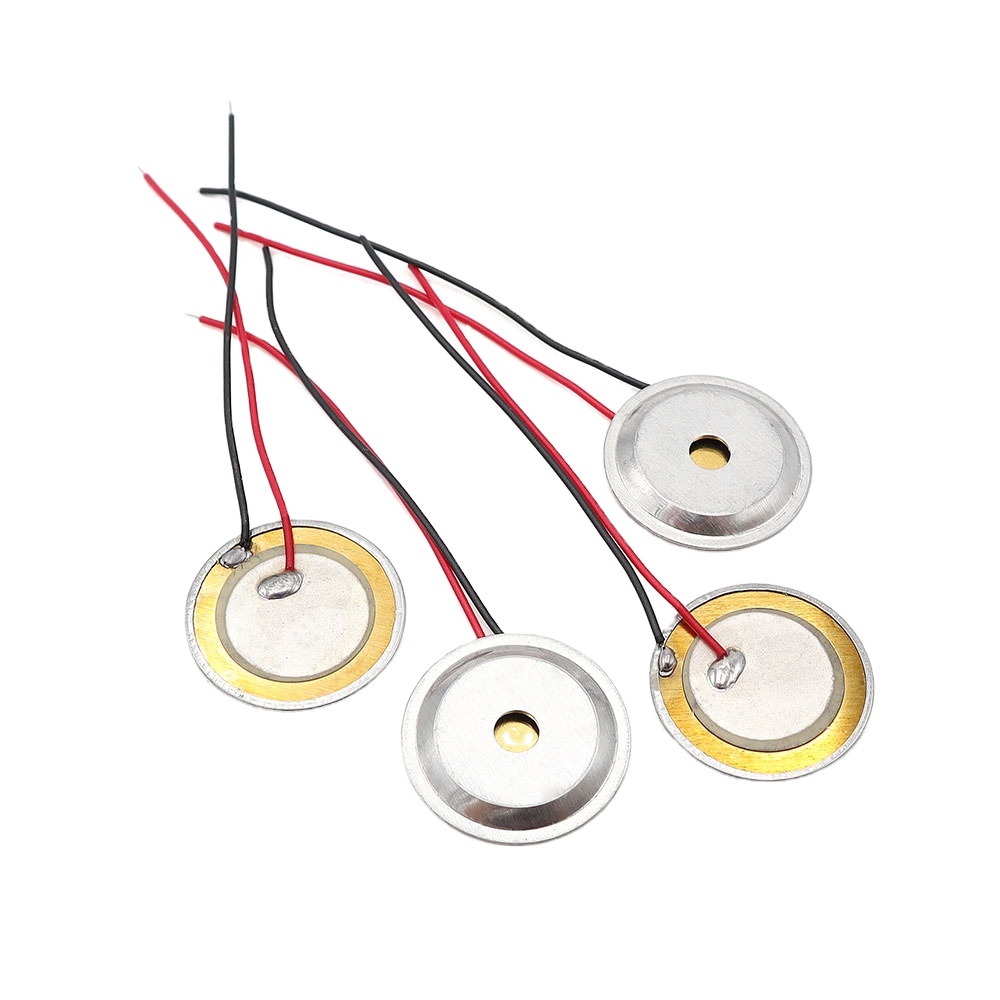

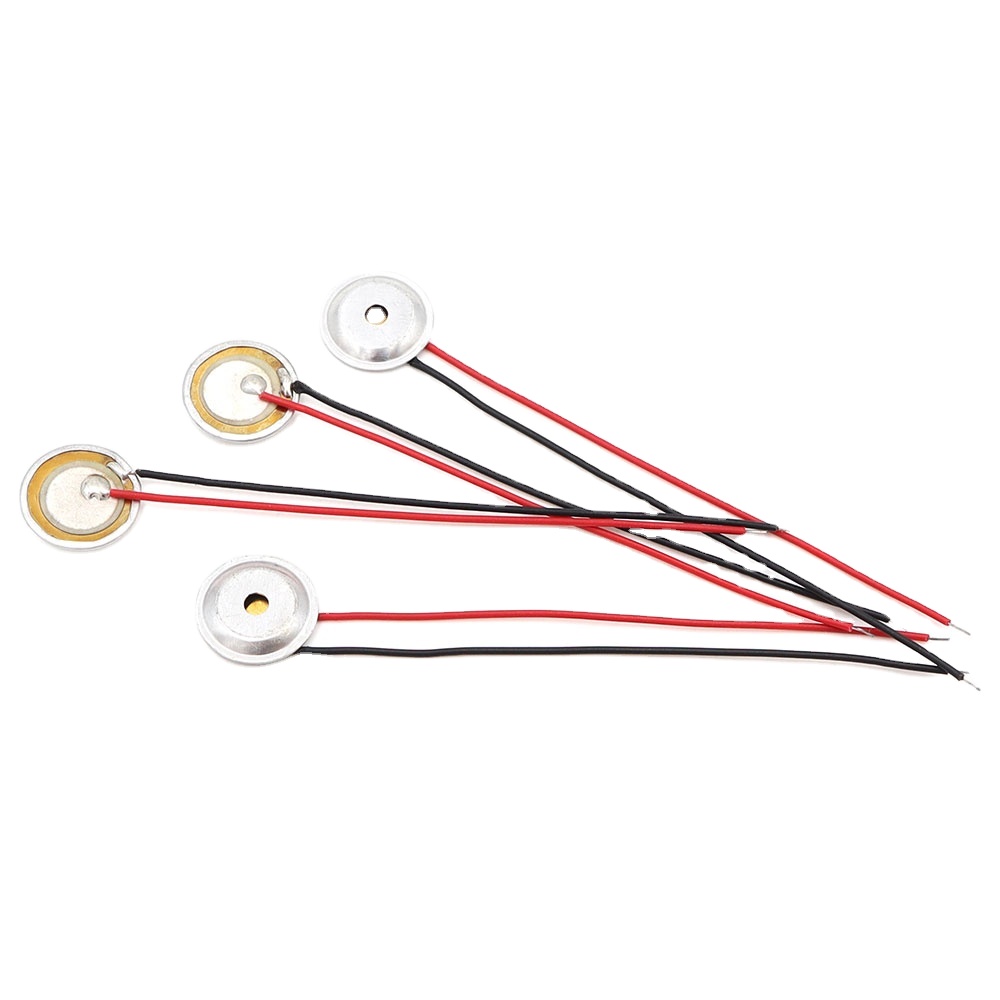

Piezo Buzzer Element with Aluminum Cover
These piezo buzzer elements combine a ceramic piezoelectric disc with a rigid aluminum cover to create a low‑profile acoustic transducer optimized for panel mounting and embedded designs. The aluminum shell protects the ceramic plate while helping to form a small resonance chamber that improves sound output and durability in compact devices.
Features:
- Durable aluminum cover for enhanced protection and acoustic efficiency.
- Pre-wired with red (positive) and black (ground) leads for simple connection.
- Low power consumption, ideal for battery-powered devices.
- High reliability with no mechanical contacts, ensuring noiseless operation.
Specifications:
| Parameter | Value |
|---|---|
| Diameter (12mm Variant) | 12mm |
| Resonant Frequency (12mm) | 9.0 ± 1.0 kHz |
| Resonant Impedance (12mm) | 1000 Ω max |
| Capacitance (12mm) | 8.0 nF ± 30% |
| Diameter (15mm Variant) | 15mm |
| Resonant Frequency (15mm) | 6.0 ± 1.0 kHz |
| Resonant Impedance (15mm) | 800 Ω max |
| Capacitance (15mm) | 10.0 nF ± 30% |

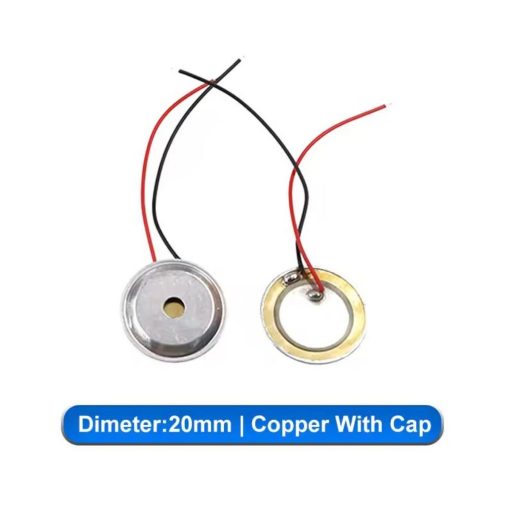

| Diameter (20mm Variant) | 20mm |
| Resonant Frequency (20mm) | 6.3 ± 0.6 kHz |
| Resonant Impedance (20mm) | 1000 Ω max |
| Capacitance (20mm) | 10.0 nF ± 30% |
| Operating Voltage | 3-24 VDC |
| Maximum Voltage | 30 Vp-p |
| Operating Temperature | -20°C to +70°C |
| Material | Ceramic piezo element with aluminum cover |
Applications:
- Audible alerts in security alarms and smoke detectors.
- Feedback tones in consumer electronics like microwaves and toys.
- Vibration or knock detection in smart home devices.
- Sound generation in medical equipment and timers.
- Integration into DIY projects and Arduino-based systems.
- Use in automotive buzzers for warnings.
Package Include:
1x Piezo Buzzer Element with Aluminum Cover
