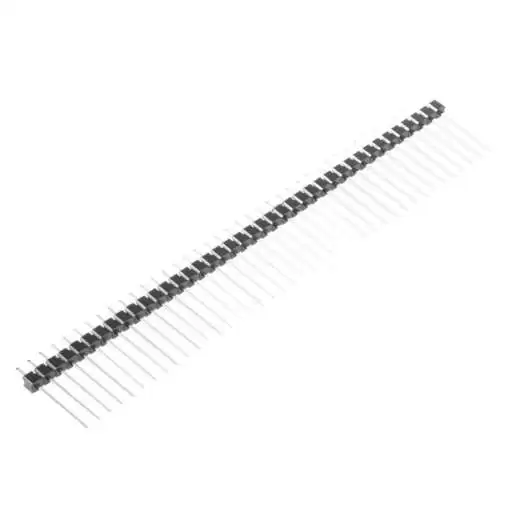

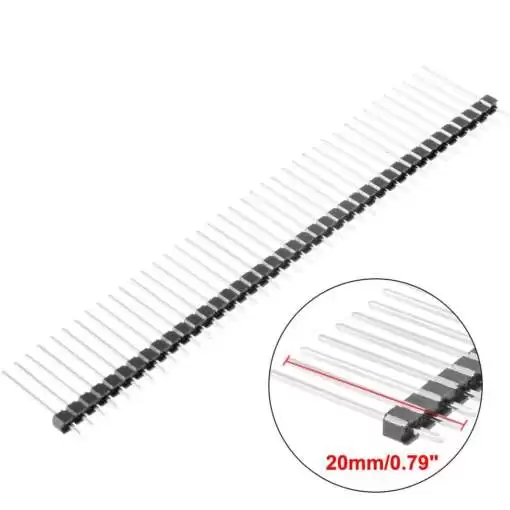

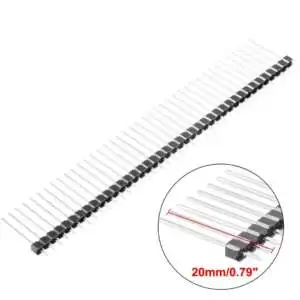

It is a 2.54mm 1×40 Pin Male Single Row Straight Long Header Strip. It has one row of 40 pins. Ideal for through-hole mounting. It has 18mm long pins and the plastic spacer can be adjusted according to the application.
Specifications:
| Connector | Header Strip |
| Gender | Male |
| Mounting Type | Through Hole |
| Pin Length (mm) | 20 |
| Pin Spacing (mm) | 2.54 |
| Contact Material | Phosphor Bronze |
| Contact Resistance | 20mΩ |
| Insulation Material | PBT UL 94V-0 |
| Insulation Resistance (MΩ) | ≥1000 |
| Length (mm) | 101 |
| Width (mm) | 2.4 |
| Height (mm) | 20 |
