PIR Motion Sensor Switch 220V OM20

Features:

• Adjustable time delay, sensitivity, and ambient light
• Automatically move detection
• Performance Stability
• Day/night adjustment

Specifications:

• Model: OM20
• Power source： 110-240V / AC
• Power frequency：50 / 60Hz

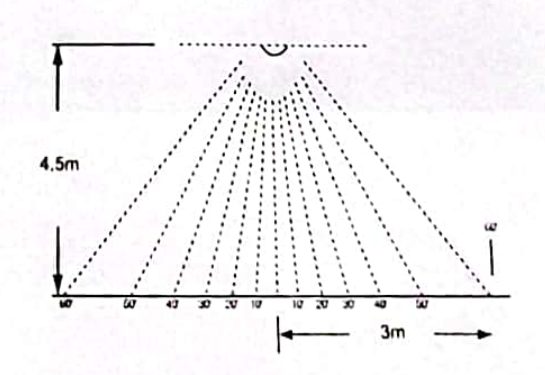

• Detection Range：120（side-view）/ 360°（top-view）
• Detection Distance：6m
• Detection Speed：0,6-1.5m / s
• Max Load Power：800W（110V / AC）/ 1200W（220V / AC）
• Environment Temperature: -20°C ∼ +40°C
• Environment Humidity：<93％
• Ambient Light：<5-2000Lux
• Time-Delay： Min. 5 seconds〜Max.7 minutes
• Installation Height：1.5m-3.5m

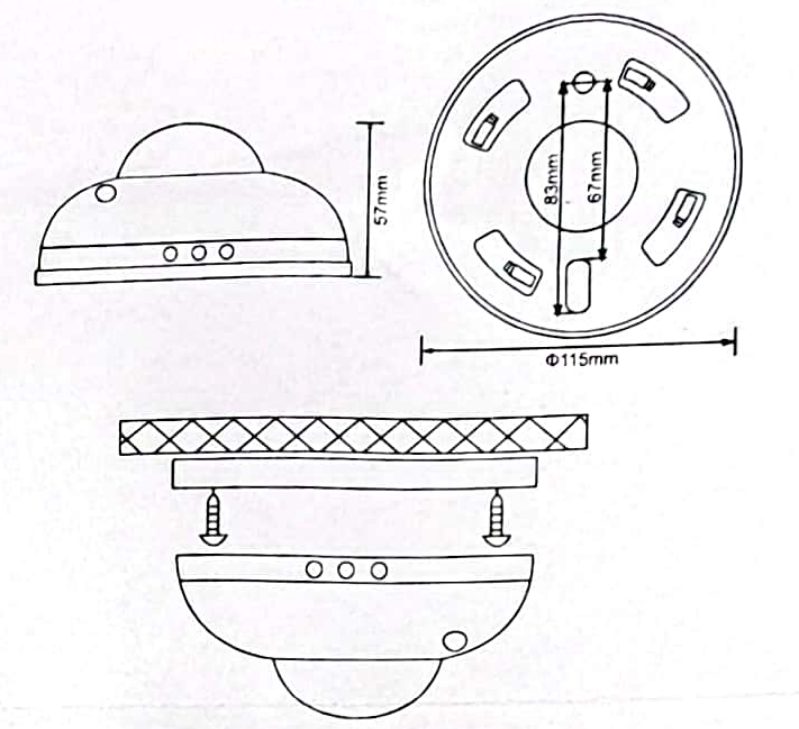

Installation:

• Switch off the power.
• Turn clockwise the bottom stand and take off it. The power wire crosses the hole in the middle of the bottom stand.
• The bottom stand is fixed on the selected position with an inflated screw.
• Connect the power and the load into the connection-wire column of the sensor according to the connection-wire diagram.
• The sensor aimed at the mouth of the bottom stand and turned anti-clockwise.
