Description:

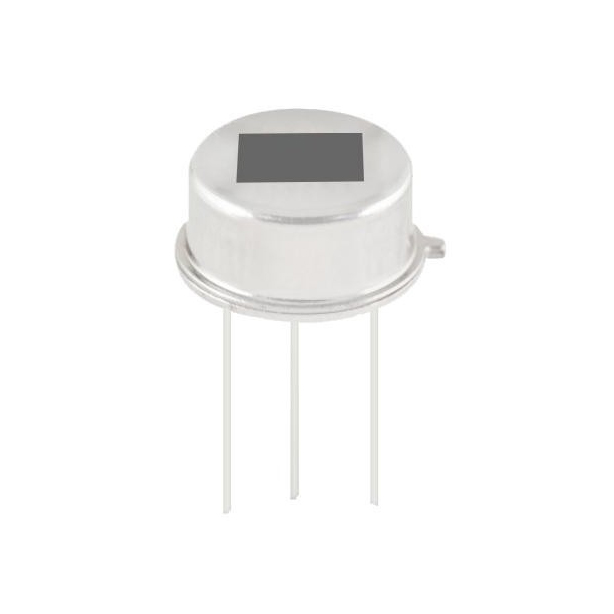

The PIR223W-S0 digital pyroelectric infrared sensor integrates the sensitive element of the traditional pyroelectric infrared sensor with the signal processing chip, and integrates the sensitive element and the IC chip into the sensor shield. The sensitive element transmits the infrared signal generated by the external human movement to the high-precision digital intelligent processing chip for processing by differential input. When the signal processing is completed, the will sensor outputs the signal directly , which is convenient to use.
Feature:
- High precision AD signal processing
- Low operating voltage, low power consumption
- Strong anti-radio frequency interference ability
Specifications:
Maximum Ratings:
| Parameter | Symbol | min | max | unit | note |
| Input voltage | VDD | -0.3 | 4.5 | V | |
| Pin current | Into | -100 | 100 | mA | |
| Storage temp | Tst | -40 | 85 | ℃ |
（T=25℃) Working Condition：
| Parameter | Symbol | min | typical | max | unit | note |
| working voltage | VDD | 2.7 | 3.3 | 3.7 | V | |
| working current | IDD | 10 | UA | 3.3V\25° | ||
| Sensitivity threshold | VSENS | 110 | UV | unadjustable | ||
| working temperature | WST | -20 | 70 | ℃ | ||
| Output | ||||||
| Output Low Current | IOL | -5 | 5 | mA | ||
| Lock Time | 2.3 | S | unadjustable | |||
| Delay Time | 1 | S | unadjustable | |||
| Initialization time | 10 | S | unadjustable | |||
Dimensions:
| Pin Description： | ||
| 1 | VDD | Power supply pin |
| 2 | REL | Output pin, output TTL high and low electric level |
| 3 | VSS | Power ground GND |
Detection Angle：
Application
- Applicable to all types of automatic lighting switches
- Applicable to all kinds of intrusion detectors for burglar alarms
- Applicable to all kinds of smart toys
- Applicable to all kinds of smart household appliances
