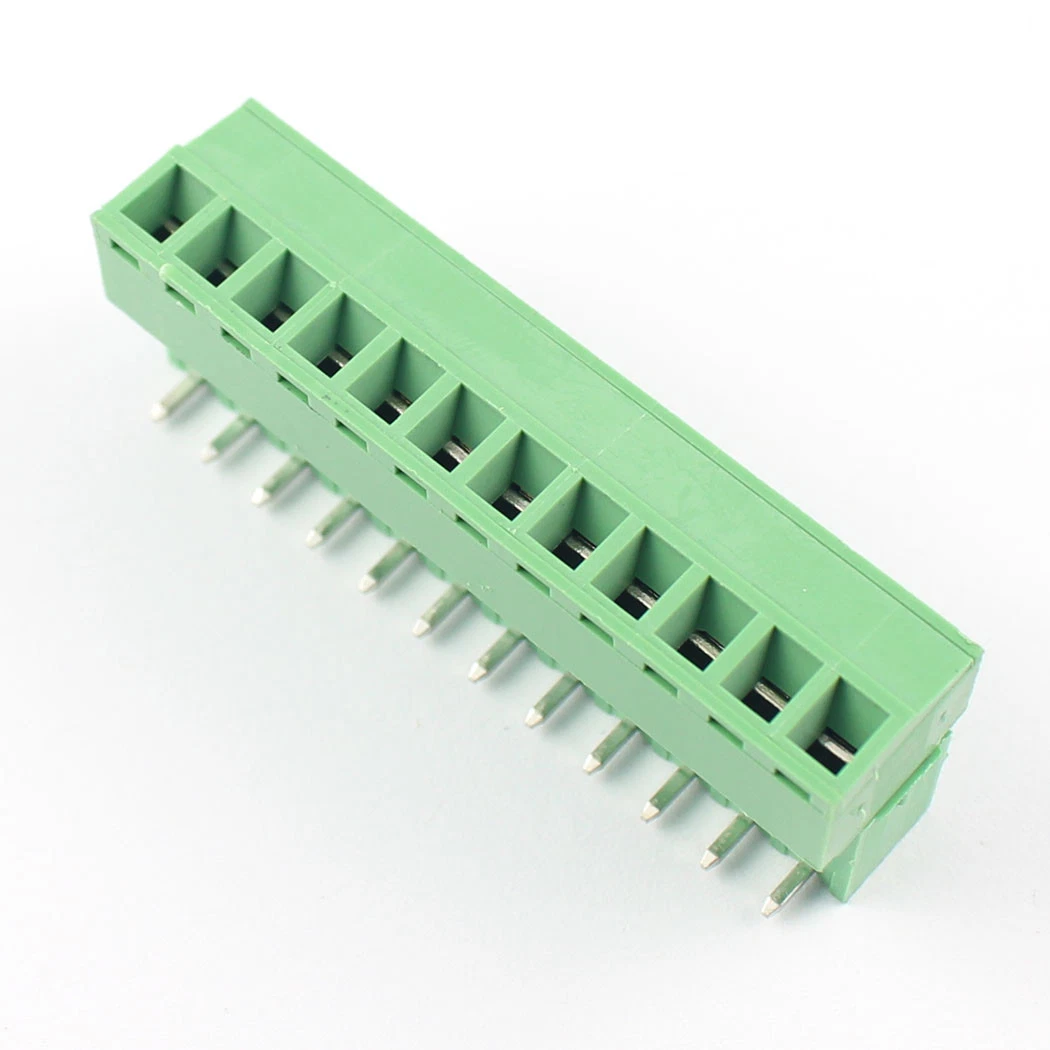

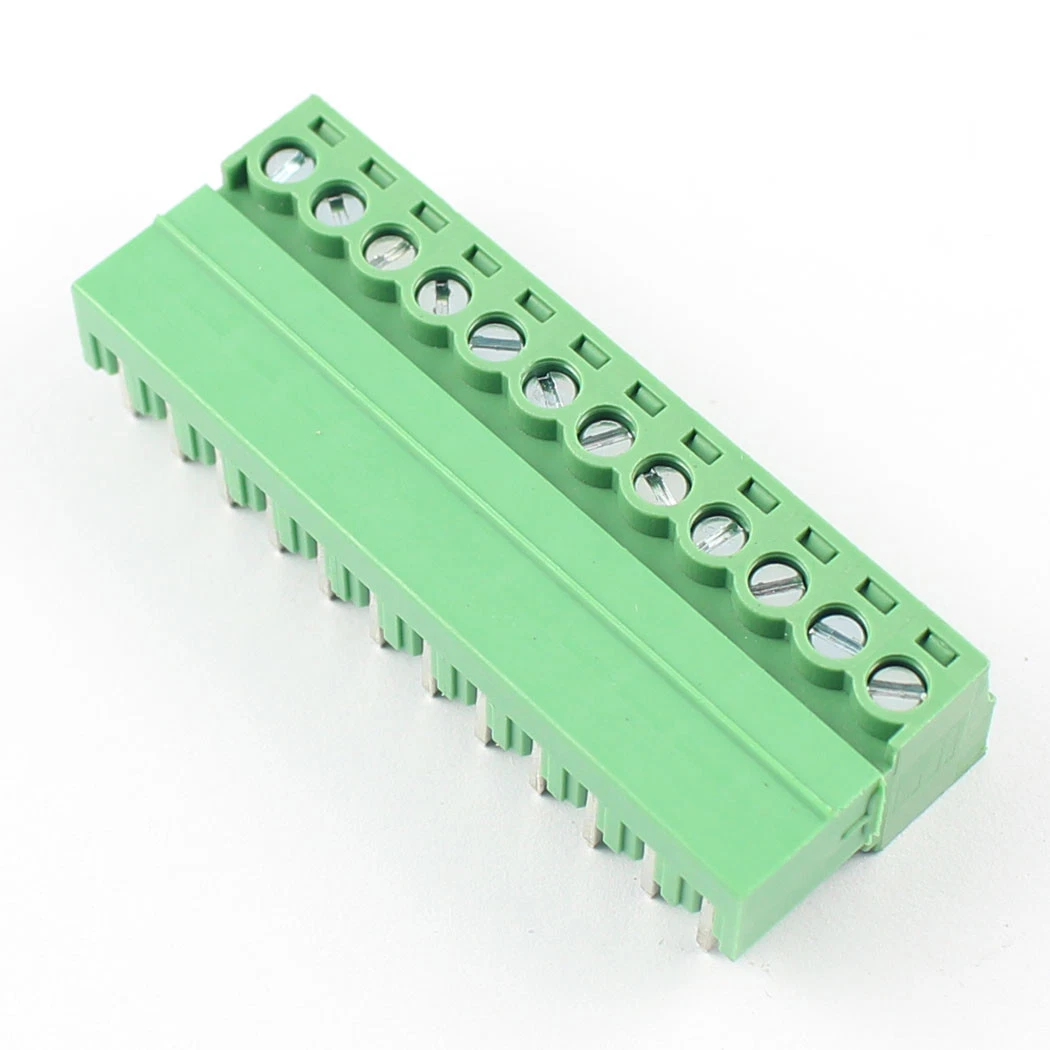

Pluggable Terminal Block KF2EDGR-3.81-12P PCB Solder Right Angle 3.81mm
The Pluggable Terminal Block KF2EDGR‑3.81‑12P is a high‑quality electrical connector designed for modular wire‑to‑board and wire‑to‑wire connections in industrial, control, and PCB applications. With a 3.81 mm pitch between adjacent pins, this 12‑pole right‑angle pluggable terminal block supports compact layouts while maintaining reliable electrical performance. The right‑angle solder‑pin configuration allows the connector to mount horizontally on the PCB, optimizing board space and facilitating efficient routing of wires and harnesses.
Features:
- 3.81mm pitch for compact multi-pin connections.
- 12-pin single-row configuration with right-angle pins.
- Pluggable design with screw clamp terminals for easy wiring.
- Through-hole PCB mounting for secure soldering.
- Durable green flame-retardant housing.
- Closed-end socket for enhanced safety.
- Vibration-resistant and reliable contacts.
- Suitable for modular and maintainable systems.
Specifications
| Parameter | Value |
|---|---|
| Package | Through Hole, Right Angle |
| Pitch (P) | 3.81 mm |
| Current Rating | 8 A |
| Voltage Rating (Max) | 300 V |
| Number of Rows | 1 |
| Number of Pins Per Row | 12 |
| Mounting Type | Right-Angle Pin |
| Connector Type | Board Side/Socket – Closed |
| Operating Temperature | -40℃ ~ +105℃ |
| Color | Green |
Applications:
- Signal and power distribution in industrial control panels.
- Modular connections in consumer appliances and devices.
- Wiring interfaces in automation and instrumentation equipment.
- PCB assemblies for smart home and IoT projects.
- Prototyping and development in electronics engineering.
- Renewable energy controllers and inverters.
Package Include:
1x Pluggable Terminal Block KF2EDGR-3.81-12P PCB Solder Right Angle 3.81mm.
