Pluggable Terminal Block KF2EDGV-5.08-16P PCB Solder Right Angle 5.08mm 16 Pin
The KF2EDGV-5.08-16P is a pluggable terminal block designed for use in printed circuit boards (PCBs). With a 5.08mm pitch and 16 pins, this terminal block offers a versatile and reliable solution for connecting cables to PCBs in industrial and consumer electronics applications. The pluggable nature of the design allows for easy disconnection and reconnection, making it ideal for applications requiring frequent maintenance or replacement.
This terminal block features both straight and right-angle orientations, providing flexibility for different installation setups. With a current rating of 10A and voltage rating of 400V, it is suitable for a wide range of power and signal applications. Constructed from durable PBT material, the KF2EDGV-5.08-16P ensures long-lasting performance, making it a dependable choice for any project requiring high-quality, secure electrical connections.
Features:
- Pluggable design for quick replacements and maintenance.
- Multiple pin configurations with 16 pins for versatile use.
- Available in both straight and right-angle orientations for flexibility in installation.
- Current rating of 10A to handle moderate power loads.
- Voltage rating of 400V, ensuring safe operation for a variety of applications.
- Constructed from durable PBT for high heat resistance and long-lasting durability.
Specifications:
| Specification | Details |
|---|---|
| Series: | KF2EDGV-5.08 |
| Number of Contacts: | 16 |
| Pitch: | 5.08mm |
| Number of Rows: | 1 |
| Mounting Type: | Cable Mount |
| Gender: | Female |
| Termination Method: | Screw Down |
| Current Rating: | 10A |
| Terminal Orientation: | Right Angle & Straight |
| Voltage Rating: | 400V |
| Material: | PBT |
Pinout:
| Pin # | Function |
|---|---|
| 1 | Input |
| 2 | Output |
| 3 | Ground |
| 4 | VCC |
| 5 | Signal |
| 6 | Reserved |
| 7 | Reserved |
| 8 | Reserved |
| 9 | Reserved |
| 10 | Reserved |
| 11 | Reserved |
| 12 | Reserved |
| 13 | Reserved |
| 14 | Reserved |
| 15 | Reserved |
| 16 | Reserved |
Applications:
- Industrial control systems.
- Power distribution circuits.
- Automation and robotics.
- Signal processing and control panels.
- Wiring connections in consumer electronics.
Package Includes:

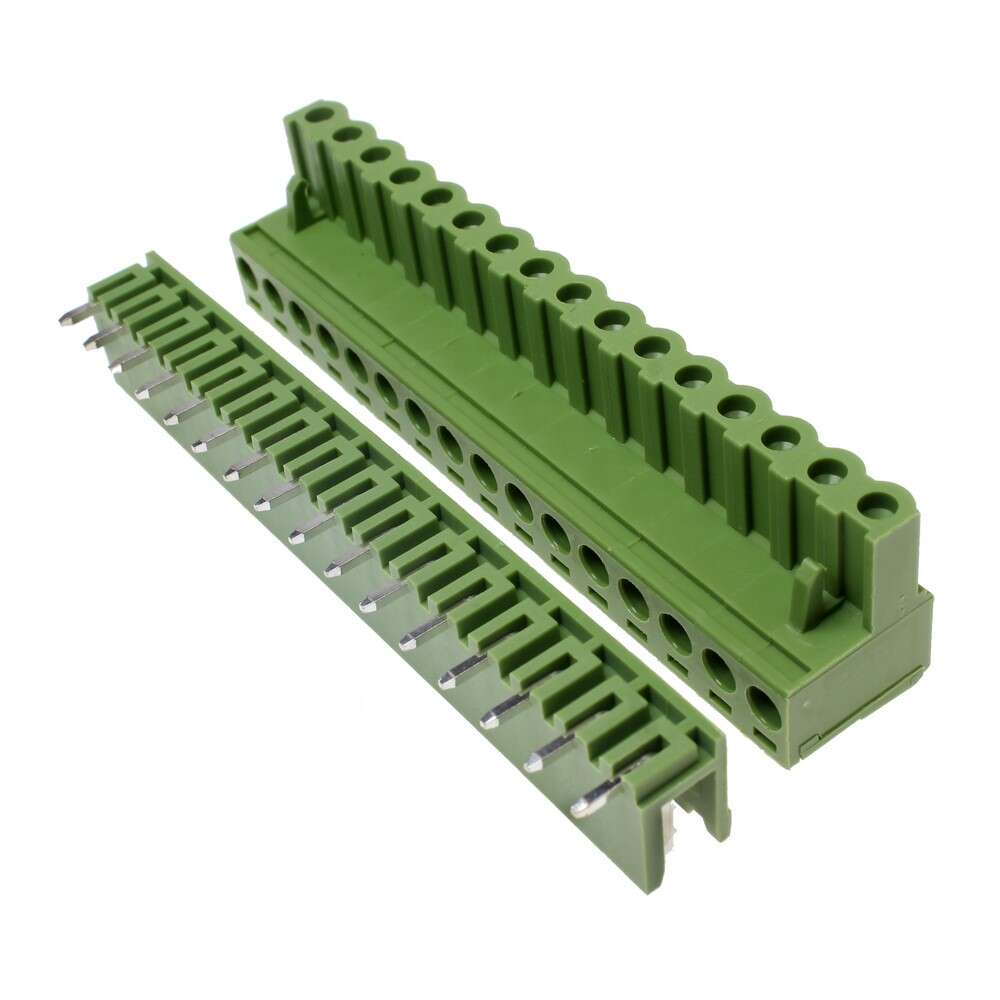

- 1x Female Plug.

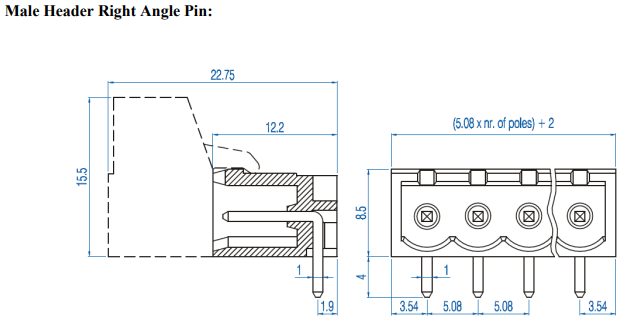

- 1x Male Header Right Angle Pin.
