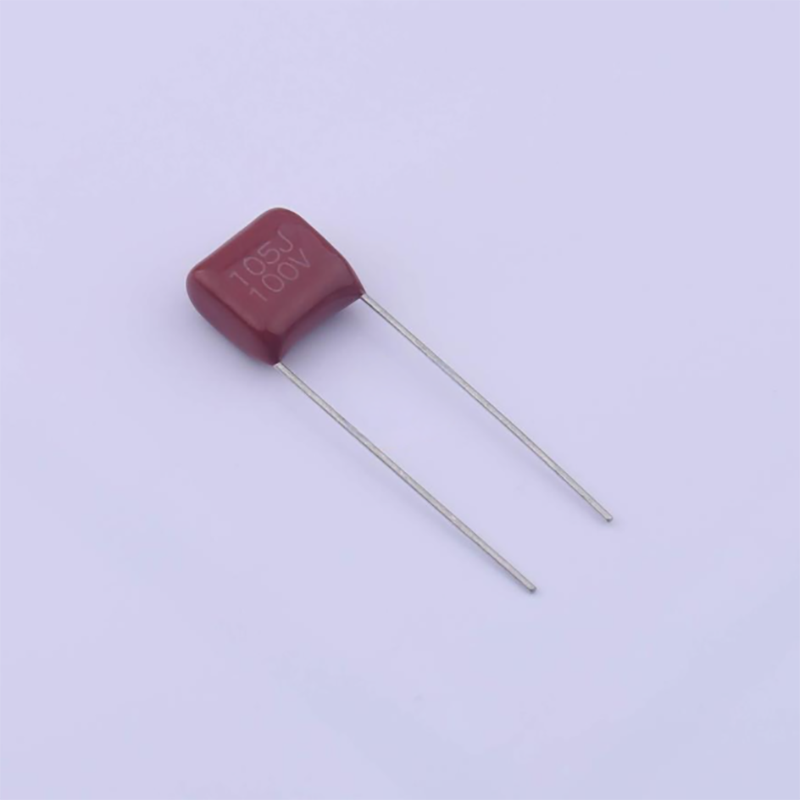

Polyester Capacitor 1uF 100V
The Polyester Capacitor 1uF 100V is a metallized polyester film capacitor, offering high reliability and a compact design. It is engineered to provide excellent performance in a wide range of applications, especially where small size and high capacitance are required.
This capacitor is known for its self-healing properties, which make it durable and reliable even after experiencing stress or partial breakdowns. The metallized polyester film construction ensures that the capacitor can withstand challenging environmental conditions while maintaining performance.
With a rated voltage of 100V and a capacitance of 1µF, this capacitor is ideal for use in DC circuits, bypass applications, and low-pass filters. Its small size and wide range of capacities make it suitable for modern electronic circuits requiring stability and reliability.
Features:
- Self-healing property for longevity and reliability.
- Compact size with lightweight construction.
- Wide capacitance range.
- Stable performance under varying conditions.
Specifications:
| Specification | Value |
|---|---|
| Capacitance: | 1 µF |
| Rated Voltage: | 100V |
| Tolerance: | ±5% (J) |
| Dielectric Material: | Polyester Film |
| Climatic Category: | 55/85/21 |
| Temperature Range: | -55°C to +85°C |
| Insulation Resistance: | ≥7500MΩ at 100V |
Pinout Diagram:
Footprint:
Applications:
- DC Circuits.
- Bypass Capacitors.
- Coupling Capacitors.
- Filtering Circuits.
- Low Pulse Circuits.
Package Contents:
- 1x Polyester Capacitor 1uF 100V
