Polyester Capacitor 22nF 100V 223J

Polyester Capacitor 22nF 100V 223J

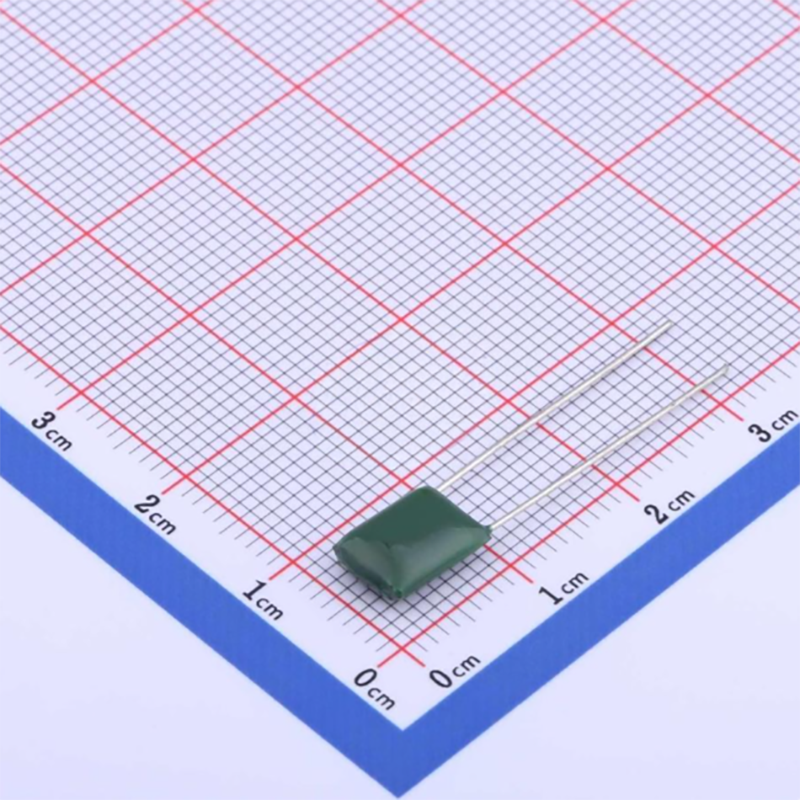

This component is a CL11-type Polyester Film Capacitor, also known as a Mylar capacitor. Its fundamental structure is based on a thin dielectric film made of polyester, which is known for providing a good balance of electrical properties and cost-effectiveness. The internal film electrodes are meticulously wound to create a compact component that reliably delivers a capacitance value of 22nF (or 0.022µF).

The capacitor is engineered for stability and durability under various operating conditions. It is rated for a continuous operating voltage of 100V and is designed to function effectively across a wide temperature range from -40°C to +85°C. The component undergoes rigorous testing, including vibration, thermal cycling, and humidity exposure, to ensure its mechanical integrity and electrical parameters remain within specified limits, guaranteeing consistent performance.

Manufactured by Dongguan KNSCHA Electronics Ltd., this capacitor is produced under a stringent quality assurance process. It is built to meet established international standards, as evidenced by the various IEC test methods referenced in its specification. This makes it a dependable choice for general-purpose electronic circuits where a stable, fixed-value capacitor with a 5% (J) tolerance is required for tasks like filtering, coupling, or decoupling.

Features:

• High Insulation Resistance.
• Low Dissipation Factor.
• Good Stability and Reliability.
• Wide Operating Temperature Range.
• Robust Terminal Strength.
• Excellent Solderability and Heat Resistance.
• Resistance to Vibration and Mechanical Stress.
• Long Operational Lifespan.

Specifications:

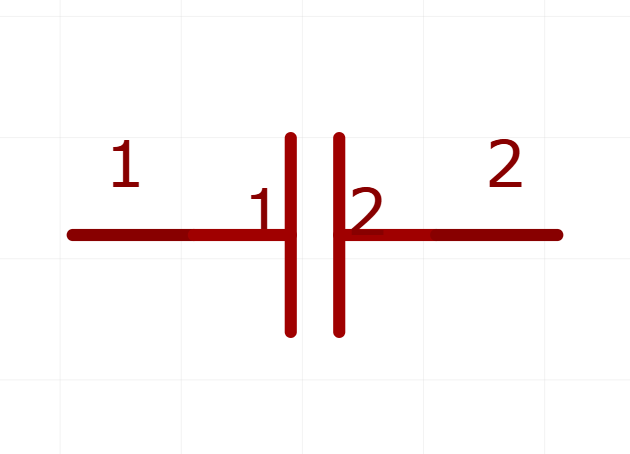

Pinout Diagram:

Footprint Diagram:

Applications:

• Noise Suppression Circuits.
• Coupling and Decoupling Applications.
• Timing and Oscillator Circuits.
• Filter Networks.
• General Purpose PCB Applications.

Package Contents:

• 1x Polyester Capacitor 22nF 100V 223J

Datasheet
