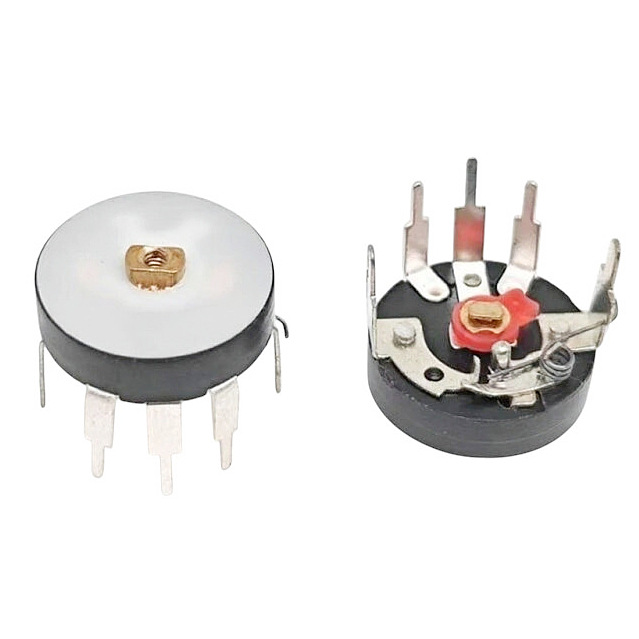

Potentiometer Amplifier Bent Pin With Switch RV12MM B5K
Compact 5K ohm rotary pot with built-in switch. Linear taper, bent pins. Ideal for amplifiers and volume control.
7.00 EGP
Buy NowPotentiometer Amplifier Bent Pin With Switch RV12MM B5K
The B5K is a professional-grade rotary potentiometer with integrated switch functionality, designed for audio equipment, power amplifiers, and radio applications. This compact 15mm diameter component features a linear taper design with a resistance value of 5K ohms, making it ideal for volume control and power switching applications.
Features
- Integrated Switch
- Compact Design
- Bent Pin Configuration
- Durable Construction
- Smooth Operation
- 5-Terminal Design
Specifications
| Parameter | Specification |
|---|---|
| Model Number | RV12MM B5K |
| Product Type | Rotary Potentiometer with Switch |
| Resistance Value | 5K Ohm (5,000Ω) |
| Taper Type | B-Type (Linear) |
| Tolerance | ±20% |
| Power Rating | 0.5W (500mW) |
| Rotation Angle | 230° |
| Switch Current Rating | 2A @ 250VAC |
| Operating Temperature | -30°C to +85°C |
| Body Diameter | 15mm |
| Total Height | 14mm |
| Number of Terminals | 5 Pins |
| Mounting Type | Through-Hole (THT) Bent Pins |
| Pin Configuration | Pre-bent |
Applications
- Audio Equipment
- Power Control
- General Electronics
- Communication Equipment
