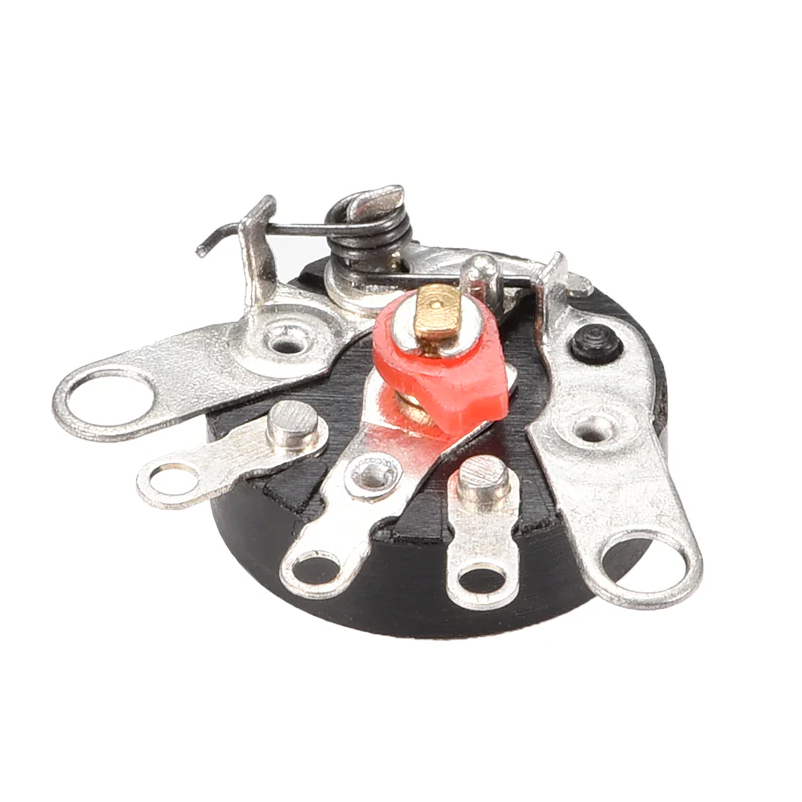

Potentiometer Amplifier Straight Pin With Switch RV12MM B1K
The RV12MM B1K is a professional-grade 12mm rotary potentiometer with an integrated switch, designed for power amplifiers, audio equipment, and radio applications. This compact variable resistor combines volume control functionality with switching in a single, space-saving component.
Features
- Integrated Switch
- Compact 12mm Design
- Straight Pin Configuration
- Durable Construction
- Wide Application Range
Specifications
| Parameter | Value |
|---|---|
| Model Number | RV12MM B1K |
| Resistance Value | 1K ohm (1000Ω) |
| Taper Type | Linear |
| Resistance Tolerance | ±20% |

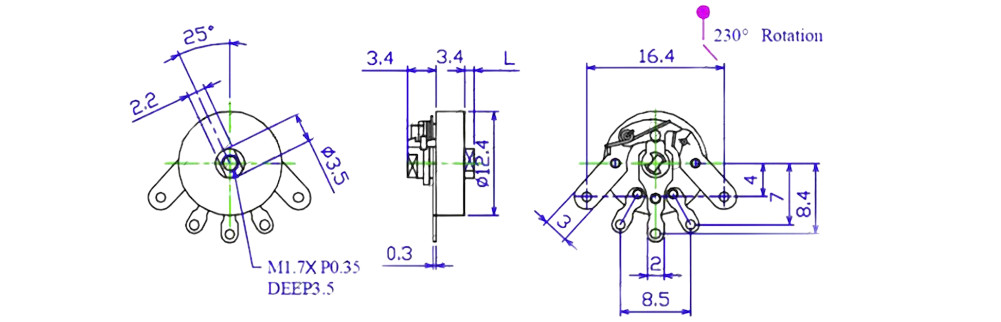

| Body Diameter | 12mm |
| Pin Type | Straight |
| Power Rating | 0.125W (1/8 Watt) |
| Maximum Voltage | 200V DC |
| Terminal Resistance | 10 ohms maximum |
| Switch Type | SPST (Single Pole Single Throw) |
| Rotation Angle | 230° |
| Operating Temperature | -10°C to +75°C |
Applications
- Audio Equipment
- Radio & Communication
- General Electronics
- Consumer Electronics
