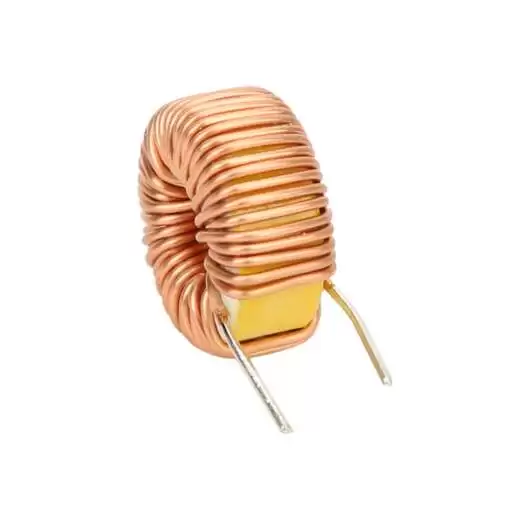

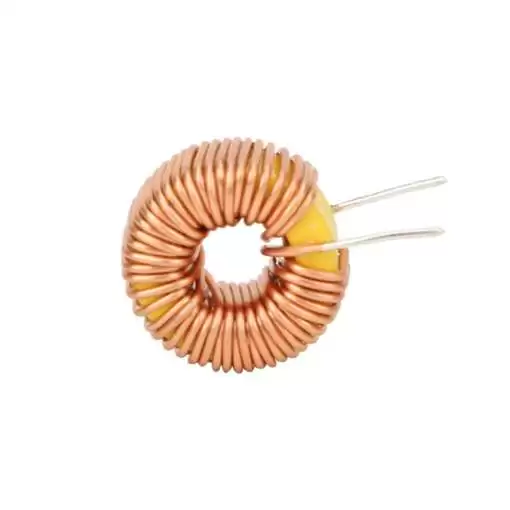

Power Inductor 220uH 0.6mm Through-Hole

220uH 2A High Current Toroidal DIP Inductor is a passive electronic device widely used in electronic circuits. It is an insulated coil that is a wire wound on a ring-shaped form that is made of different materials, such as, powdered iron, ferrite, or another material.

A toroidal inductor is mostly used where large inductance is required. Toroidal inductors have more inductance per turn and can carry more current than solenoids with a core of similar material and size.

Specifications:

• Inductance Type: Toroidal
• Material: Core Ferrite
• Inductance: 220µH
• Tolerance: ±20%
• Current Rating: 2A
• Operating Temperature: -40°C ~ 105°C
• Mounting Type: Through-Hole
• Package/Case: Radial, Vertical (Open)
• Dimensions (D x W): (16.8mm x 7.8mm)
• Coil Diameter: 0.6mm
• Lead Pitch: 7mm
• Terminal Type: Radial Leaded
