Features
- 4.5kV dielectric strength (between coil and contacts)
- Heavy load up to 5000VA
- Ideal for motor switching
- PCB & QC layouts available
- UL insulation system: Class F
Specifications:
| Model | HF102F-T-12VDC |
| Brand | Hongfa |
| Contact Form | Form 1A |
| Size Category | Mini |

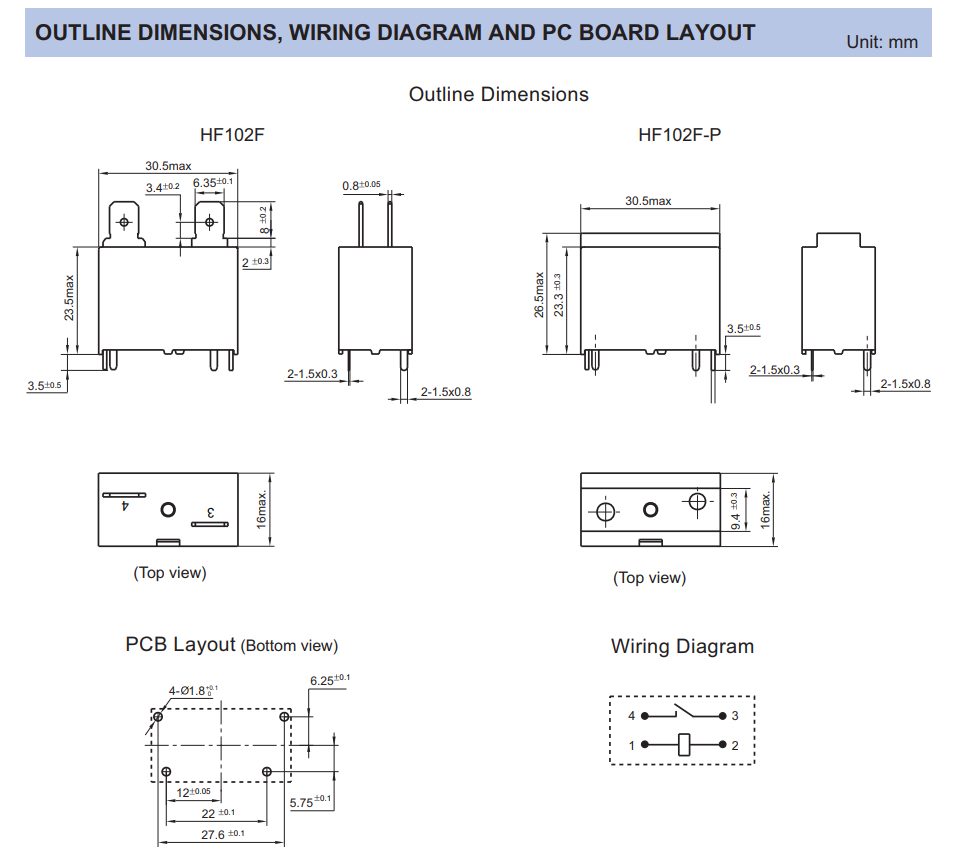

| Size | 30.5x16x23.5mm |
| Termination | PCB | Quick Connect |
| Coil Rated Voltage | 12V |
| AC/DC Voltage | DC |
| Max. Switching Current | 25A |
| Coil Power | 900mW Power |
| Coil Resistance | 160Ω |
| Isolation Voltage | 4.5KV |
| Approvals | UL/CUL/VDE |
| Contact Material | AgSnO2 |
| No. of Pins | 4 Pin(s) |
| No. of Poles | 1 Pole(s) |
