Product Features
- Shock Resistance Strong, seismic resistance, Long Working Life
- Provides 1 set of contact conversion
- Load, switch Power: 60A
- Bolt type, Rail mounting
Contact Form Description
- Changeover Type (Z):
- In the middle there is a moving contact, when the coil is not energized, the moving contacts will be disconnect and one of the static contacts will be closed. After the coil is energized, the moving contact will move, makes the original broken change to closed state, and original closed state changed to disconnected state, to achieve the purpose of conversion.
- Normally Open Type (H):
- The contact is disconnect state when coil is not energized, and contact will be closed when coil is energized.
- Normally Closed Type (D):
- The contact is closed state when coil is not energized, and contact will be disconnected when coil is energized.
Contact Parameters
| Contact Form | 1Z, 1H, 1D |
| Contact Load | 60A |
| Max Switching Voltage | 240VAC 60A, 28VDC 60A |
| Contact Material | Silver Alloy |
Operation Coil
| Rated Voltage | DC24V |
| Rated Current mA | 83.3 |
| Coil Resistance Ω | 288 |
| Rated Power dissipation W | 2.0W |
| Pull In Voltage Max V | Under 75% |
| Release Voltage Min V | Over 10% |
| Tolerate Voltage Max V | Rated Voltage x 110% |

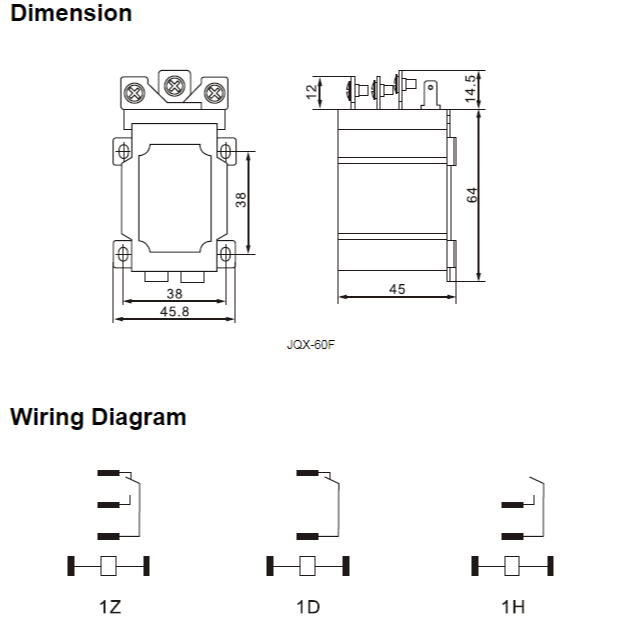

Drawing and Dimensions:
