Features:

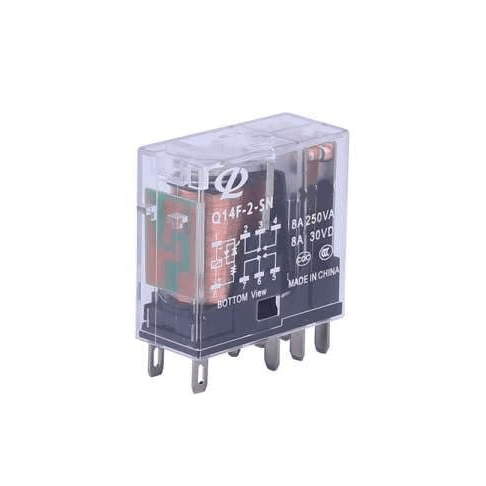

- The Q14F-2-SN is an 8-pin Electromagnetic, Power Relay, designed for general-purpose use in a variety of applications.
- The capability to handle moderate loads.
- Its plug-in design ensures easy installation and maintenance, especially in environments requiring frequent replacements.
- Supports switching loads up to 8A.
- Double Pole Double Throw (DPDT) or equivalent.
- 8 pins, designed for standard sockets.
- High mechanical and electrical life, ensuring long-term reliability.
- High dielectric strength and insulation resistance.
- Plug-in, compatible with socket bases for panel or DIN rail mounting.
- This relay is suitable for industrial, commercial, and residential automation systems.
- Ideal for switching moderate loads in AC and DC circuits.

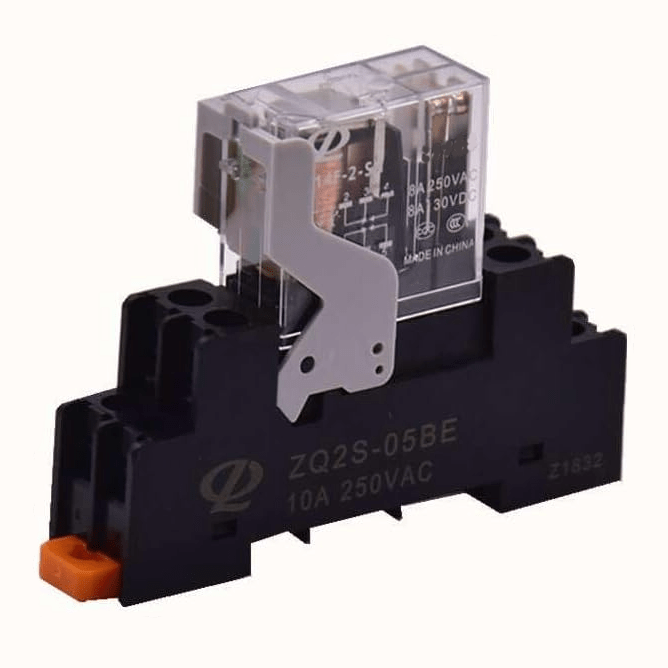

- Comes with a compatible socket for easy installation.
Pin Assignments:
The Q14F-2-SN has 8 pins arranged as follows DPDT layout:
- Pin 1 : Coil Terminal 1
- Pin 8 : Coil Terminal 2
- Pin 3 : Common (Pole 1)
- Pin 4 : Normally Open (NO) Contact 1
- Pin 2 : Normally Closed (NC) Contact 1
- Pin 6 : Common (Pole 2)
- Pin 5 : Normally Open (NO) Contact 2
- Pin 7 : Normally Closed (NC) Contact 2
Specifications:
- Relay Type: Electromagnetic, Power Relay
- Model: Q14F-2-SN 230VAC
- Number of Poles: Double pole
- Configuration: Non-latching (requires continuous voltage to maintain the state)
- Contact Form: Double Pole Double Throw (DPDT)
- Contact Rating: 8A at 250VAC/30VDC
- Coil Voltage: 230 VAC
- Coil Resistance(Approx.): 23 KΩ
- Max Switching Voltage: 250VAC or 30VDC
- Insulation Resistance: ≥100MΩ at 500VDC
- Life Expectancy:
- Mechanical: ≥10 million operations
- Electrical: ≥100,000 operations (depending on load)
- Operating Time: ≤20 ms
- Release Time: ≤10 ms
- Operating Temperature: -25°C to +70°C
Applications:
- Industrial Control Systems.
- Home Appliances.
- Power Management.
- Lighting Systems.
- Telecommunications.
- HVAC systems.
- Security and Alarm Systems.
- Control Panels.
