Power Resistor 0.33Ω 5W Through Hole

Power Resistor 0.33Ω 5W Through Hole

The Power Resistor 0.33Ω 5W is a high-quality resistor designed for power applications requiring effective energy dissipation. It is constructed in a through-hole design, offering robust mounting for various electronic circuits. The resistor features a durable cement composition, which contributes to its resistance to high temperatures and physical stresses.

This power resistor is made with a high alumina ceramic core and is enveloped in a silicon resin casing, ensuring both high thermal conductivity and resistance to heat. Its ability to handle continuous power loads up to 5 watts without failure makes it a reliable choice for use in power-sensitive applications, where thermal stability is essential. The ceramic casing is further supported by a metal oxide film or resistor wire, which enhances its overall stability.

The 0.33Ω resistance value provides a low-resistance option suitable for various power control applications, ensuring minimal energy loss. It is designed to withstand fluctuations in voltage, maintaining its integrity under stress. Its wide operating temperature range, combined with its excellent insulation properties, makes it ideal for high-load circuits requiring consistent performance.

Features:

• Durable Construction: Cement-type casing ensures durability and resistance to high temperatures.
• High Thermal Conductivity: Ceramic core with high thermal conductivity for effective heat dissipation.
• Power Handling: Can handle continuous power dissipation up to 5W.
• Wide Operating Range: Suitable for a variety of environments, with a high voltage tolerance.
• Precise Resistance Value: 0.33Ω, suitable for specific low-resistance applications.
• Reliable Insulation: Excellent insulation resistance ensuring longevity and reliability.

Specifications:

Pinout Diagram:

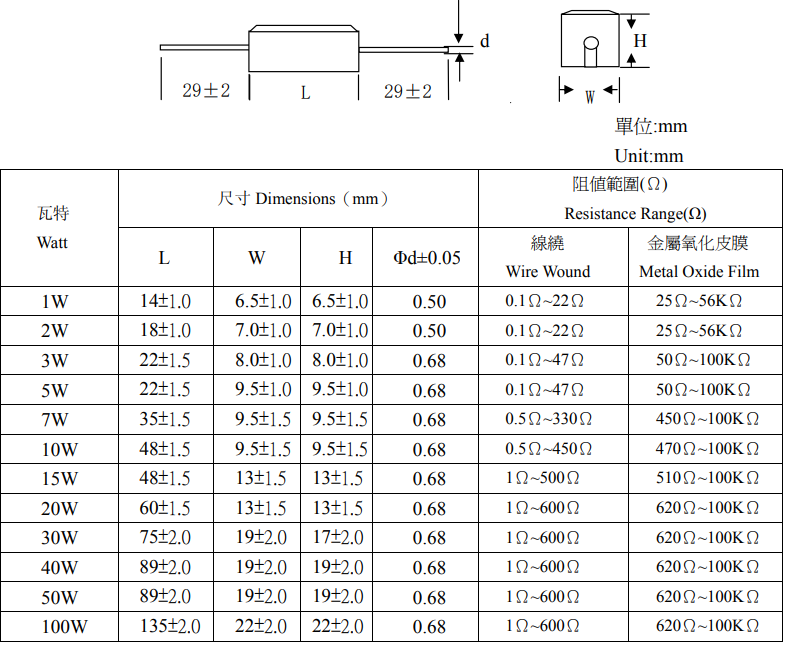

Footprint:

Applications:

• Power Supply Systems.
• Voltage Regulation Circuits.
• Energy Dissipation.
• High-Temperature Applications.

Package Contents:

• 1x Power Resistor 0.33Ω 5W Through Hole

Datasheet
