Power Resistor 100mΩ 5W Through Hole
This 5 Watt, 0.1 Ohm (100mΩ) power resistor is a high-durability passive component designed for circuits requiring high power dissipation and pulse handling. Encapsulated in a rectangular ceramic block, this “cement” resistor offers superior heat resistance, flame-proof insulation, and mechanical stability compared to standard resistors.
✅Features
- High Power Handling
- Flame & Heat Resistant
- Robust Construction
- Standard Mounting
- Superior Pulse Performance
📜📚Specifications
| Parameter | Value |
| Component Type | Ceramic Cement Power Resistor |
| Technology | Wirewound Element |
| Power Rating | 5 Watts (5W) |
| Resistance | 0.1 Ohms (100mΩ) |
| Tolerance | ±5% (J) |
| Operating Temperature | -55°C to +155°C |

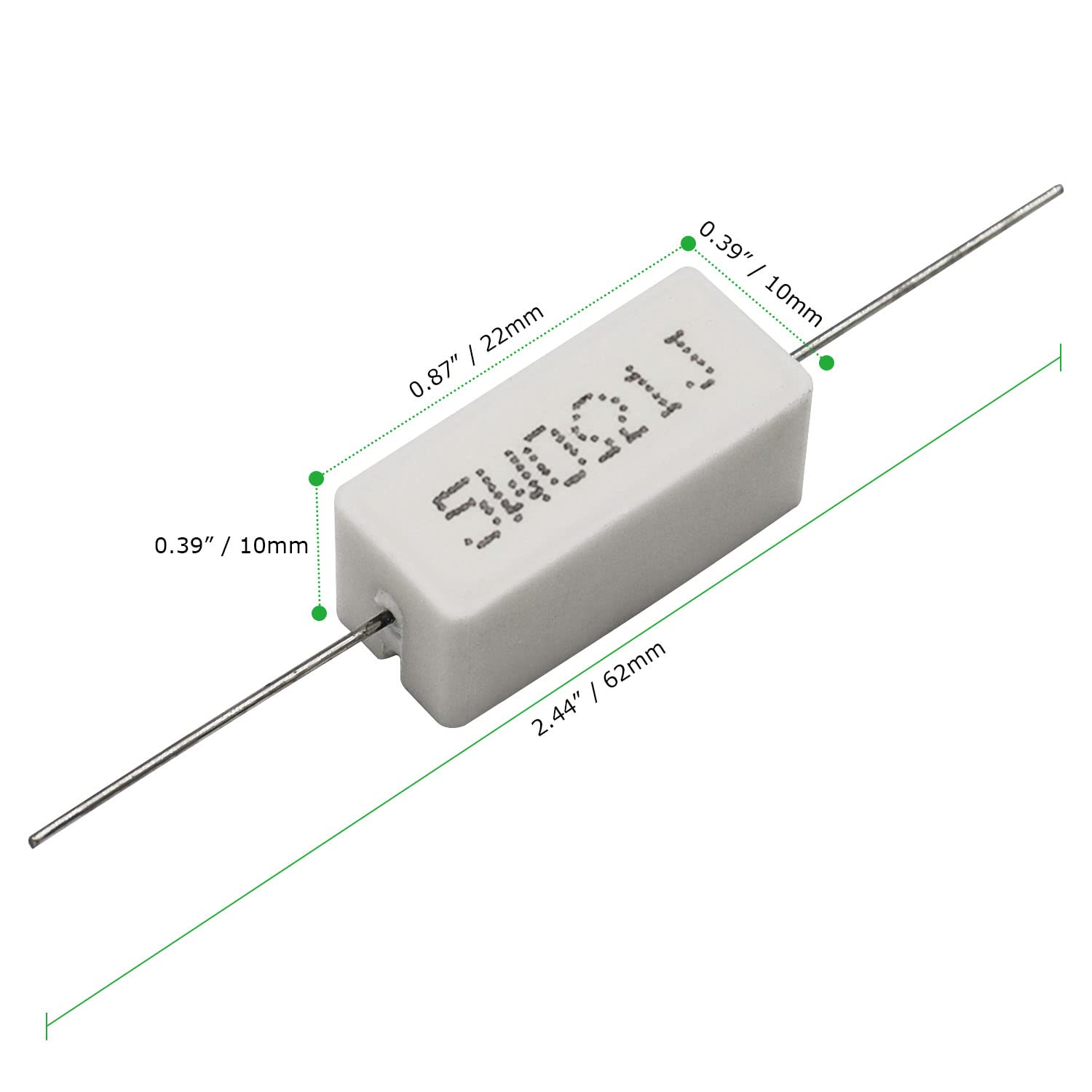

| Body Dimensions | 22mm (L) x 10mm (W) x 10mm (H) |
| Lead Type | Axial, Tinned Copper |
| Color | White |
💻Applications
- Power Supplies
- Current Sensing
- Audio Systems
- Inverters & Converters
- Industrial Electronics
