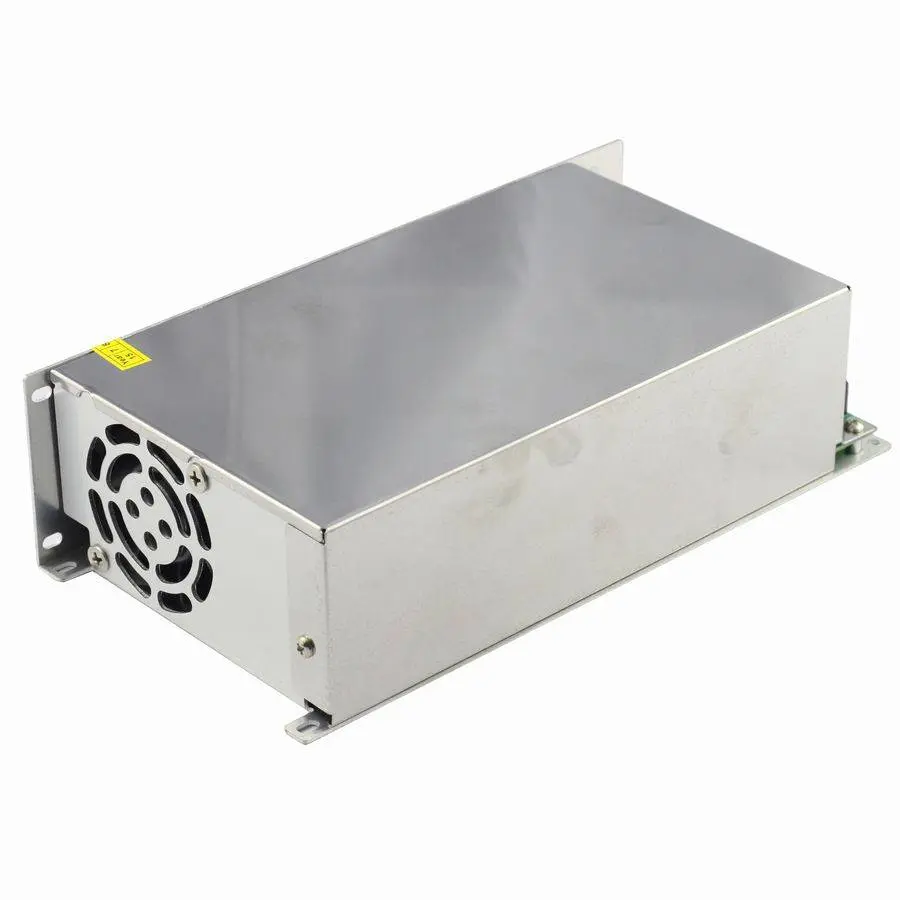

Power Supply 24V 40A
The Power Supply 24V 40A 960W Switching (S-960-24 Type) is a high-performance AC to DC converter designed to deliver stable and efficient 24V DC output for demanding applications. With a maximum output current of 40A and total power capacity of 960W, this unit is ideal for industrial systems, automation equipment, and high-power LED installations.
Features:
- High output power of 960W with stable 24V DC output.
- Maximum output current up to 40A.
- Dual input voltage 110V/220VAC selectable via switch.
- Built-in cooling system for efficient heat dissipation.
Specifications:
| Parameter | Value |
|---|---|
| Model Type | S-960-24 |
| Output Voltage | 24VDC |
| Output Current | 40A |
| Output Power | 960W |
| Input Voltage | 110/220VAC Switch Selectable |
| Input Frequency | 47-63Hz |
| Ripple & Noise | ≤180mVp-p |
| Overload Protection | 105%-130% |
| Overvoltage Protection | 115%-135% |
| Cooling Method | Fan Cooling |
| Operating Temperature | -20°Cto+60°C |
| Dimensions (L×W×H) | 240×125×65mm |
Applications:
- Industrial automation systems.
- LED lighting and large display systems.
- CNC machines and robotics.
- CCTV and security systems.
- Telecommunications equipment.
- High-power DC systems.
Package Include:
1x Power Supply 24V 40A 960W.
