Powerburst Ultracapacitor PBLL 5.4V 17F

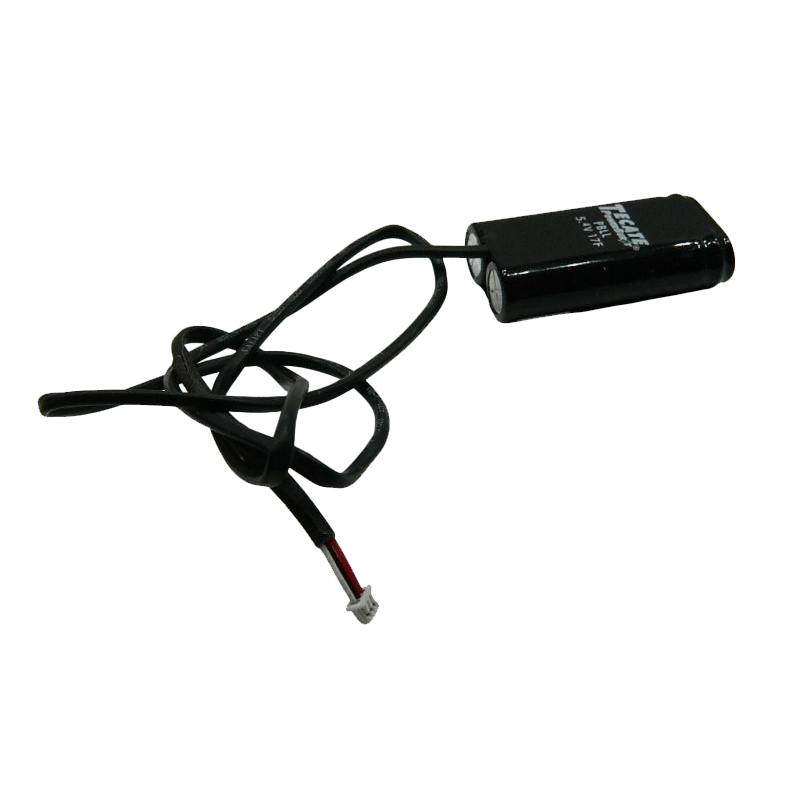

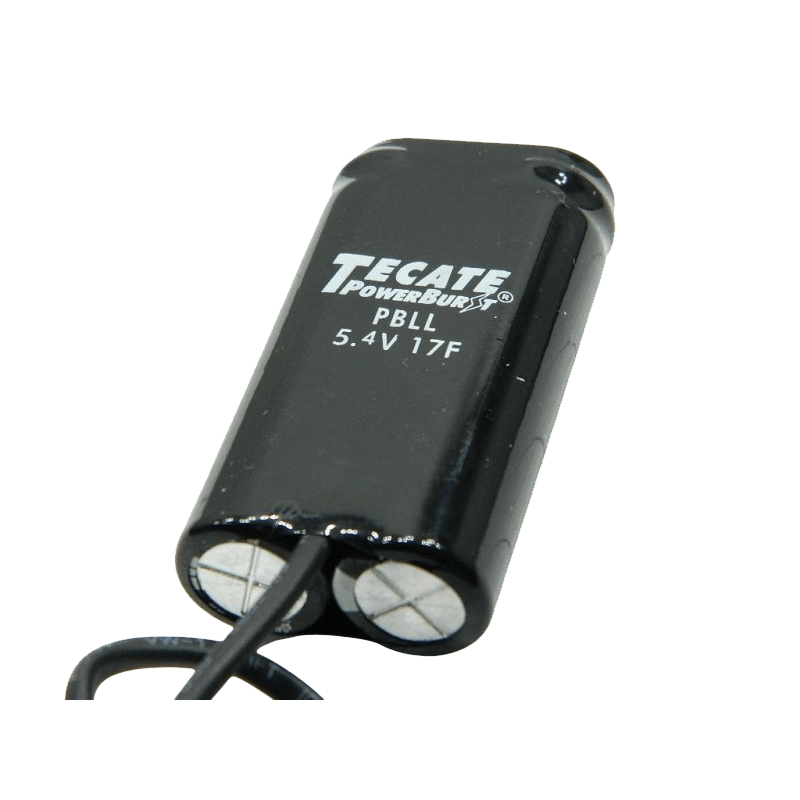

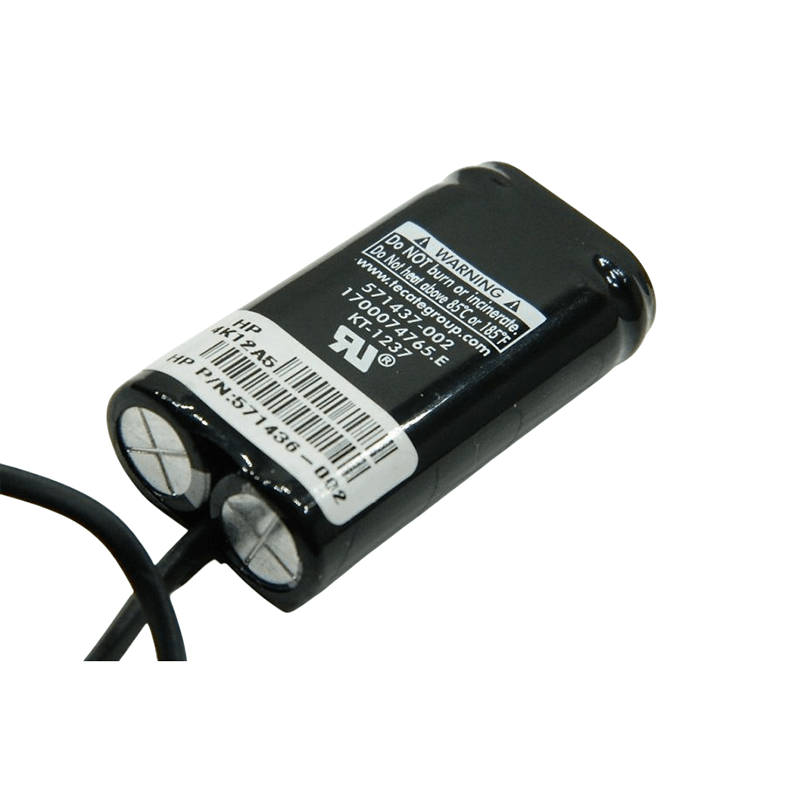

The Powerburst Ultracapacitor PBLL 5.4V 17F is a compact, high-efficiency energy storage component designed for applications requiring rapid charge and discharge cycles. Its physical form conveys both precision and robustness a neatly sealed cylindrical or rectangular body that combines conductive terminals with a durable enclosure. The construction focuses on maintaining reliability under repeated use, presenting a solid, professional appearance suitable for both industrial and consumer-grade power systems.
Internally, the PBLL 5.4V 17F employs advanced double-layer capacitor technology to achieve high capacitance and low equivalent series resistance (ESR). This configuration allows it to deliver bursts of power far beyond conventional batteries of similar size while recharging within seconds. Its electrolyte and electrode materials are optimized for stability, ensuring consistent performance through thousands of charge/discharge cycles without notable degradation.
The ultracapacitor’s 5.4V rating makes it ideal for low-to-medium voltage circuits where reliability and responsiveness are key. With its compact footprint and long operational life, it serves as an ideal buffer for sudden current demands, maintaining voltage stability even under load variations. The PBLL 5.4V 17F demonstrates a balance between modern energy density, mechanical strength, and electrical endurance a compact solution for dynamic power support.
Features:
- Rated voltage: 5.4V.
- Capacitance: 17 Farads.
- Low ESR for high current delivery.
- Long cycle life with minimal capacity fade.
- Rapid charge and discharge capability.
- Compact and durable housing design.
- Reliable temperature stability in operation.
- Maintenance-free construction.
Specifications:
| Parameter | Value / Description |
|---|---|
| Model: | PBLL 5.4V 17F |
| Capacitance: | 17 Farads |
| Rated Voltage: | 5.4 V |
| Operating Temperature Range: | –40 °C to +65 °C |
| Terminal Type: | 6-pin Connector |
| Dimensions: | 50 × 27 × 13 mm (with Cable Length 70 cm) |
| Weight: | 33 g |
Applications:
- Backup power systems.
- Energy recovery circuits.
- Pulse power supply units.
- Industrial automation equipment.
- Renewable energy buffering.
Package Contents:
- 1x Powerburst Ultracapacitor PBLL 5.4V 17F
