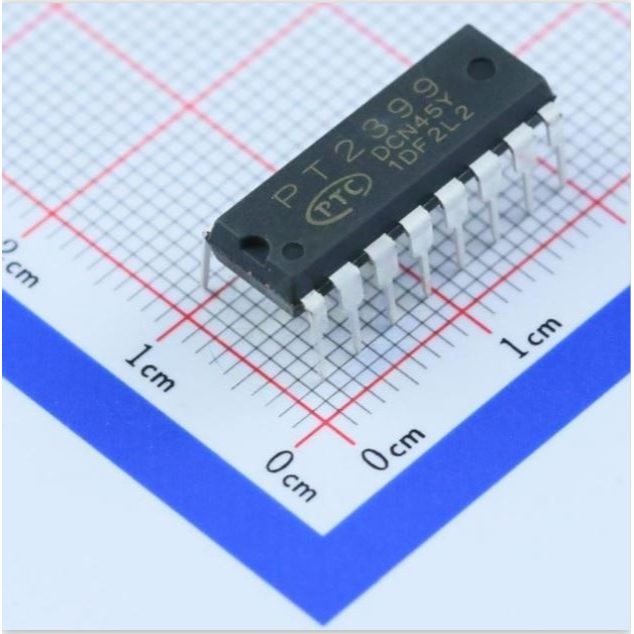

PT2399 Digital Delay Echo Audio IC
The PT2399 Digital Delay Echo Audio IC is a highly advanced echo processor IC that utilizes CMOS technology to provide high-quality audio effects. This IC processes an analog audio input signal, converting it into a bit stream using a high sample rate ADC. The bit stream is then stored in an internal 44Kbit RAM and, after processing, is de-modulated by a DAC and lowpass filter for optimal sound quality.
Features:
- CMOS technology
- Least external components
- Auto reset Function prevent POP noise
- Low noise, SNR better than 90dB
- Low distortion, THD= 0.5%
- User adjustable VCO clock frequency
Specifications:
| Parameter | Value |
|---|---|
| Supply Voltage | 4.5V to 5.5V |
| Supply Current | 30mA (typical) |
| Voltage Gain | -0.5dB to 2.5dB |
| Max Output Voltage | 2.5Vrms (THD = 10%) |
| Total Harmonic Distortion (THD) | 0.3% to 1.0% |
| Output Noise Voltage | -90dBV (typical) |
| Clock Frequency | 2MHz to 10MHz |
| Delay Time | 31.3ms to 342ms |
| Power Supply Rejection Ratio (PSRR) | -30dB to -40dB |
| Package Types | DIP-16 |
Pin Configuration:
Applications:
Applications:- Video tape recorders for audio enhancement.
- Video compact disk players for echo effects.
- Televisions for surround sound processing.
- CD players for delay functions.
- Car stereo systems for immersive audio.
- Karaoke mixers for vocal echoes.
- Electronic musical instruments for effects.
Package Include:
1x PT2399 Echo Processor IC.
