Features:
- Push button switches are among the most recognizable and frequently used types of switches.
- They are ideal for momentary actions where a quick press activates or deactivates a circuit.
- These switches are commonly found in consumer electronics, automotive systems, and control panels.
- Designed to offer both durability and tactile feedback.
- Push button switches are perfect for applications where the user needs to confirm the activation of a function.
Specifications:

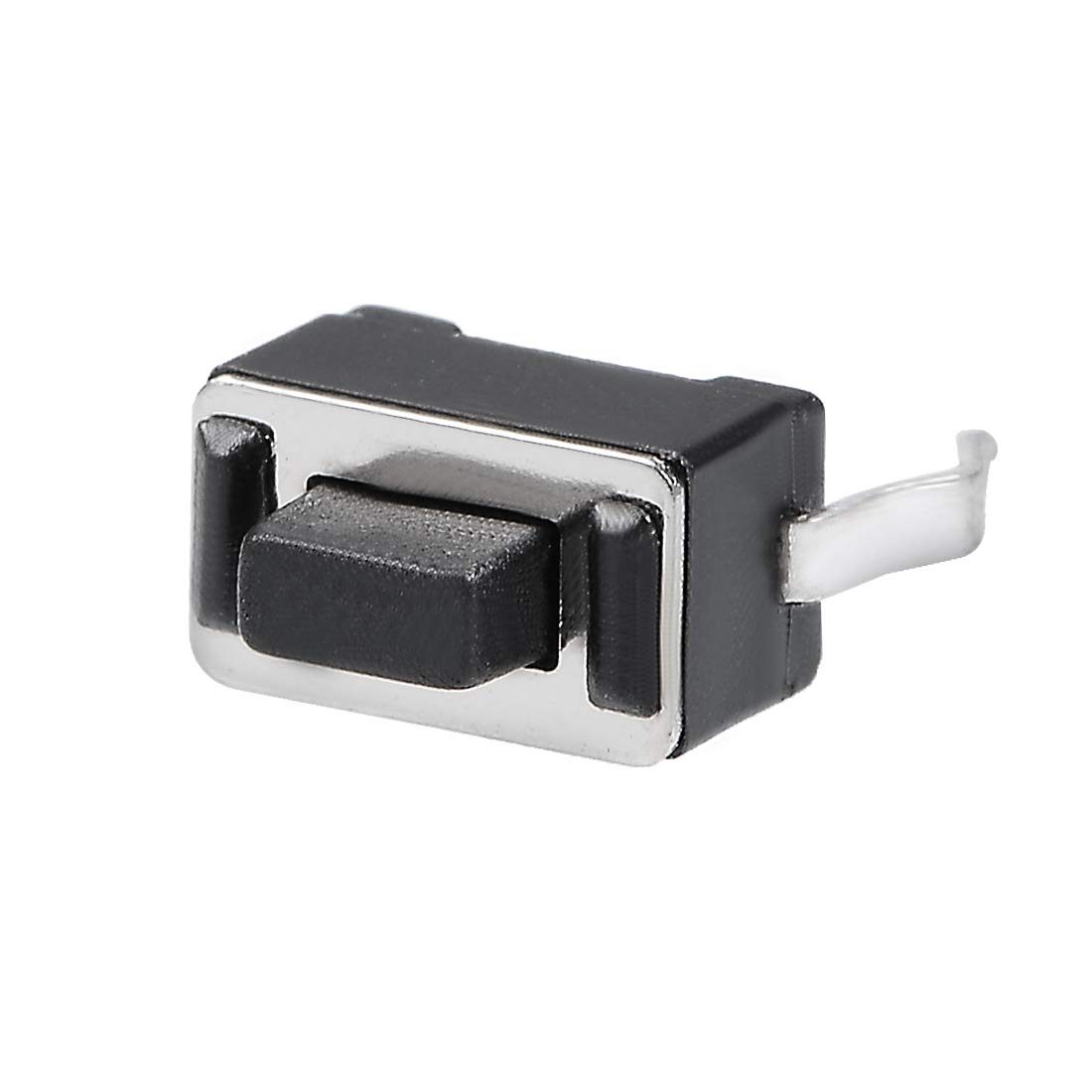

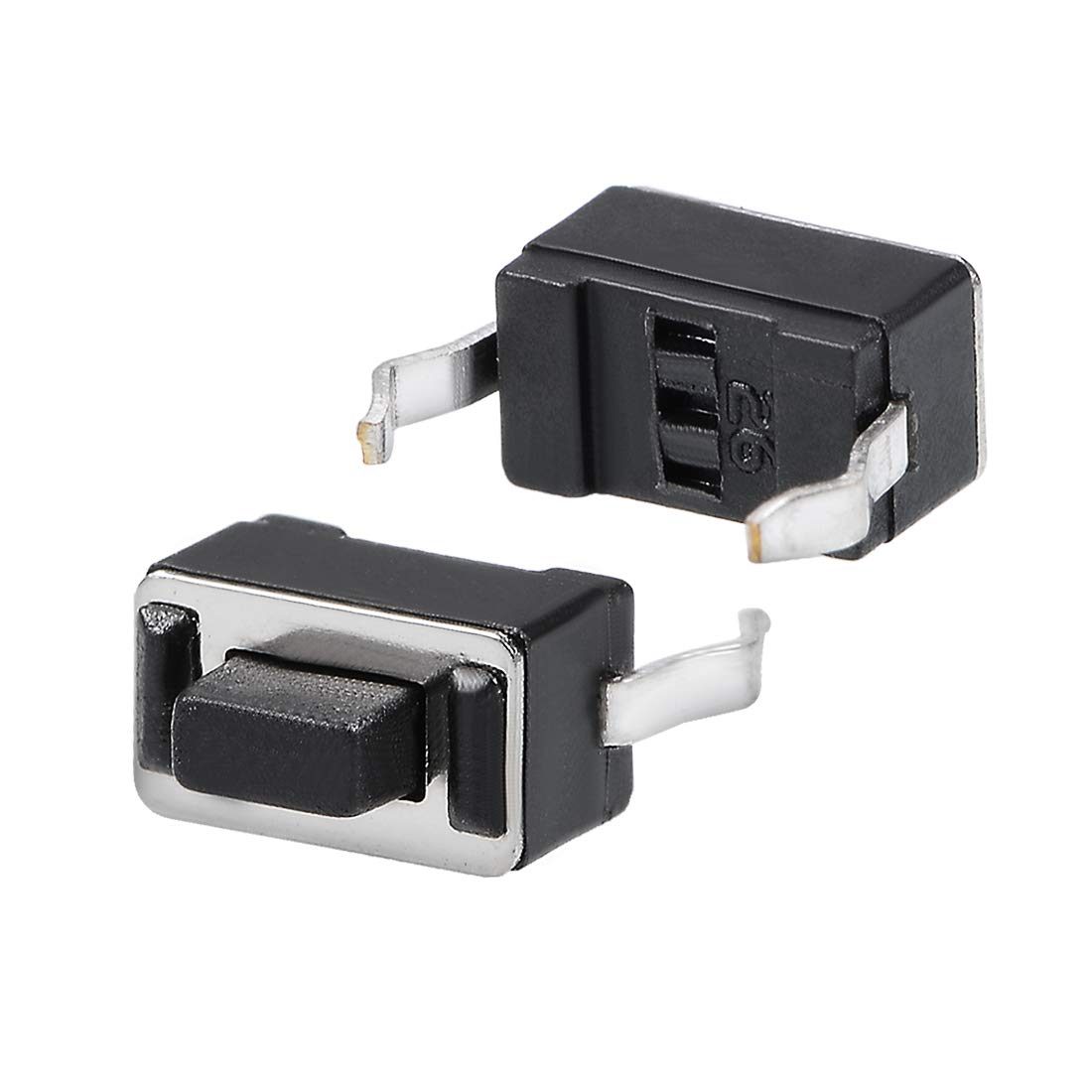

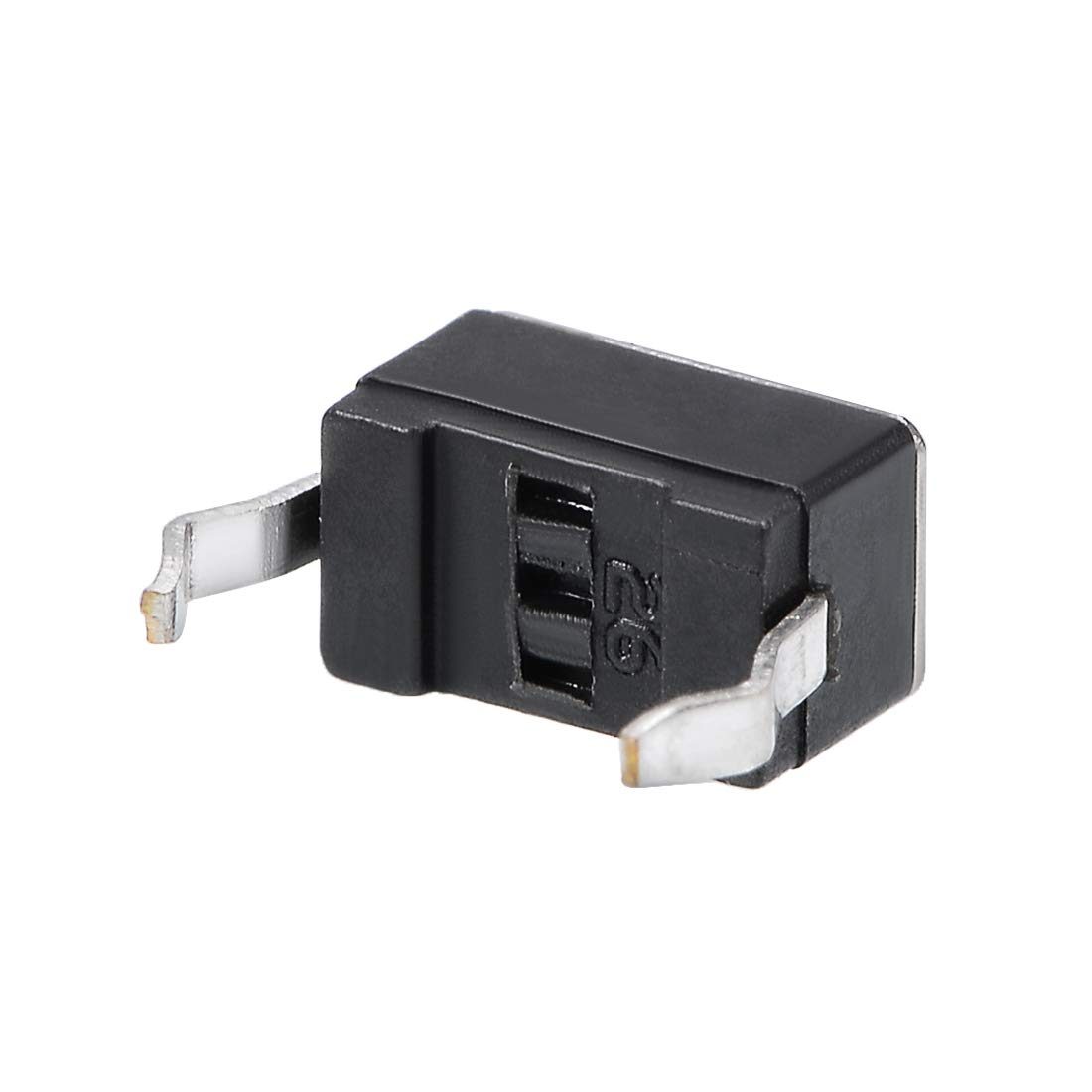

- Product type: Pushbutton
- Button Color: Black
- Number of poles: 1
- Contacts configuration: closing
- Switch position: OFF / ON
- Mechanical controller: button
- Number of contacts: 2
- Termination Style: Solder Pin
- Rated voltage(DC): 12 V
- Rated current: 50 mA
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dimensions (Length * Width * Height): 6 * 3.5 * 5 mm
- Min operational temperature: -20 °C
- Max operational temperature: 60 °C
- Weight: 2 g
Drawing and Dimensions:
