Momentary Tactile Push Button Switch 6x6x5mm Right Angle With Stent

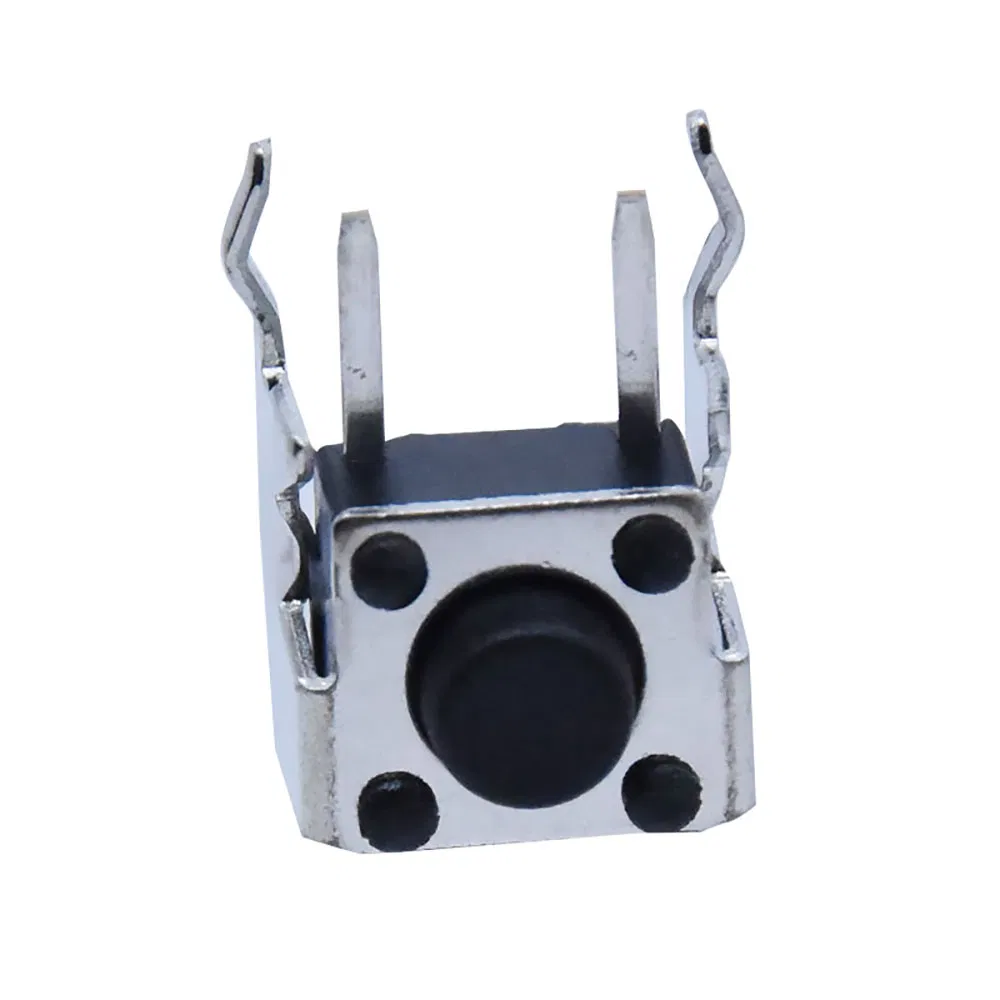

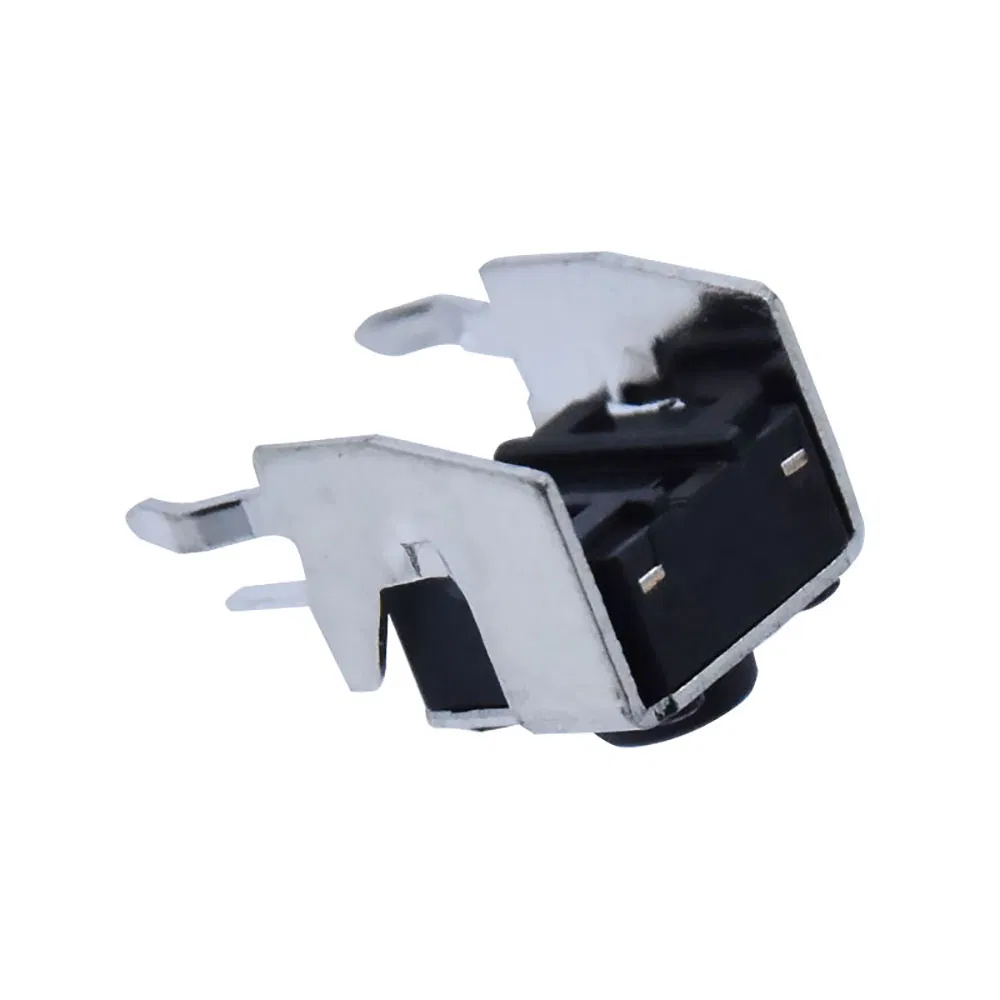

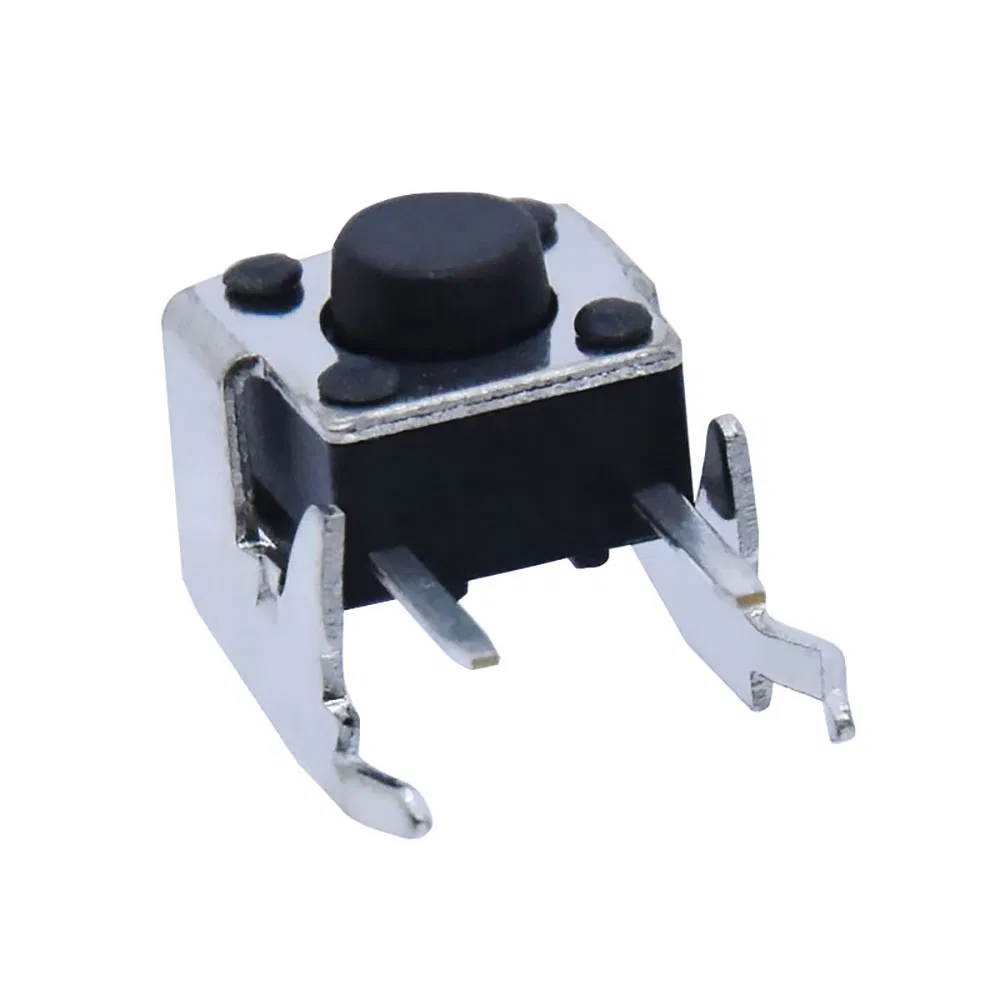

A typical 6×6×5 mm right-angle PCB-mount tactile switch is shown above. This momentary push-button is normally-open: pressing the button closes the circuit, and releasing it re-opens the circuit. The unit includes two right-angle pins and built-in support legs (“stent”) for stable soldering to a circuit board.
Features
- Momentary Push-button, Normally-Open
- Compact Right-Angle Mount
- Low Actuation Force
- High Durability
- Reliable Electrical Performance
- Wide Operating Conditions
- Standard Materials
Specifications
| Parameter | Specification | Tolerance / Notes |
|---|---|---|
| Circuit / Actuation | SPST, normally-open (momentary) | – |
| Mounting Type | Right-angle through-hole (2-pin) | With support “stent” legs |
| Rated Voltage | 12 V DC | For 50 mA current |
| Rated Current | 50 mA DC | – |
| Operating Temp. Range | −40 °C to +85 °C | – |
| Color | Black | – |
Applications
- Consumer Electronics
- Household Appliances
- User Interfaces
- DIY / Prototyping
- Security & Industrial Equipment
