Solenoid JF-0530B Push-Pull Open Frame Mini Valve Electromagnet
Solenoids are basically electromagnets: they are made of a big coil of copper wire with an armature (a slug of metal) in the middle. When the coil is energized, the slug is pulled into the center of the coil. This makes the solenoid able to pull (from one end) or push (from the other)

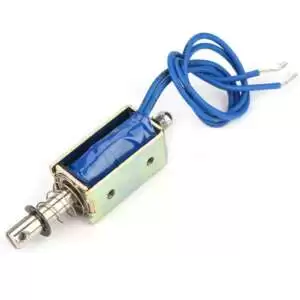

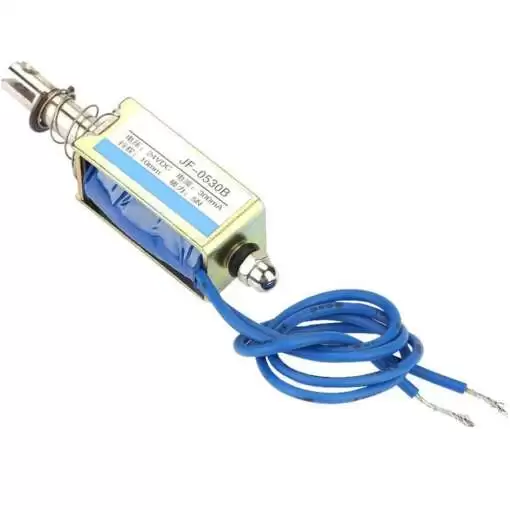

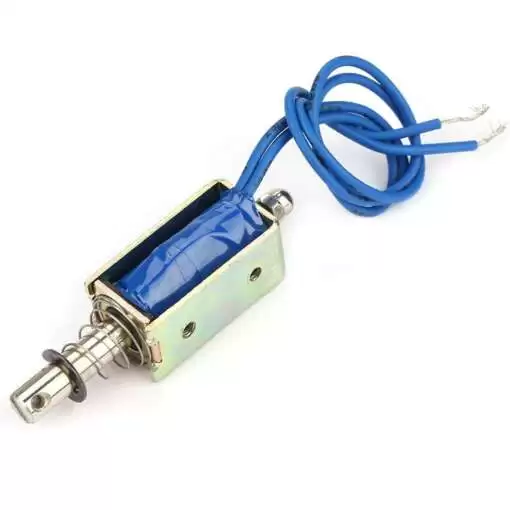

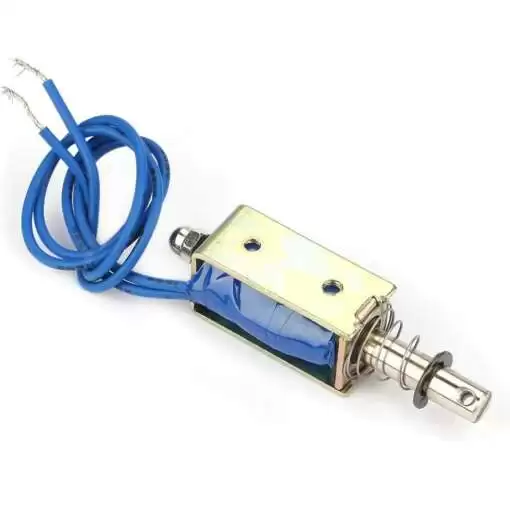

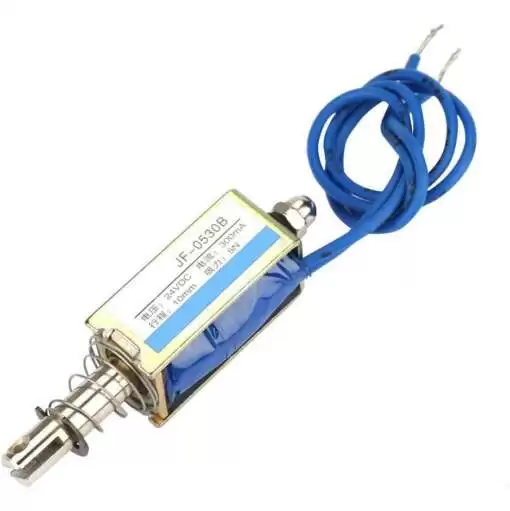

This solenoid in particular is fairly small, with a 30mm long body and a ‘captive’ armature with a return spring. This means that when activated with up to 24VDC, the solenoid moves, and then the voltage is removed it springs back to the original position, which is quite handy. Many lower-cost solenoids are only pushed type or only pull type and may not have a captive armature (it’ll fall out!) or don’t have a return spring. This one even has nice mounting tabs, it’s a great all-purpose solenoid.
Solenoids are a great way to induce linear motion for pushing, pulling, or controlling switches and levers. This solenoid is designed to work directly with 24V which makes it a great match for embedded projects. It has a throw of about 10mm and 2 M3 mounting holes on the body.
- Open frame style, open coil shape, integrated mounting board, DC electronic magnet.
- Stable and reliable.
- Durable in use.
- Used in ATMs, vending machines, electronic home appliances, embroidery machines, smart locks, juice bread machines, textile machines, cash registers, or other automatic control devices.
Notes
- Warning: solenoids should only be activated for a few seconds at a time to avoid overheating!
Technical Details
- Model: JF-0530B
- Material: Metal, Electronic Parts
- Rated Voltage: DC 24V
- Type: Pull Push
- Rated Current: 300 mA
- Force&Stroke: 5 N/10 mm
- Force: 5N / 0.5Kg / 1.1LB

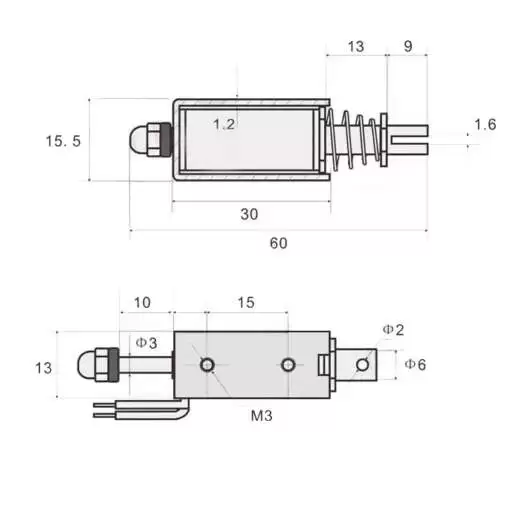

- Body Size: 30 x 13 x 15 mm (L*W*H)
- Plunger Bar Size(Dia.xL): 6 x 60 mm
- Mounting Hole Diameter: 3 mm
- Cable Length: 18 cm
- Connection type: Bare wire
