Description

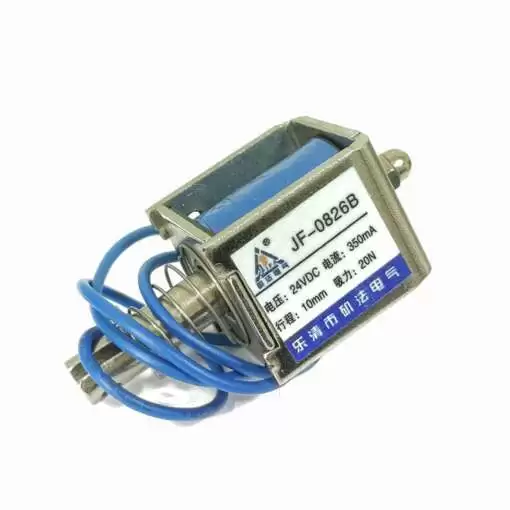

Solenoids are a great way to induce linear motion for pushing, pulling or controlling switches and levers.This solenoid is designed to work directly with 24V which makes it a great match for embedded projects. It has a throw of about 10mm and 2 M3 mounting holes on the body.
- Open frame style, open coil shape, integrated mounting board, DC electronic magnet.
- Stable and reliable.
- Durable in use.
- Used in ATM, vending machines, electronic home appliances, embroidery machines, smart lock, juice bread machine, textile machines, cash register or other automatic control devices.
Notes
- Warning: solenoids should only be activated for a few seconds at a time to avoid overheating!
Specifications
- Model: JF-0826B
- Material: Metal, electronic parts
- Color: As shown in the picture
- Race: 10mm
- Metal frame size: approx. 27 x 25 x 22mm
- Bobbin size: approx. 19 x 17mm
- Total length: approx. 55mm
- Plunger diameter: approx. 7.4mm
- Cable length: approx. 190mm
- Rated voltage ( Rated current ): 24 V DC
- Rated current: 350mA
- Force: 20N / 2Kg / 4.4LB
- Connection type: Bare wire
