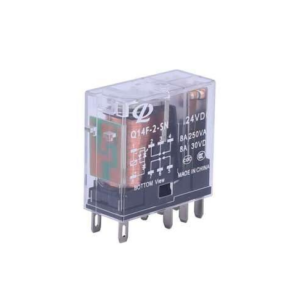

Q14F-2-SN 24VDC Power Relay 24VDC 8A 250VAC/30VDC 2Poles Non Latching 8Pin with Socket

Features:

• The Q14F-2-SN is an 8-pin Electromagnetic, Power Relay, designed for general-purpose use in a variety of applications.
•  high reliability.
• Compact dimensions.
• The capability to handle moderate loads.
• Its plug-in design ensures easy installation and maintenance, especially in environments requiring frequent replacements.
• Supports switching loads up to 8A.
• Multiple operating coil voltage options.
• Double Pole Double Throw (DPDT) or equivalent.
• 8 pins, designed for standard sockets.
• High mechanical and electrical life, ensuring long-term reliability.
• High dielectric strength and insulation resistance.
• Plug-in, compatible with socket bases for panel or DIN rail mounting.
• This relay is suitable for industrial, commercial, and residential automation systems.
• Ideal for switching moderate loads in AC and DC circuits.

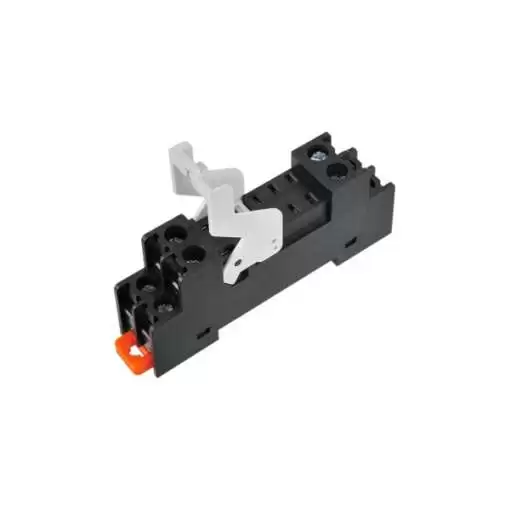

• Comes with a compatible socket for easy installation.

Pin Assignments:

The Q14F-2-SN has 8 pins arranged as follows DPDT layout:

Pin 1 : Coil Terminal 1

Pin 8 : Coil Terminal 2

Pin 3 : Common (Pole 1)

Pin 4 : Normally Open (NO) Contact 1

Pin 2 : Normally Closed (NC) Contact 1

Pin 6 : Common (Pole 2)

Pin 5 : Normally Open (NO) Contact 2

Pin 7 : Normally Closed (NC) Contact 2

Specifications:

• Relay Type: Electromagnetic, Power Relay
• Model: Q14F-2-SN 24VDC
• Number of Poles: Double pole
• Configuration: Non-latching (requires continuous voltage to maintain the state)
• Contact Form:  Double Pole Double Throw (DPDT)
• Mounting: Comes with a compatible socket for easy installation
• Contact Rating: 8A at 250VAC/30VDC
• Coil Voltage:  24 VDC
• Coil Resistance(Approx.): 1 KΩ
• Max Switching Voltage: 250VAC or 30VDC
• Insulation Resistance: ≥100MΩ at 500VDC
• Life Expectancy:
  • Mechanical: ≥10 million operations
  • Electrical: ≥100,000 operations (depending on load)
• Operating Time: ≤20 ms
• Release Time: ≤10 ms
• Operating Temperature: -25°C to +70°C

Applications:

• Industrial Control Systems.
• Home Appliances.
• Power Management.
• Lighting Systems.
• Telecommunications.
• HVAC systems.

Datasheet:

Q14F-2-SN-24VDC
