Raspberry Pi 4 Computer Model B – 8GB RAM – Made in UK
The Raspberry Pi 4 Computer Model B – 8GB RAM – Made in UK model B, wi-fi, 2x micro HDMI, USB-C, USB 3.0, 8 GB of RAM 1.5 GHz is the latest product in the latest version within the Raspberry Pi range. The minicomputer offers improvements in processor speed, multimedia performance, memory, and connectivity compared to the previous generation Raspberry Pi 3 Model B + while maintaining backward compatibility and comparable power consumption. For the end user, Raspberry Pi 4 Model B offers desktop performance comparable to entry-level x86 PC systems.
The main features of this board are the powerful 64-bit quad-core processor, dual display support with resolutions up to 4K via 2 micro-HDMI ports, hardware video decoding up to 4Kp60, 8GB RAM, dual-band 2.4 / 5 .0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0 and PoE capabilities (via a separate PoE HAT add-on). The dual-band wireless LAN and Bluetooth have a modular conformity certification, which allows the board to be designed into finished products with significantly less conformity testing.
Features:
- Quad-core 64-bit ARM Cortex-A72 CPU.
- 8GB LPDDR4 RAM for high-performance tasks.
- Dual display support via micro-HDMI (up to 4K).
- Built-in Wi-Fi and Bluetooth connectivity.
- Gigabit Ethernet for fast networking.
- USB 3.0 and USB 2.0 ports.
- 40-pin GPIO header for hardware interfacing.
- Camera (CSI) and display (DSI) interfaces.
- Compact credit-card-sized design.
Specification:
| BASIC INFORMATION | |
| Model: | Raspberry Pi 4 model B |
| Edition: | 6 – 2019 r. |
| TECHNICAL SPECIFICATION | |
| Chipset processor: | Broadcom BCM2711 64-bit |
| Core: | Quad-Core ARM Cortex-A72 |
| Operating systems: | Linux Raspbian
Windows 10 loT |
| Clocking: | 1.5 GHz |
| Architecture: | ARMv8-A |
| Memory RAM: | 8 GB LPDDR4 |
| Memory: | microSD card |
| GPIO socket: | 40-pin connector (2×20 pin)
raster 2.54 mm |
| Power supply: | · 5.0 V / 3 A via USB C· 5 V by GPIO· PoE by means of additional overlay |
| Dimensions of the tiles: | 85 x 56 x 17 mm |
| INTERFACES | |
| USB interface: | 2x USB 2.0 – socket type A
2x USB 3.0 – socket type A |
| Network interface: | Ethernet port 100/1000 Mbps |
| WiFi interface: | Dual Band 2.4 GHz and 5 GHz
802.11 b/g/n/ac |
| Bluetooth: | Low Energy, BLE 5 |
| Camera: | CSI socket |
| Touchscreen display: | DSI socket |
| Video: | 2 x microHDMI
H.265 4K 60 fps H.264 1080p 30 fps OpenGLES 1.1, 2.0, 3.0 |
| Communication: | UART, SLEEPING, I2C, GPIO |

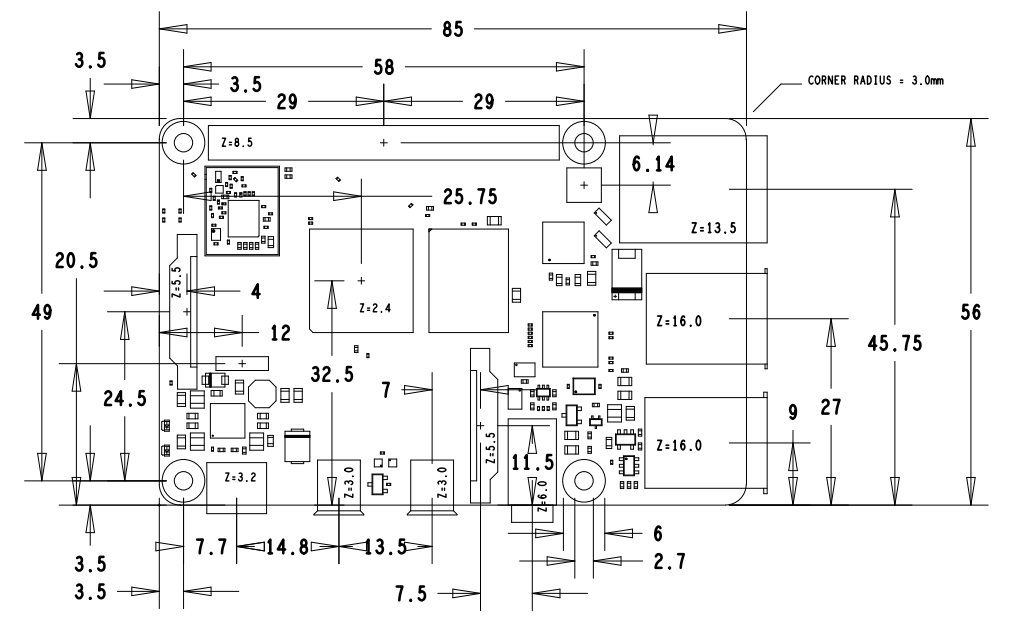

Raspberry Pi 4 model B – top view.
Package Included:
- 1x Raspberry Pi 4 Computer Model B – 8GB RAM
