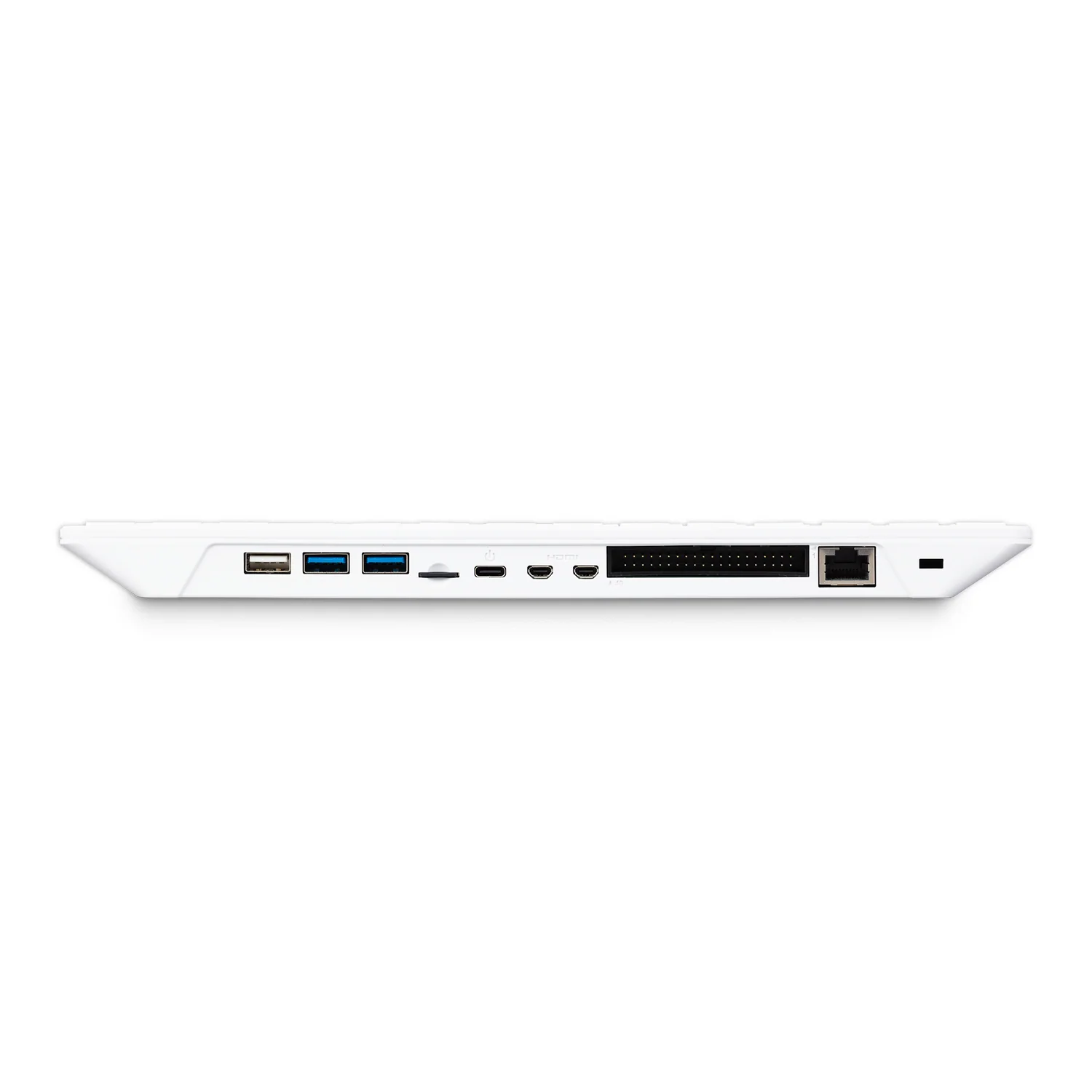

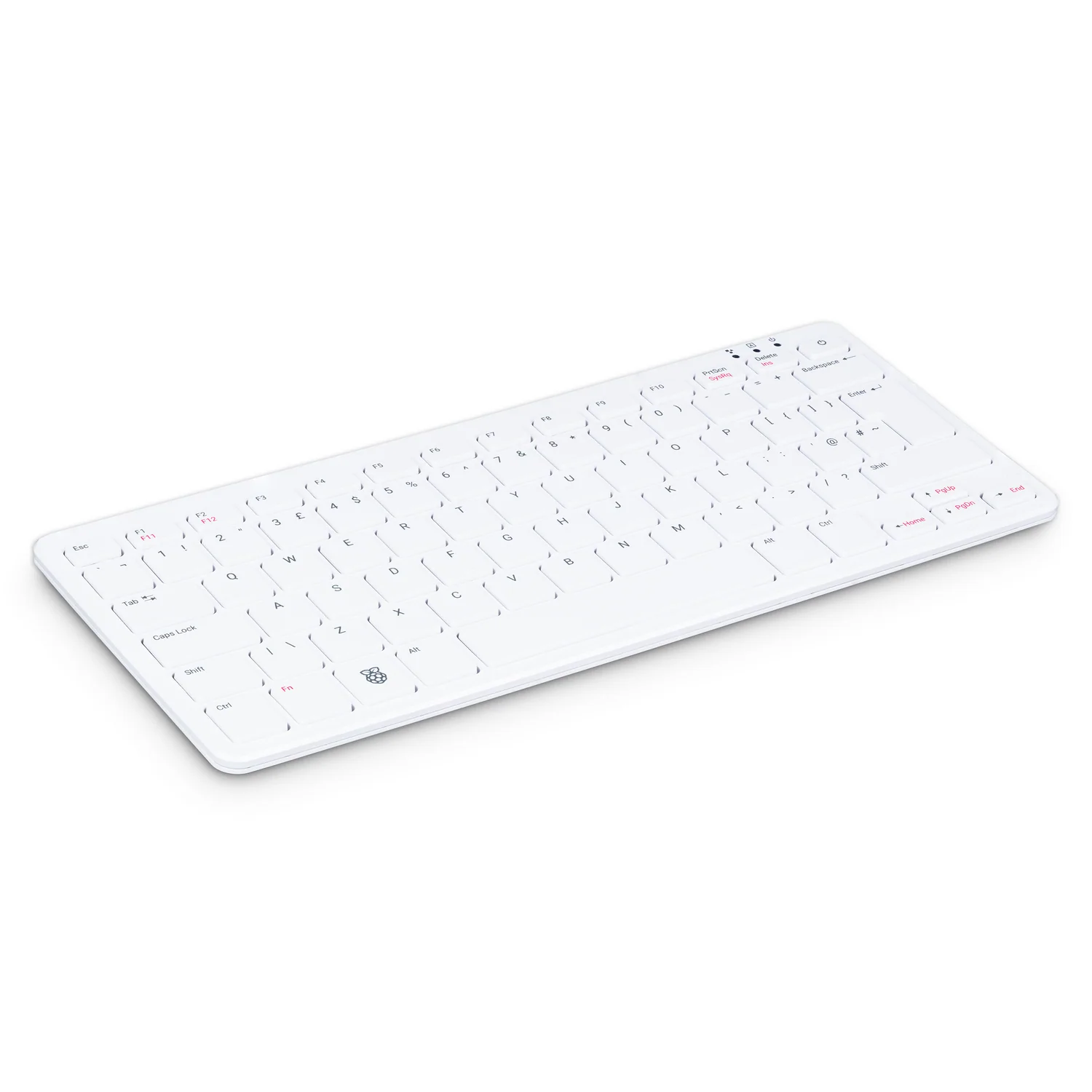

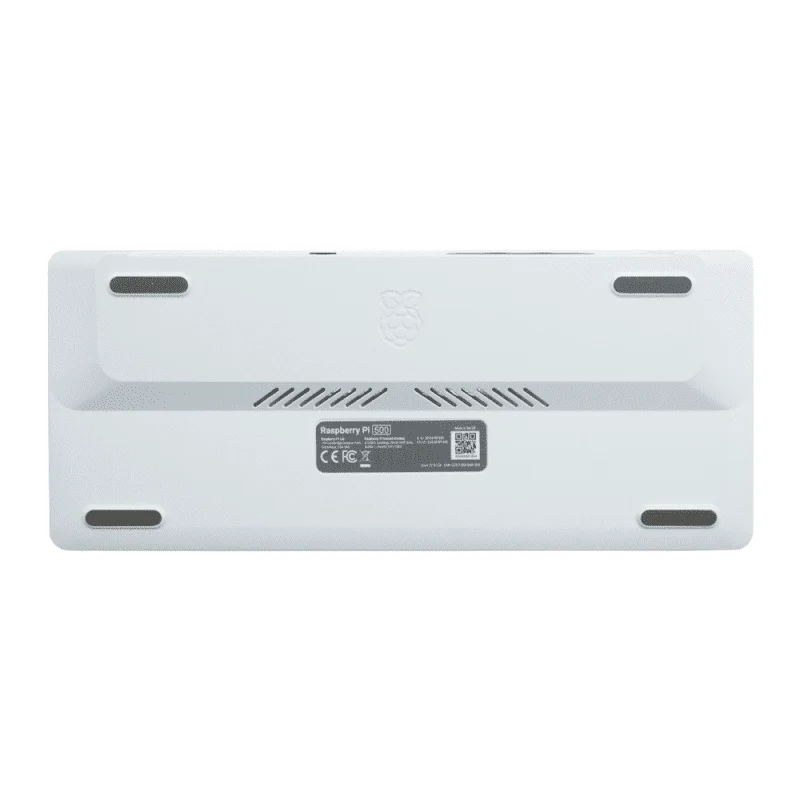

Raspberry Pi 500 Keyboard US Layout – 8GB RAM White
The Raspberry Pi 500 Keyboard US Layout – 8GB RAM White is a high-performance, all-in-one personal computer built into a sleek and compact keyboard design. Based on the advanced architecture of the Raspberry Pi 5 platform, this device integrates computing, connectivity, and user interface into a single efficient unit, making it ideal for both professional and educational applications.
Powered by a quad-core 64-bit ARM Cortex-A76 processor running at 2.4GHz and paired with 8GB LPDDR4X RAM, the Raspberry Pi 500 delivers exceptional performance for multitasking, programming, and multimedia applications. The integrated Video Core VII GPU enables smooth graphics rendering and supports dual 4K display output, making it suitable for modern desktop environments and high-resolution workflows.
Features:
- Quad-core 2.4 GHz 64-bit Arm Cortex-A76 processor with cryptography extensions and VideoCore VII GPU supporting OpenGL ES 3.1 and Vulkan 1.3.
- 8 GB LPDDR4X-4267 SDRAM for smooth multitasking and memory-intensive applications.
- Built-in one-piece aluminum heatsink for excellent passive cooling and sustained performance.

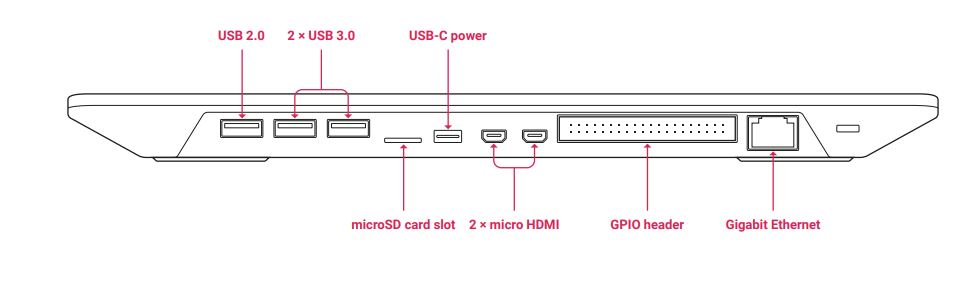

- Dual micro HDMI ports delivering up to 4Kp60 output on two independent displays.
- Dual-band 2.4 GHz and 5.0 GHz 802.11ac Wi-Fi plus Bluetooth 5.0 with BLE.
- Gigabit Ethernet, 2 × USB 3.0 ports (simultaneous 5 Gbps), and 1 × USB 2.0 port.
- Horizontal 40-pin GPIO header for full Raspberry Pi HAT and project compatibility.
- 32 GB microSD card slot with high-speed SDR104 and command queuing support
Specifications:
| Parameter | Value |
|---|---|
| Processor | 2.4GHz quad-core 64-bit Arm Cortex-A76 |
| RAM | 8GB LPDDR4X-4267 SDRAM |
| GPU | Video Core VII |
| Storage | 32GB microSD (Class A2, pre-loaded with Raspberry Pi OS) |
| Wireless | Dual-band 802.11ac Wi-Fi, Bluetooth 5.0/BLE |
| Ethernet | Gigabit |
| USB Ports | 2x USB 3.0,1x USB 2.0 |
| Video Output | 2x micro HDMI (4Kp60) |
| GPIO | 40-pin horizontal header |
| Power Input | 5VDC,5A via USB-C |
| Dimensions | 286mm x 122mm x 23mm |
| Operating Temperature | 0°C to +50°C |
| Keyboard Layout | US ANSI |
Configuration:
Applications:
- Desktop computing and office productivity.
- Programming and software development.
- STEM education and training.
- IoT and embedded systems development.
- Home automation projects.
- Media center and entertainment systems.
- Robotics and hardware prototyping.
Package Include:
- 1x Raspberry Pi 500 Keyboard Unit.
- 1x 32GB microSD card.
