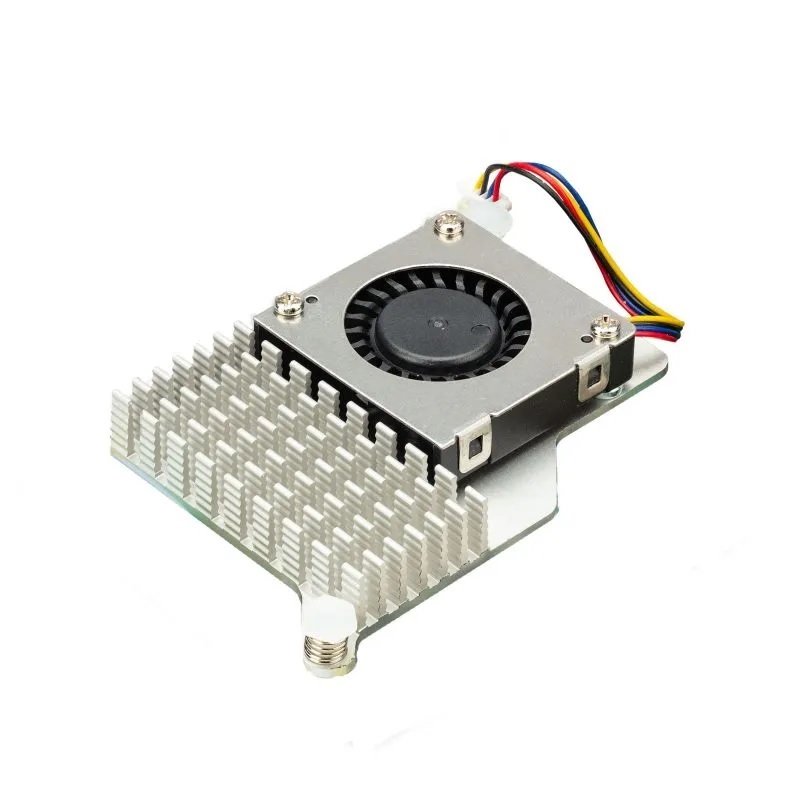

Raspberry Pi Active Cooler – Heatsink + Fan for Raspberry Pi 5

Raspberry Pi Active Cooler – Heatsink + Fan for Raspberry Pi 5

The Raspberry Pi Active Cooler is a meticulously engineered accessory tailored for the Raspberry Pi 5, designed to maintain optimal operating temperatures during intensive computational tasks. This cooling solution integrates a high-quality, single-piece anodized aluminum heatsink with a temperature-controlled blower fan, ensuring effective heat dissipation to prevent thermal throttling and sustain peak performance of the Raspberry Pi 5.

Features:

• Single-piece anodised aluminium heatsink.
• Heatsink-mounted, temperature-controlled blower fan attached by three screws.
• Spring-loaded push pins for mounting onto Raspberry Pi 5.
• Pre-applied thermal pads for heat transfer.

Specification:

• Input voltage: 5VDC supplied via four-pin fan header on Raspberry Pi 5
• Fan speed control: Pulse width modulation control with tachometer
• Maximum airflow: 1.09 CFM
• Maximum fan speed: 8000 RPM +/- 15%
• Product material: Anodised aluminium

Applications:

• Overclocking the Raspberry Pi 5 for enhanced performance.
• Running computationally intensive tasks such as data processing or machine learning.
• Operating in environments with high ambient temperatures.
• Using the Raspberry Pi 5 in enclosures with limited airflow.
• Ensuring reliability and longevity of the device under continuous operation.

Package Include:

1x Raspberry Pi Active Cooler – Heatsink + Fan for Raspberry Pi 5
