Description

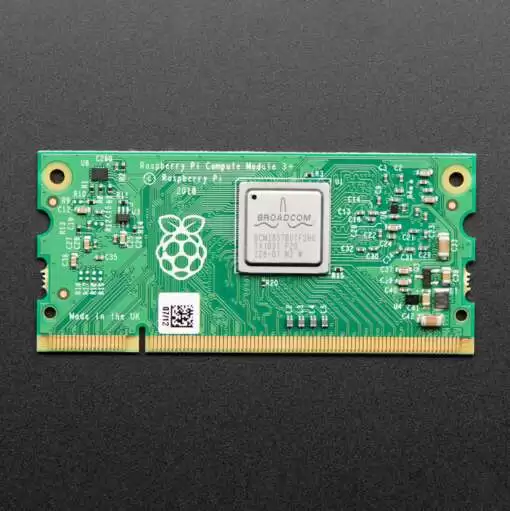

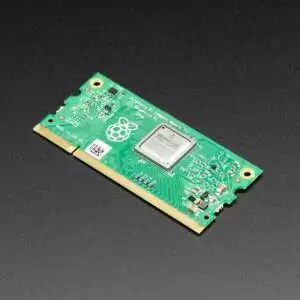

Miniature version of the popular minicomputer Raspberry Pi 3+. It has the abilities of the classic raspberry with interfaces on connectors DDR2-SODIMM. CM3 has a processor BCM2387B0 Broadcom quad-core 64-bitCortex-A53 with a clock frequency of 1.2 GHz, 1 GB of RAM,32 GB of memory eMMC and numerous peripherals. It has no connectors of type USB, HDMI, etc.
The module design allows to use it where the use of a large version by its dimensions was impossible. Most often used in multimodule clusters. |
Comparison of the module with The Raspberry Pi 3B+
Specification
- CPU: Broadcom BCM2837 64-bit
- Core: Quad Core ARM Cortex A53
- Clock Frequency: 1.2 GHz
- RAM: 1 GB LPDDR2
- Flash eMMC memory: 32 GB
- Connector: 200-pin SODIMM
- 48 GPIO pins
- 2 x I2C
- 2 x SPI
- 2 x UART
- 2 x SD / SDIO
- 1 x HDMI 1.3 a
- 1 x USB2 HOST / OTG
- 1 x DPI
- 1 x interface NAND
- 1 x 4-line interface CSI
- 1 x 2-line CSI interface
- 1 x 4-line interface DSI
- 1 x 2-line interface DSI
- 2 mounting holes of 2.3 mm: gauge of 61,6 mm

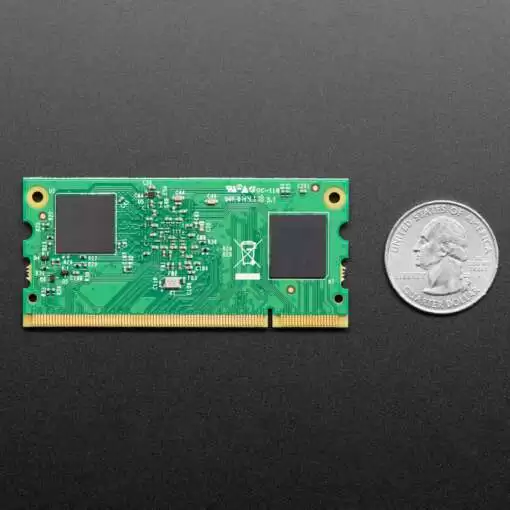

- Module dimensions: 67,6 x 31 mm
A detailed description of the module is available in the technical documentation.
The module performance based on an earlier version.
