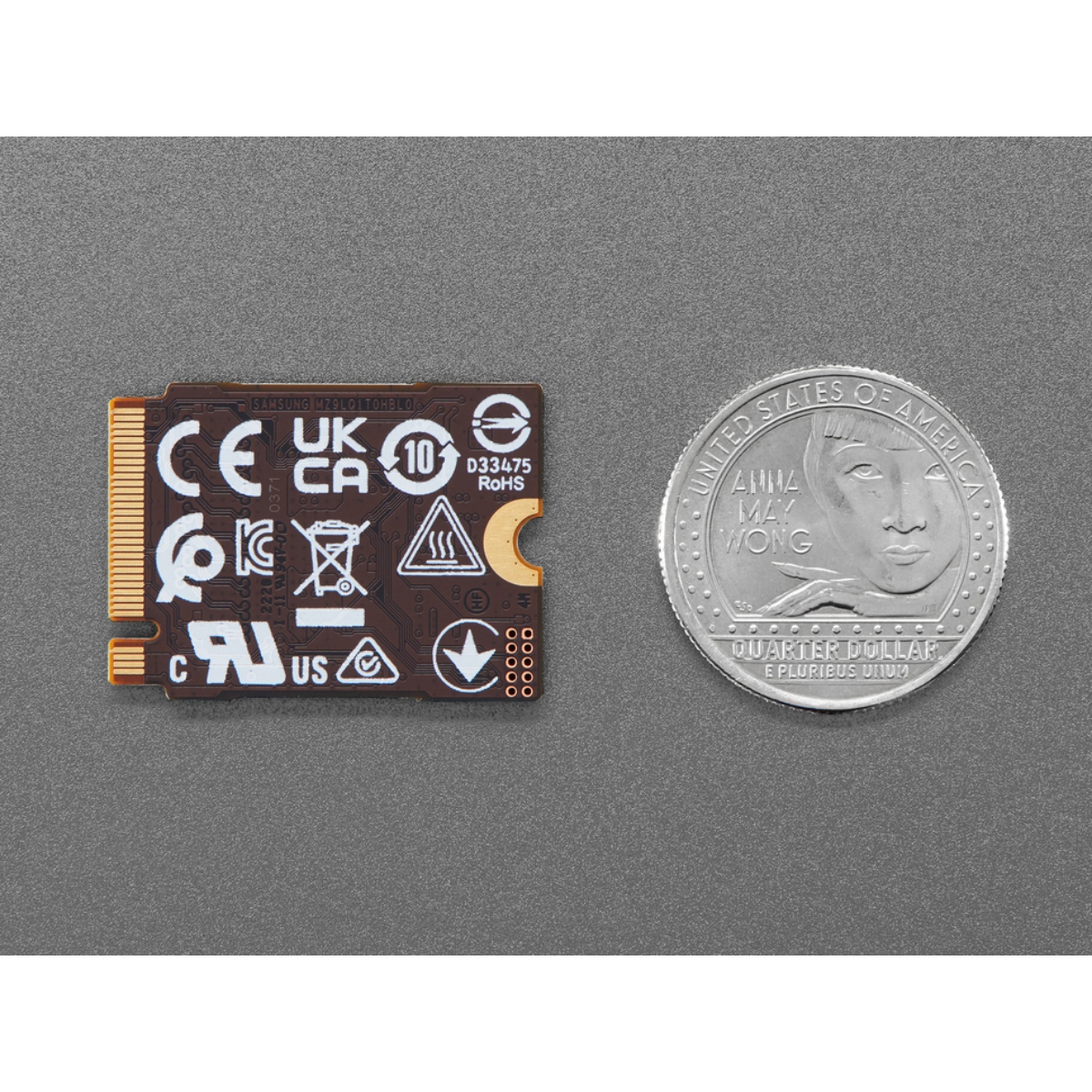

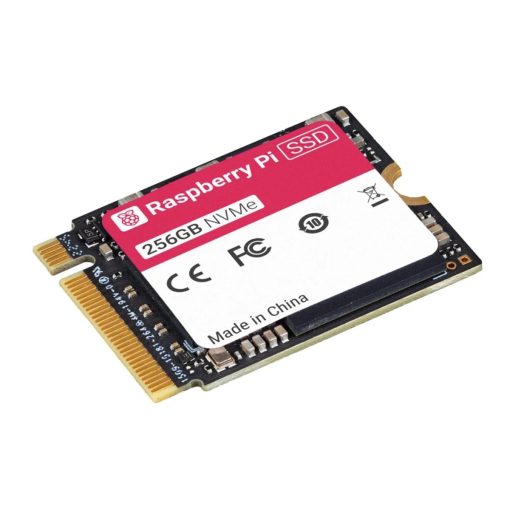

Raspberry Pi NVMe SSD 256GB
The Raspberry Pi SSD 256GB offers high-performance storage in a compact form factor, specifically tuned for the Raspberry Pi 5. This official solution unlocks significantly higher I/O throughput compared to microSD cards, delivering up to 40,000 IOPS for 4kB random reads and 70,000 IOPS for 4kB random writes over a 1-lane PCIe interface.
Features:
- Official Raspberry Pi-branded 256 GB NVMe SSD.
- PCIe Gen3 compliant with NVMe 1.4 register/command set.
- Up to ~40k IOPS (4 kB random reads) and ~70k IOPS (4 kB random writes) for the 256 GB version.
- Fully compatible with the Raspberry Pi 5’s onboard PCIe lane when used with suitable adapter.
Specifications:
| Parameter | Value |
|---|---|
| Storage Capacity | 256GB |
| Interface Protocol | NVMe 1.4 |
| Bus Standard | PCIe Gen 3 |
| Form Factor | M.2 2230 |
| Random Read (4kB) | 40k IOPS |
| Random Write (4kB) | 70k IOPS |
| Operating Temperature | 0°C to 70°C ambient |
| Dimensions (L x W x H) | 30mm × 22mm × 1.35mm |
Applications:
- Serving as the primary, high-speed boot drive for Raspberry Pi 5 systems.
- Running I/O intensive server applications and local database hosting.
- High-speed data logging and processing in embedded systems and robotics.
- Providing robust, responsive storage for desktop computing tasks on the Raspberry Pi.
- Creating reliable development and testing environments on the single-board computer platform.
Package Include:
1x Raspberry Pi NVMe SSD 256GB
