Rectangular Blue LED TH 2x5x5mm 467-472nm
Compact 2×5 mm rectangular red LED (diffused lens) offering uniform indicator light, low power draw, rugged design and wide viewing angle for panel indicators.
0.75 EGP
Buy NowRectangular Blue LED TH 2x5x5mm 467-472nm

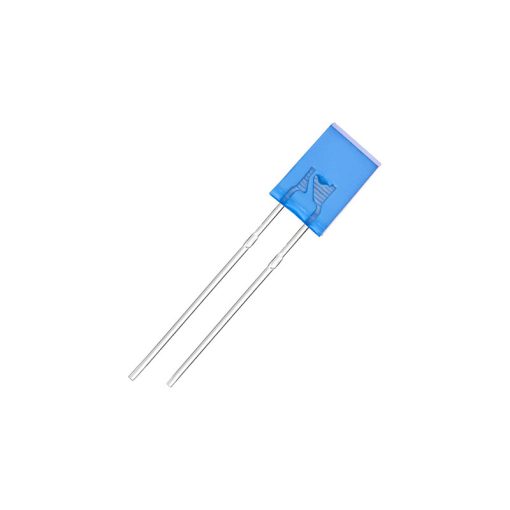

The L-113HDT is a compact rectangular LED packaged in a 2 × 5 × ~5 mm through-hole body designed for clear, consistent visual indication. With a diffused lens and a low-profile rectangular form, it provides uniform light distribution across the face of the package, making it visually stable from a variety of viewing angles. Its construction emphasizes mechanical robustness and long operational life, suitable for repeated indicator duty in consumer and industrial products.
Internally the device is built to deliver a steady, solid-state red emission with controlled optical output and a moderately wide viewing angle. The device’s small footprint and rectangular shape allow it to be used where compact, aligned visual indicators are needed for example, in front-panel indicators or status bars where several LEDs are mounted in a row. The diffused lens softens the point-source appearance for an even, less glaring visual effect.
Thermally and electrically the lamp is intended for routine indicator use with modest power and soldering requirements, enabling straightforward PCB assembly and reliable operation over a wide temperature range. The L-113HDT’s practical, no-frills design focuses on dependable illumination, easy mechanical integration, and predictable visual performance in everyday indicator roles.
Features:
- Low power consumption.
- Reliable and rugged.
- Excellent uniformity of light output.
- Suitable for level indicator.
- Long life solid state reliability.
- RoHS compliant.
Specifications:
| Parameter | Value (from PDF) |
|---|---|
| Part No. / Lens / Dice: | L-113HDT — RED DIFFUSED (GaP). |
| Viewing angle (2θ1/2): | 110°. |
| Luminous intensity (Iv) @ 10 mA: | Min 0.4 mcd — Typ 1 mcd. |
| Peak wavelength (λpeak): | 700 nm (IF = 20 mA). |
| Dominant wavelength (λD): | 660 nm (IF = 20 mA). |
| Spectral half-width (Δλ1/2): | 45 nm. |
| Forward voltage (VF): | Typ 2.25 V — Max 2.5 V (IF = 20 mA). |
| Reverse current (IR): | 10 µA (VR = 5 V). |
| Capacitance: | 40 pF (VF = 0 V; f = 1 MHz). |
| Power dissipation: | 62.5 mW. |
| DC forward current (continuous): | 25 mA. |
| Peak forward current (pulse): | 130 mA (pulse conditions given in datasheet). |
| Reverse voltage: | 5 V. |
| Operating / storage temp. : | -40 °C to +85 °C. |
| Lead solder temperature: | 260 °C (3 s or 5 s conditions specified). |
Applications:
- Status and Power Indicators.
- Backlighting for Panels and Displays.
- Automotive Interior and Dashboard Lighting.
- Decorative and Aesthetic Lighting.
- Signal and Attention-Grabbing Alerts.
- Scale and Switch Illumination.
- Custom Message Board Pixels.
- Educational Electronics Kits.
- Prototype and Breadboard Visual Feedback.
- Specialty and Artistic Light Sculptures.
Package Contents:
- 1x Rectangular Blue LED TH 2x5x5mm 467-472nm
Datasheet
| Weight | 2 g |
|---|---|
| Dimensions | 20 × 10 × 10 mm |
