Rectangular Green LED TH 2*5*5mm 525-530nm

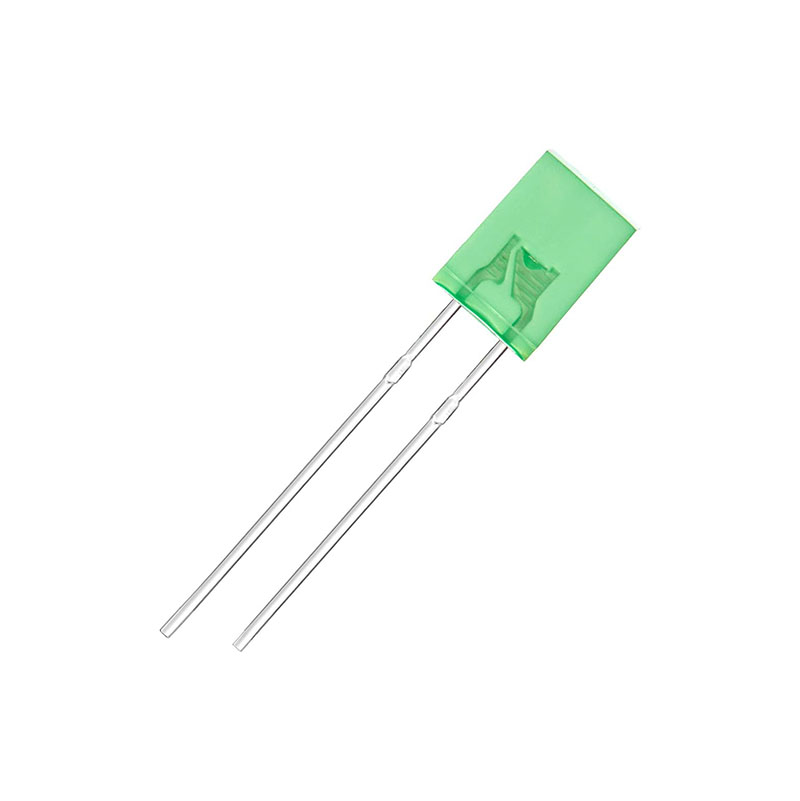

This rectangular green LED is crafted in a 2 × 5 × 5 mm through-hole package, delivering a flat rectangular viewing surface with diffused lens to provide smooth, even illumination. The form factor makes it suitable for visual indication in compact spaces where a traditional round LED might stand out. With its green emission, it offers a crisp visual cue for system status, power indication, or user feedback.
Internally, the device utilises a gallium-phosphide (GaP) green light-emitting die, packaged to maintain consistent uniformity across the lens surface. The diffused plastic lens ensures that from various viewing angles, the light appears even and less “spot-like”, resulting in a more comfortable, stable visual appearance. This design supports integration into panels, indicator arrays, or equipment where a clean aesthetic and reliable status indication matter.
Mechanically and electrically the LED is designed for durability in standard indicator roles: it supports typical through-hole mounting, straightforward soldering, and long operational life thanks to solid-state construction. Considering its modest power draw and standard thermal ratings, the LED offers a dependable solution for board-mounted status lights, control panels or other user-interface indicators where a clear green signal is required.
Features:
- Low power consumption.
- Reliable and rugged.
- Excellent uniformity of light output.
- Suitable for level indicator.
- Long life solid-state reliability.
- RoHS compliant.
Specifications:
| Parameter | Value |
|---|---|
| Peak wavelength (λₚₑₐₖ): | 565 nm typical (IF = 20 mA) |
| Dominant wavelength (λD): | 568 nm typical (IF = 20 mA) |
| Spectral half-width (Δλ½): | 30 nm typical |
| Forward voltage (VᴲF): | Typ 2.2 V, Max 2.5 V at IF =20 mA |
| Reverse current (Iᴿ): | 10 µA at VR = 5 V |
| Viewing angle (2θ1/2): | 110° typical |
| Power dissipation: | 62.5 mW max |
| DC forward current: | 25 mA max |
| Operating/storage temperature: | –40 °C to +85 °C |
Applications:
- Level indicators.
- Board-mounted status lamps.
- Panel indicator lights.
Package Contents:
- 1x Rectangular Green LED TH 2*5*5mm 525-530nm
