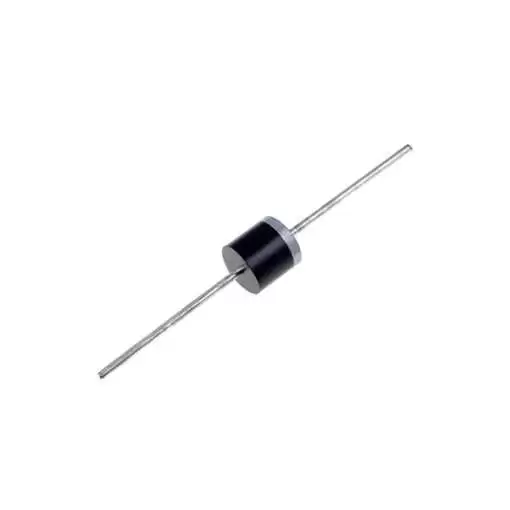

Rectifier Diode 6A 1000V 6A10

2.50 EGP

Buy Now
Availability: In Stock
SKU:3593655176550
Features:
  • Low cost construction
  • Low forward voltage drop
  • Low reverse leakage
  • High forward surge current capability
  • High-temperature soldering guaranteed 260℃/10 seconds/.375”(9.5mm)lead length at 5 lbs(2.3kg) tension
Specifications:
SYMBOLS 6A10 UNITS
Maximum Repetitive Peak Reverse Voltage VRRM 1000 Volts
Maximum RMS Voltage VRMS 700 Volts
Maximum DC Blocking Voltage VDC 1000 Volts
Maximum Average Forward Rectified Current

0.375”(9.5mm) lead length at TA= 60℃

I(AV) 6.0 Amps
Peak Forward Surge Current

8.3mS single half sine-wave superimposed on

rated load (JEDEC method)

IFSM 300 Amps
Maximum Instantaneous Forward Voltage @ 6.0A VF 0.95 Volts
Maximum DC Reverse Current at Rated DC Blocking Voltage per element TA = 25℃ IR 10 µAmps
TA = 100℃ 1.0 mAmps
Maximum Full Load Reverse Current, full cycle average

0.375”(9.5mm)lead length at TL=105℃

IR(AV) 1.0 mAmps
Typical Junction Capacitance (Note 1) CJ 150 pF
Typical Thermal Resistance (Note 2) RθJA 10 ℃/W
Operating Junction Temperature Range TJ,TSTG -55 to +150
6A10 Datasheet
