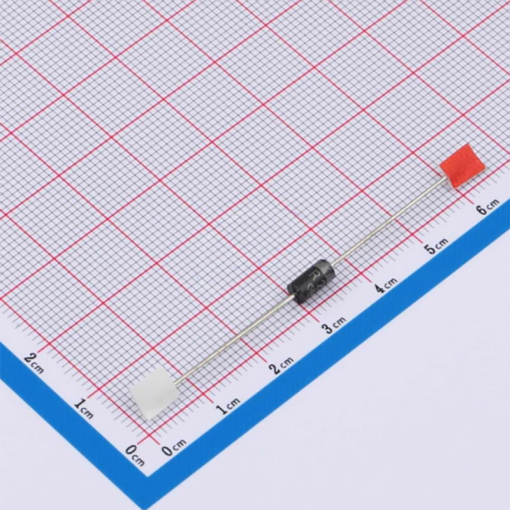

Rectifier Diode FR207 2A 1kV 1V@2A DO-15

Rectifier Diode FR207 2A 1kV 1V@2A DO-15

The FR207 expresses a straightforward, purpose-driven character: a compact fast-recovery rectifier intended for robust power-handling tasks. Its molded DO-15 body and plated leads present a no-fuss industrial look, built to be mounted in any orientation and soldered reliably into assemblies. The device reads as engineered for resilience you notice its emphasis on handling surge events and sustained currents without drama.

In operation the FR207 behaves like a practical workhorse: conservative enough to be trusted in repetitive rectification duties yet quick enough to limit switching loss where speed matters. Its electrical temperament is balanced modest forward drop under load and controlled reverse behavior which makes it feel predictable and stable in mixed resistive or inductive circuits.

Overall, the FR207 projects utility and durability rather than novelty: a simple, well-executed rectifier diode whose physical and electrical design choices favor reliability and long service life in everyday power electronics. It’s the kind of component that quietly does its job across many designs without calling attention to itself.

Features:

• Diffused Junction.
• Low Forward Voltage Drop.
• High Current Capability.
• High Reliability.
• High Surge Current Capability.

Specifications:

Pinout Diagram:

Footprint Diagram:

Applications:

• Power rectification in high-voltage supplies.
• Free-wheeling / snubber diode in power converters.
• Reverse-polarity protection in HV circuits.
• Surge-handling in industrial power equipment.

Package Contents:

• 1x Rectifier Diode FR207 2A 1kV 1V@2A DO-15

Datasheet
