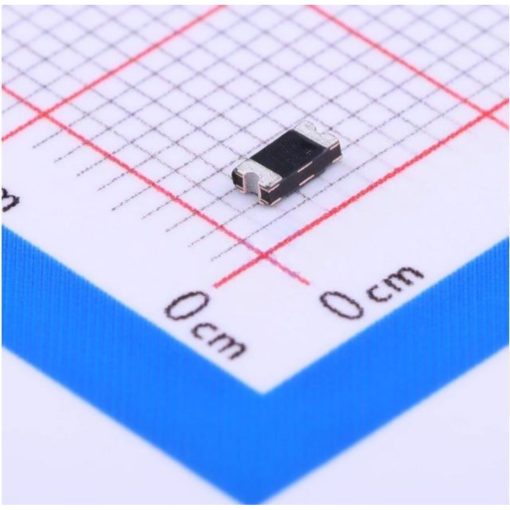

Resettable Fuses PTC 16V 250mA WT-1206-025 SMD
The WT1206-025 is a surface-mount PPTC resettable fuse engineered to protect electronic circuits from overcurrent events. It features a hold current of 250mA, meaning it can carry up to 250mA without tripping, and a trip current of 500mA, at which it transitions to a high-resistance state to limit current flow. The device supports a maximum voltage of 16VDC and can interrupt fault currents up to 100A, making it suitable for low-power applications requiring reliable protection.
Features:
- Compact 1206 package saves board space.
- RoHS compliant and lead-free.
- Halogen-free.
- Fast response to fault currents.
- Symmetrical design for easy integration.
Specifications:
|
Parameter |
Value |
|---|---|
|
Manufacturer |
Weite |
|
Model Number |
WT1206-025 |
|
Hold Current |
0.25A |
|
Trip Current |
0.50A |
|
Maximum Voltage |
16.00VDC |
|
Maximum Fault Current |
100.00A |
|
Typical Power Dissipation |
0.60W |
|
Maximum Time to Trip |
0.08s at 8A |
|
Initial Resistance (min) |
0.40Ω |
|
Post-Trip Resistance (max) |
2.40Ω |
|
Operating Temperature |
-40°C to +85°C |
|
Datasheet |
|
|
Certification |
Dimensions & Marking & Foot Print:
| Parameter | Value |
|---|---|
| A | 3.00mm – 3.40mm |
| B | 1.40mm – 1.80mm |
| C | 0.65mm – 1.15mm |
| D | 0.25mm – 0.75mm |
| E | 0.10mm |
| Marking | XF |
Applications:
- Protection for USB ports (USB 2.0, 3.0, OTG).
- Protection for low-power devices, including sensors and cameras.
- Ideal for small electronic applications, including handheld devices.
- Suitable for overcurrent protection in PC motherboards and peripherals.
