Resettable Fuses PTC 16V 350mA WT-1206-035 SMD
| Parameter | Value |
|---|---|
| Manufacturer | Weite |
| Type | SMD PTC Fuse |
| Model Number | WT-1206-035 |
| Datasheet | WT-1206-035 |
3.00 EGP
Buy NowResettable Fuses PTC 16V 350mA WT-1206-035 SMD
The WT1206-035 is a surface-mount PPTC resettable fuse engineered to protect electronic circuits from overcurrent events. It features a hold current of 350mA, meaning it can carry up to 350mA without tripping, and a trip current of 700mA, at which it transitions to a high-resistance state to limit current flow. The device supports a maximum voltage of 16VDC and can interrupt fault currents up to 100A, making it suitable for low-power applications requiring reliable protection.
Features:
- Compact 1206 package saves board space.
- RoHS compliant and lead-free.
- Halogen-free.
- Fast response to fault currents.
- Symmetrical design for easy integration.
Specifications:
|
Parameter |
Value |
|---|---|
|
Manufacturer |
Weite |
|
Model Number |
WT1206-035 |
|
Hold Current |
0.35A |
|
Trip Current |
0.70A |
|
Maximum Voltage |
16.00VDC |
|
Maximum Fault Current |
100.00A |
|
Typical Power Dissipation |
0.60W |
|
Maximum Time to Trip |
0.10s at 8.00A |
|
Initial Resistance (min) |
0.30Ω |
|
Post-Trip Resistance (max) |
1.20Ω |
|
Operating Temperature |
-40°C to +85°C |

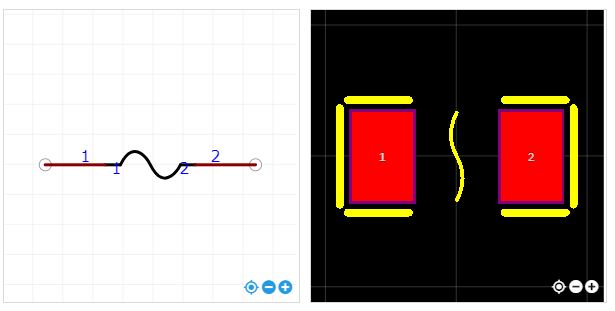

Dimension & FOOT Print:
| Dimension | Value (mm) |
|---|---|
| A | 3.00 – 3.40 |
| B | 1.40 – 1.80 |
| C | 0.35 – 0.85 |
| D | 0.25 – 0.75 |
Applications:
- Protection for USB ports (USB 2.0, 3.0, OTG).
- Protection for low-power electronic devices, such as cameras and sensors.
- Ideal for use in power supply circuits and electronic equipment.
- Suitable for small devices requiring automatic reset after overcurrent conditions.
