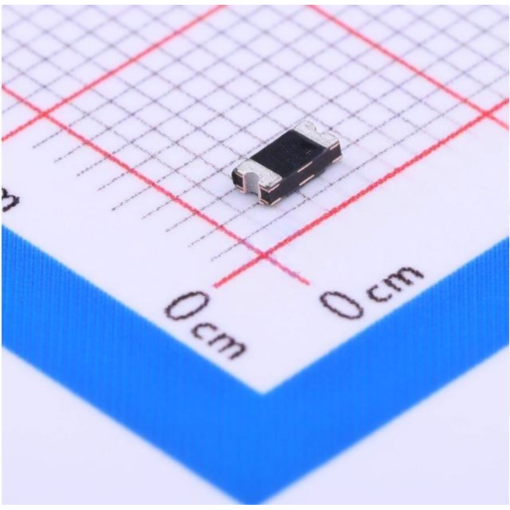

Resettable Fuses PTC 6V 750mA WT-1206-075 SMD
| Parameter | Value |
|---|---|
| Manufacture Type | Weite Fuse |
| Model Number | WT-1206-075 |
| Type | Resettable Fuse PTC |
| Datasheet | WT-1206-075 |
3.00 EGP
Buy NowResettable Fuses PTC 6V 750mA WT-1206-075 SMD
The WT1206-075 6V 750mA Resettable Fuse PTC – SMD is a surface-mount resettable fuse designed to provide overcurrent protection for sensitive electronic components. This device is ideal for applications requiring reliable, automatic resetting after a fault condition has been cleared. Its surface-mount technology (SMD) allows it to be compact, conserving valuable board space while maintaining superior performance.
Features:
- Compact 1206 package saves board space.
- RoHS compliant and lead-free.
- Halogen-free.
- Fast response to fault currents.
- Symmetrical design for easy integration.
Specifications:
| Parameter | Value |
|---|---|
| Manufacture Type | Weite Fuse |
| Model Number | WT-1206-075 |
| Rated Voltage | 6VDC |
| Rated Current | 750mA |
| I-Hold | 0.75A |
| I-Trip | 1.50A |
| Vmax | 6VDC |
| Imax | 100A |
| Pd Typ | 0.20W |
| R0 Min | 0.9Ω |
| R1 Max | 0.40Ω |
| Operating Temp. | -40°C to 85°C |
Dimensions & Foot Print:
| Parameter | Value |
|---|---|
| minimum Length (A) | 3.00 mm |
| minimum Width (B) | 1.40 mm |
| minimum Height (C) | 1.80 mm |
| minimum Pad Length (D) | 0.25 mm |
| minimum Pad Width (E) | 0.75 mm |
Applications:
- USB port protection for USB 2.0, 3.0, and OTG.
- Protection for HDMI 1.4 sources.
- PDAs and digital cameras.
- Game console port protection.
- PC motherboards and plug-and-play protection.
Documents:
| Document Type | Link |
|---|---|
| Datasheet | WT-1206-075 |
| Certifications | RoHS |
