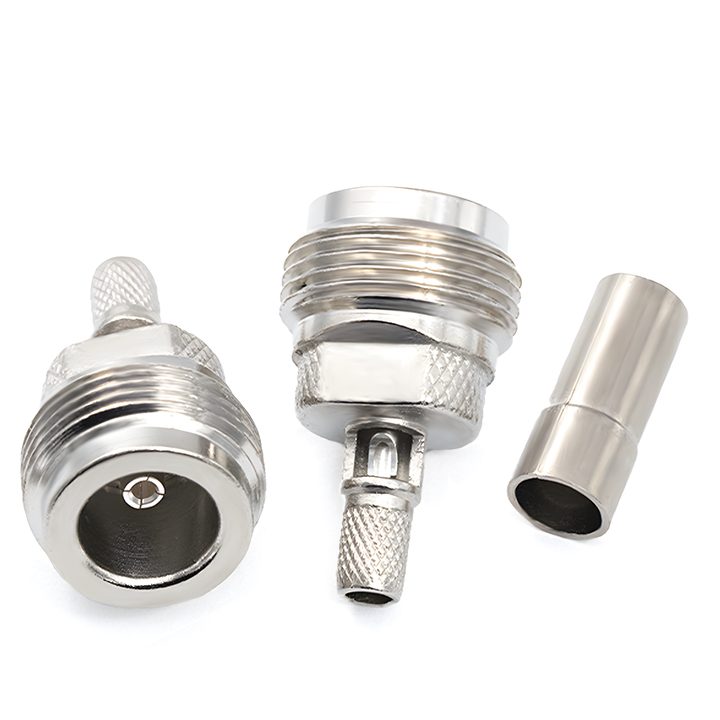

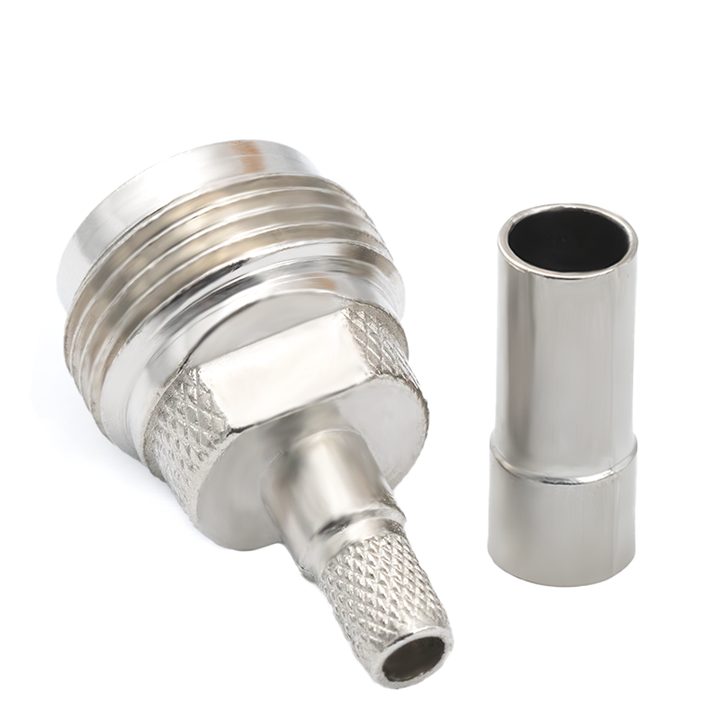

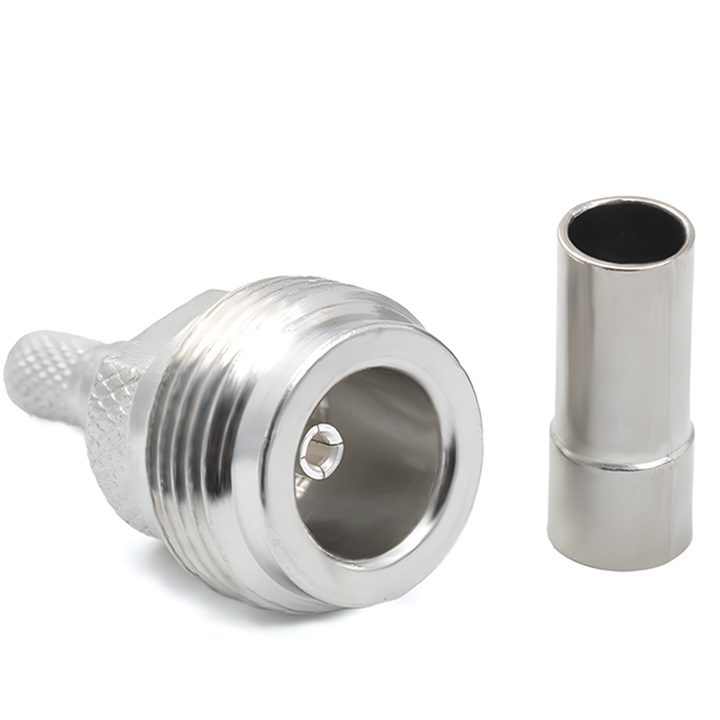

RF N-Type Connector N-C-K3 Pre-installed Pin Straight Crimp Female Jack 50 Ohm For Cable RG58/RG402/LMR195
The RF N-Type Connector N-C-K3 is a high-performance, 50 Ohm impedance connector engineered for reliable RF connections across a wide range of applications. This straight crimp female jack features a pre-installed pin, simplifying the assembly process by eliminating the need for separate pin crimping or soldering. Designed to meet industry standards, it is compatible with coaxial cables such as RG-8, RG-213, RG-225, or LMR-400, making it an excellent choice for professionals in telecommunications, broadcasting, and testing environments. The connector’s robust construction and threaded coupling mechanism ensure secure and stable connections, even in demanding conditions.
Features
- Connector Type: N-Type female jack, ensuring compatibility with standard N-Type male connectors.
- Impedance: 50 Ohm, ideal for RF systems requiring low signal loss.
- Connection Type: Straight crimp design for secure and efficient cable termination.
- Pre-installed Pin.
- Bulkhead Mounting.
Specifications
| Specification | Details |
|---|---|
| Frequency Range | DC to 11 GHz, suitable for high-frequency RF applications, with precision versions potentially up to 18 GHz |
| VSWR | <1.3, ensuring minimal signal reflection |
| Insertion Loss | <0.1 dB, for efficient signal transmission |
| Operating Temperature | -40°C to +85°C, suitable for various environmental conditions |
| Cable Compatibility | Likely supports RG-8, RG-213, RG-225, LMR-400, and similar coaxial cables |
| Contact Termination | Crimp, with pre-installed center contact |
| Insulator Material | PTFE |
Applications
- Wireless Communication Systems
- Antenna Connections
- Test and Measurement Equipment
- Broadcast Systems
- Military and Aerospace
